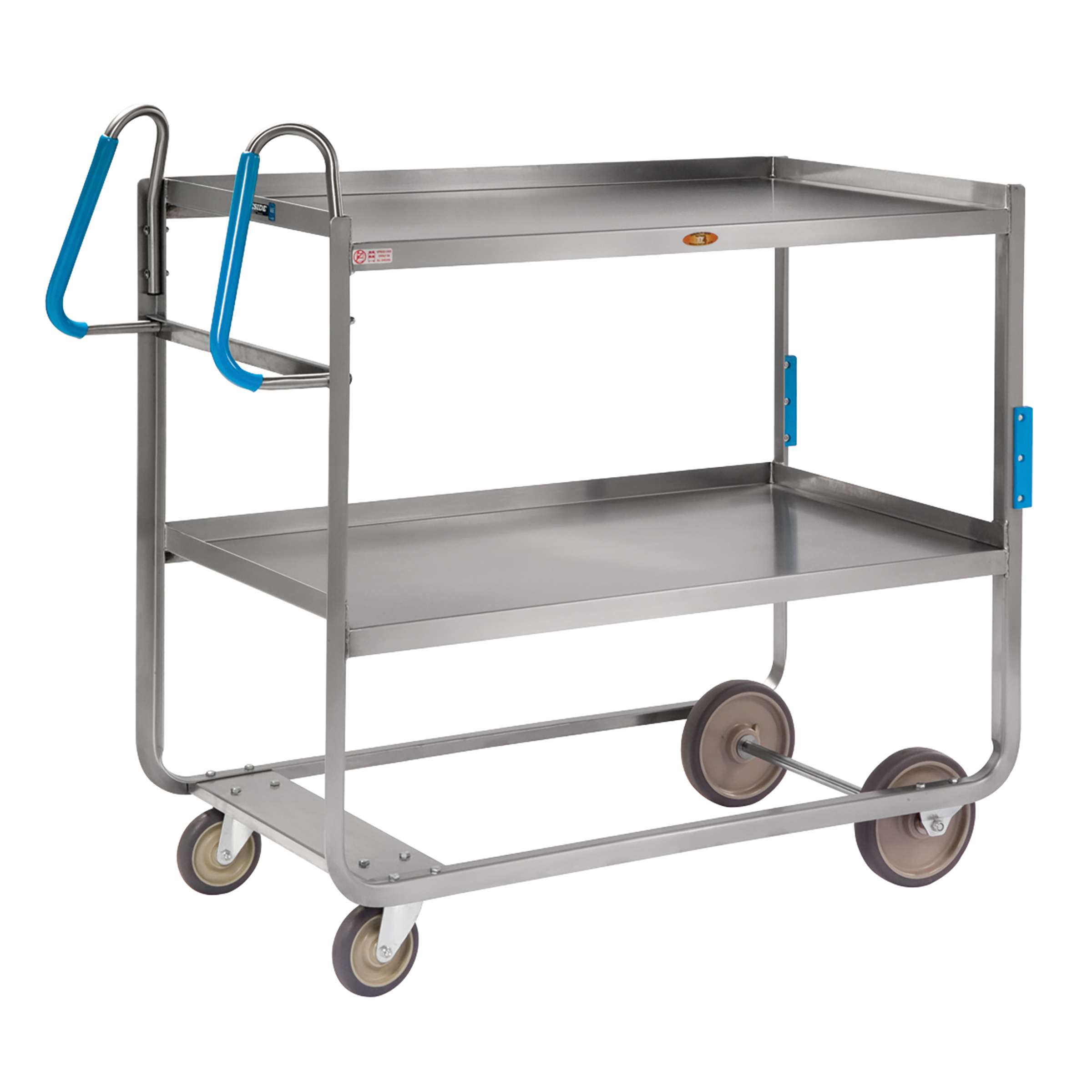

This NSF certified cart with vertical handles features a safety zone designed to accommodate the human body during loading and unloading.
Ergo-One System Utility Carts by Lakeside Manufacturing were designed to reduce injuries caused by improper pushing, lifting and loading. The Lakeside 7140 Ergo-One System Utility Cart with (2) shelves measuring 24" x 42" has a weight capacity of 1000-Lb. This ergonomic utility cart's vertical handle with comfortable grip ensures an operator's wrists are in the correct position for pushing and steering. This Lakeside cart's “Safety Zone” shelves are the proper height for loading and unloading, top shelf is 40" (1016) from the floor and bottom shelf is 20” (508) from the floor. This utility cart's no-mark, extra load, cushion-tread wheels absorb impact, reducing vibration and strain. This cart on wheels' 14-gauge stainless steel shelves are reinforced for added strength, while its joints are fully welded to better withstand heavy loads and frequent use. This ergonomic utility cart's stainless steel is easy to clean and sanitize. Its leg bumpers protect walls and furniture. This model is NSF listed. Lakeside has the widest selection on the market and offers custom solutions. Industry leading ship times from Lakeside’s US factory. Made in the USA.
The SAFETY Zone:
Ergonomics is the term defining work methods and tools designed to accommodate the human body. Ergo-One System carts are designed to be “body friendly.” to help prevent injuries resulting from repetitive loading and unloading.
Ergo-One shelf heights are in the “safety zone” – the bottom shelf is 20" (508 mm) from the floor; the top shelf is 34-1/8" to 353/4" (867 mm) from the floor.
Current availability as soon as 9 business days

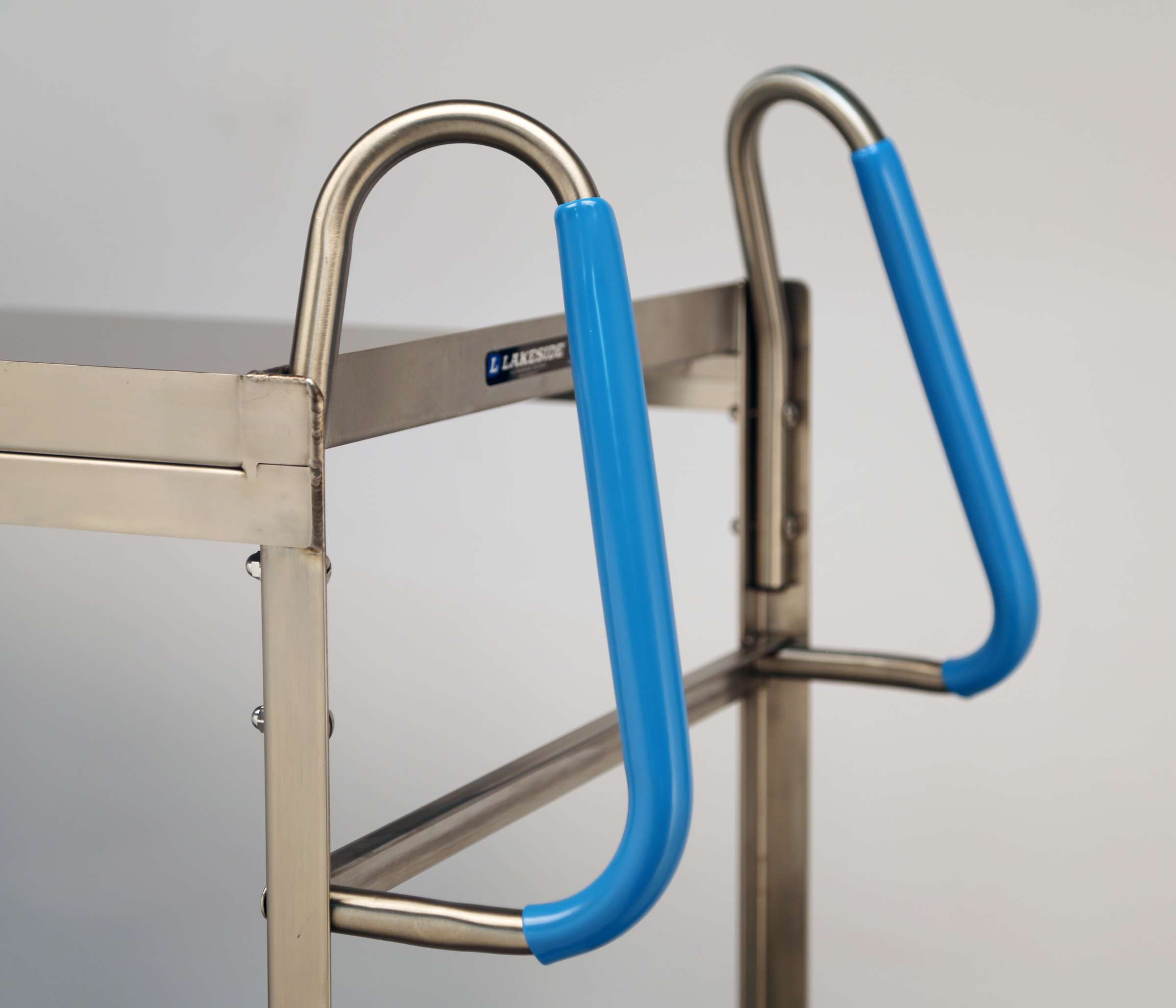

- Vertical handle with comfortable grip ensures wrists are in the correct position for pushing and steering.
- “Safety Zone” shelves are the proper height for loading and unloading, top shelf is 40" (1016) from the floor and bottom shelf is 20” (508) from the floor.

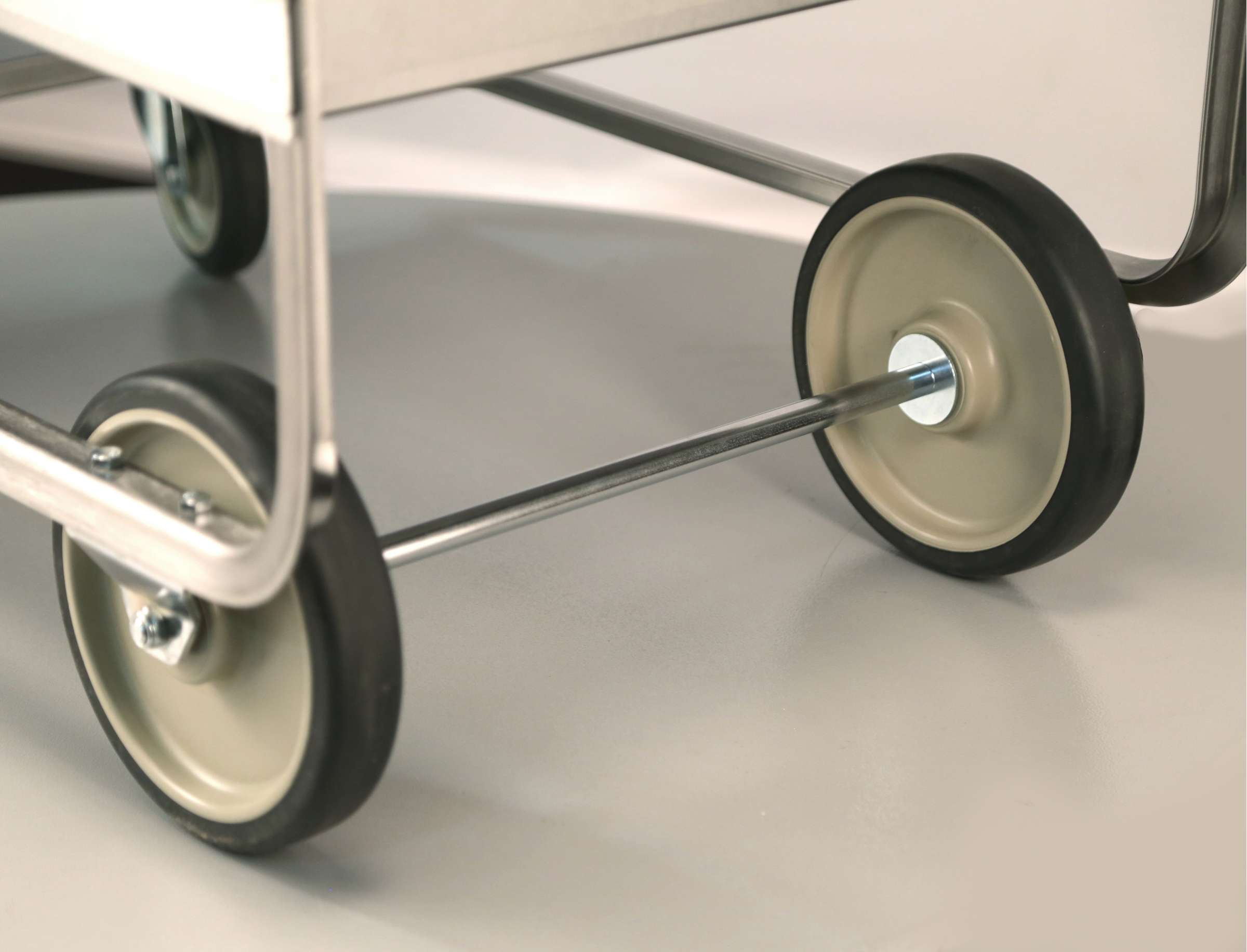

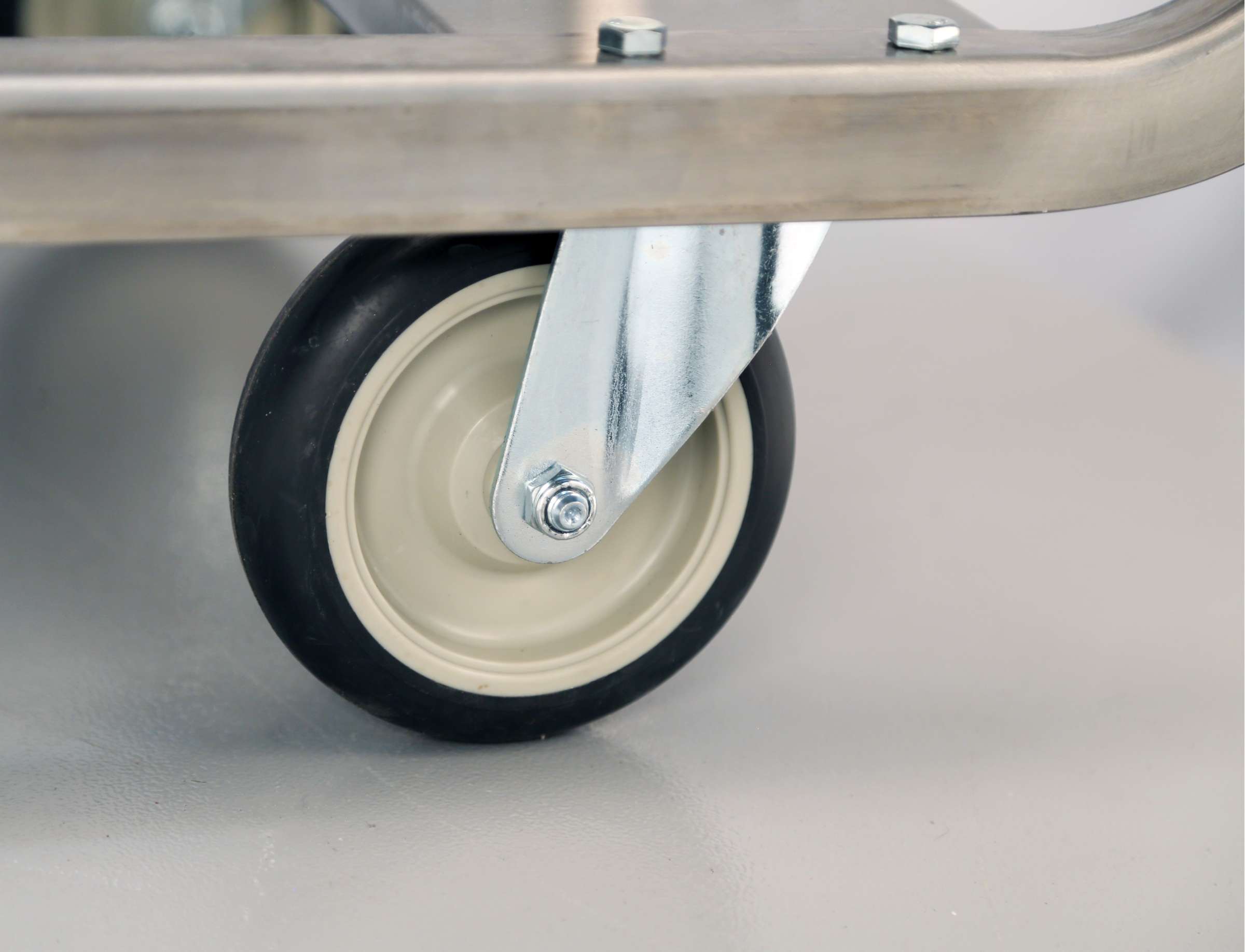

- No-mark, extra load, cushion-tread wheels absorb impact, reducing vibration and strain.

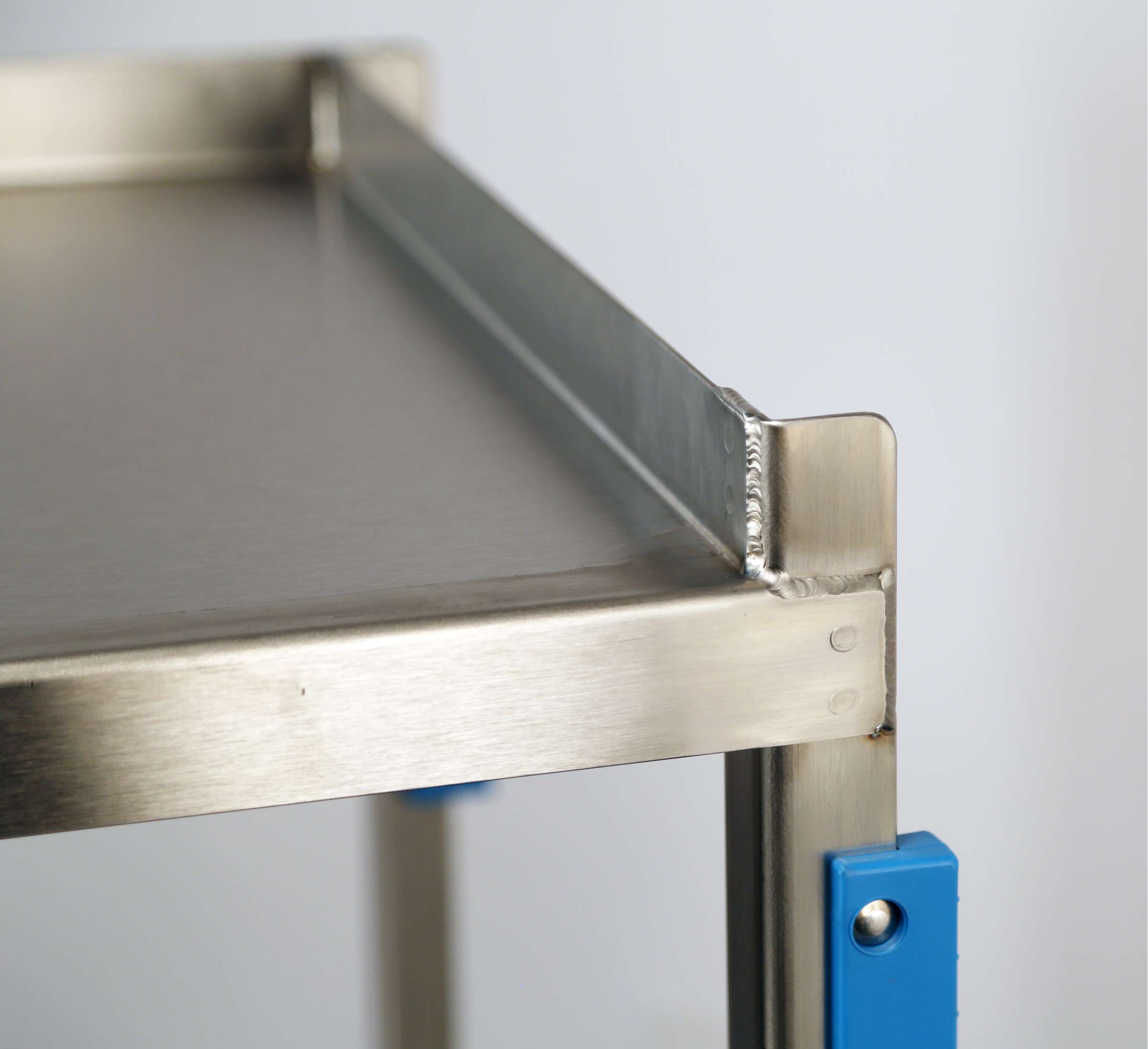

- All joints are fully welded to better withstand heavy loads and frequent use.
- 14-gauge stainless steel shelves reinforced for added strength.
- Stainless steel is easy to clean and sanitize.
- Leg bumpers protect walls and furniture.
Specifications
Collapse| Brand | Lakeside |
|---|---|
| Caster Size-Front (in) | 5 |
| Caster Size-Rear (in) | 8 |
| Caster Type | 2 Ea. Fixed, 2 Ea. Swivel, Extra-Load, No-Mark Polyurethane |
| Country of Origin | US |
| Ergonomic Design | Ergonomically Engineered |
| Frame Type | Formed Angle |
| Item Dimensions (L x W x H) | 50.44 in x 24.63 in x 46.75 in |
| Material | Stainless Steel |
| NSF | Yes |
| Number of Shelves | 2 |
| Proposition 65 Warning | This product can expose you to wood dust and chemicals including chromium, which are known to the State of California to cause cancer. For more information, go to: www.P65Warnings.ca.gov. |
| Shelf Clearance (in) | 18.5 |
| Shelf Dimensions | 24 in x 42 in |
| Shipping Class | 125 |
| Shipping Dimensions | 50 × 45 × 49 in |
| Shipping Method | LTL |
| Shipping Weight | 164 lbs |
| Weight Capacity (lbs) | 1000 |
Product Specification: Unit shall be of fully welded stainless steel construction with an overall carrying capacity of 1000 pounds. Legs and frame shall be of U-frame design, eliminating the need for corner reinforcements. Leg/frame shall be .120 x 1" x 1" angle stainless steel. Shelves shall be of 14-gauge stainless steel and shall be continuously TIG welded to vertical leg frames. Shelves shall be reinforced front and back with 18-gauge angle welded to the shelf underside. Bottom shelf shall be positioned no closer than 20" (508 mm)from the floor surface, and top shelf shall be positioned no higher than 40" (1016 mm) from the floor surface. Push handles shall be of ergonomic vertical design and shall feature 8" (203 mm) range grip height. Unit shall have two each 5" (127 mm) diameter extra-load swivel casters with 1-1/4" wide non-marking polyurethane wheels and two each 8" diameter extra-load wheels mounted to a fixed axle. Swivel casters shall be plate type and shall be bolted to an 18-gauge 5" wide stainless steel cross member with a galvanized reinforcement. Unit shall have two each 6" (152 mm) vertical bumpers riveted to front legs. Unit shall be NSF listed.
Durability Index
Collapse| Durability Index | |||||
| Maximum Weight | 300lbs / 135KG | 500lbs / 230KG | 700lbs / 320KG | 1000lbs / 450KG | 1500lbs / 680KG |
| Weight Visualization | 75 plates | 150 plates | 250 plates | 100 12oz. cans | 30 cases of wine |
| Vinyl Tile | |||||
| Indoor Concrete | |||||
| Ceramic Tile | |||||
| Carpet | |||||
| Outdoor Uneven | |||||
| Daily Hour Usage | Up to 3 | 4 to 9 | 9 to 12 | 10 to 18 | Up to 24 hours |
| Ideal Usage | Dining area bussing, set-up tray station, soiled dish station | Dining room bussing, set-up tray station, soiled dish station. | Receiving goods, moving loads for warewashing | Receiving dock and storage room, loading and moving dishes and flatware. | Casinos and correctional facilities, receiving dock and warehousing |
| Legs Steel Gauge | 20 | 16 | 11 | 11 | 11 or 14 |
| Shelf Steel Gauge | 22 | 20 | 18 | 14 | 14 |
| Caster Size | 3-1/2” to 4” | 4” to 5” | 5" to 8” | 5" to 8” | 6" to 8” |
