Lakeside 757

Lakeside 757 Deep Shelf Utility Cart, 2 Shelf: 21″ x 49″, Heavy-Duty 700-Lb. Capacity

Whether you need to secure a heavy load or prevent items from falling off, a Lakeside NSF certified deep shelf cart is your multi-purpose answer.

Deep Shelf Utility Carts by Lakeside Manufacturing are ideal for carrying large, heavy-duty loads in healthcare facilities with confidence. The Lakeside 757 Deep Shelf Utility Cart with (2) shelves measuring 21" x 49" has a weight capacity of 700-Lb. This Lakeside cart's 2-1/2" deep shelves hold items securely in place, while its reinforced hemmed front adds strength where the cart is most vulnerable to stress. This utility cart has an electronically all-welded construction for a stronger structure and easier to clean surface. Its rugged 18-gauge reinforced stainless steel shelves are easy to clean and sanitize. This medical utility cart on wheels has bumpers on its legs and handles to protect walls and furniture. This Lakeside utility cart provides secure, rugged transport for continuous moving of 700-Lb. heavy loads over various floor surfaces. This cart's angled “U” shaped steel frame provides extra strength needed for heavy duty jobs. Equipped with 5" swivel and 8" rigid cushion tread casters that offer smooth maneuverability in tight spaces. NSF listed models available. Customize your design with Lakeside cart experts. Superior lead times. Made in the USA.
8
Day
Current availability as soon as 8 business days

  • 2-1/2" deep shelves hold items securely in place.
  • Reinforced hemmed front adds strength where the cart is most vulnerable to stress.
  • Electronically all-welded construction for a stronger structure and easier to clean surface.
  • Rugged 18-gauge reinforced stainless steel shelves are easy to clean and sanitize.
  • Bumpers on legs and handles protect walls and furniture.
  • Secure, rugged transport for continuous moving of 700-Lb. heavy loads over various floor surfaces.
  • Angled “U” shaped steel frame provides extra strength needed for heavy duty jobs.

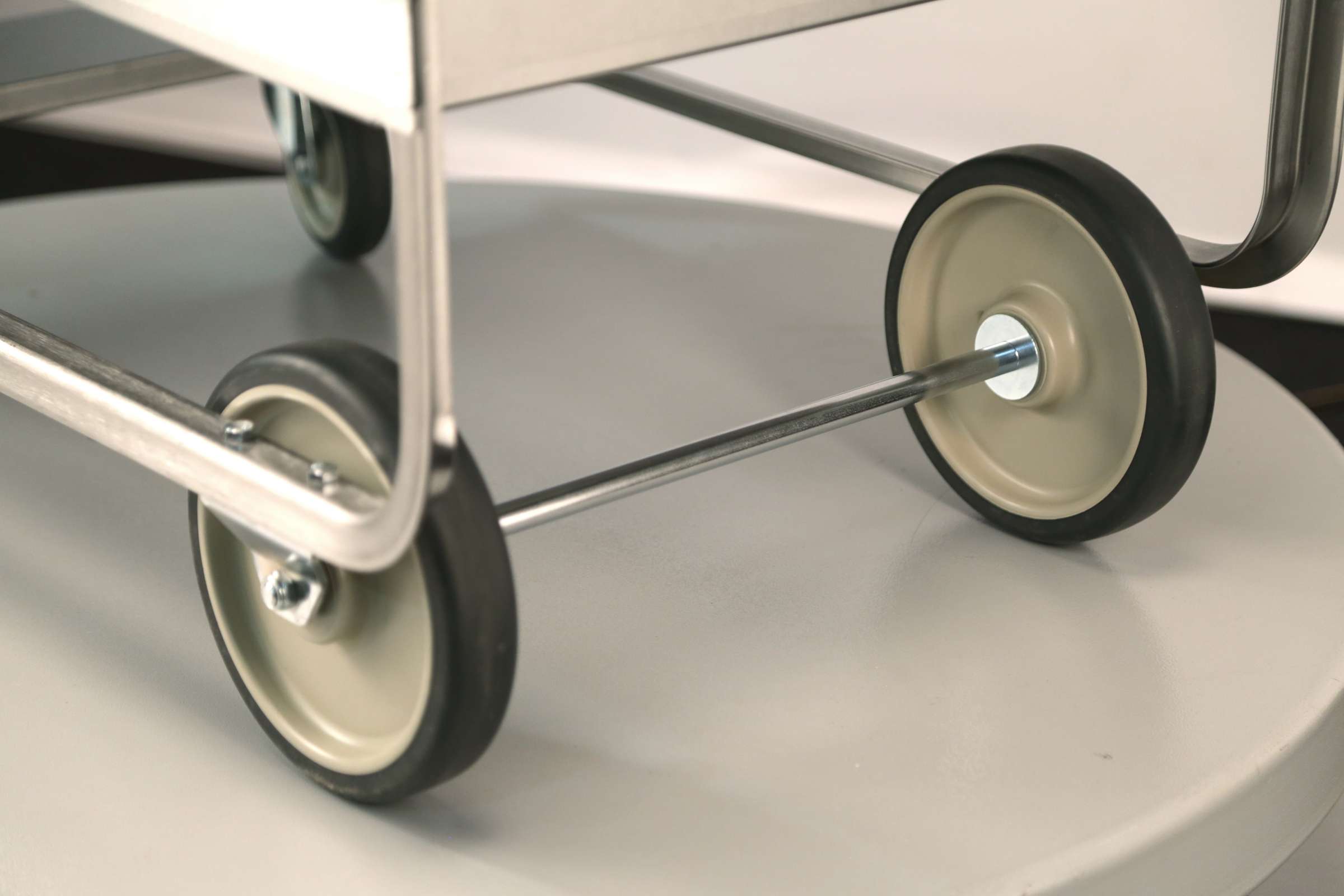

  • 5" swivel and 8" rigid cushion tread casters provide smooth maneuverability in tight spaces.
  • NSF listed models available.

Specifications

Collapse
Brand

Lakeside

Caster Size-Front (in)

8

Caster Size-Rear (in)

5

Caster Type

2 Ea. Fixed, 2 Ea. Swivel, No-Mark Polyurethane

Country of Origin

US

Ergonomic Design

Traditional

Frame Type

Formed Angle

Item Dimensions (L x W x H) 54 in x 22.25 in x 37.25 in
Material

Stainless Steel

NSF

No

Number of Shelves

2

Proposition 65 Warning This product can expose you to wood dust and chemicals including chromium, which are known to the State of California to cause cancer. For more information, go to: www.P65Warnings.ca.gov.
Shelf Clearance (in)

19.25

Shelf Dimensions

21 in x 49 in

Shipping Class 125
Shipping Dimensions 55.25 × 23.88 × 42.25 in
Shipping Method

LTL

Shipping Weight 90 lbs
Weight Capacity (lbs)

700

Product Specification: Unit shall be of fully welded stainless steel construction. Legs and frame shall be of U-frame design, eliminating the need for corner reinforcements. Leg/frame shall be .120 x 1” x 1” angle stainless steel. Shelves shall be of 18-gauge stainless steel and shall be welded to vertical leg frames. Shelves shall be double hemmed on all four edges for extra rigidity. Both shelves shall have 2½” upturned edges on all four sides to prevent items from rolling off. Unit shall have two each 5” diameter extra-load swivel casters with 1-1/4” wide non-marking polyurethane wheels, and two each 8” diameter extra-load wheels mounted to a fixed axle. Swivel casters shall be plate type and shall be bolted to an 18-gauge 5” wide stainless steel cross member with a galvanized reinforcement. Unit shall have push handle made of 18 gauge 1” O.D. stainless steel tubing. Handle mounting brackets shall be welded to vertical leg frame. Unit shall have two each bumpers mounted to handle ends and two each 6” vertical bumpers riveted to front legs.

Durability Index

Collapse
Durability Index





Maximum Weight300lbs / 135KG500lbs / 230KG700lbs / 320KG1000lbs / 450KG1500lbs / 680KG
Weight Visualization75 plates150 plates250 plates100 12oz. cans30 cases of wine
Vinyl Tile
Indoor Concrete
Ceramic Tile
Carpet
Outdoor Uneven
Daily Hour UsageUp to 34 to 99 to 1210 to 18Up to 24 hours
Ideal UsageDining area bussing, set-up tray station, soiled dish stationDining room bussing, set-up tray station, soiled dish station.Receiving goods, moving loads for warewashingReceiving dock and storage room, loading and moving dishes and flatware.Casinos and correctional facilities, receiving dock and warehousing
Legs Steel Gauge2016111111 or 14
Shelf Steel Gauge2220181414
Caster Size3-1/2” to 4”4” to 5”5" to 8”5" to 8”6" to 8”

Options & Accessories

Collapse

Standard products are available in a wide variety of common caster and bumper configurations or commercial grade vinyl and laminate finishes. These options along with accessories are listed below. Please contact us if you would like to further modify or customize a product to meet your needs.

Available Finish Options

Stainless Steel

Custom

Collapse

Choose from a wide selection of proven product designs that can also be modified or customized to meet specific applications. Our experienced customer service team is ready to help with a quote today!

Design Your Own
