This ergonomic cart with vertical handles features a safety zone designed to accommodate the human body during loading and unloading.
Ergo-One System Utility Carts by Lakeside Manufacturing are designed to reduce injuries caused by improper pushing, lifting and loading by healthcare operators. The Lakeside 7030 Ergo-One System Utility Cart with (2) shelves measuring 21" x 49" has a weight capacity of 700-Lb. This ergonomic utility cart's vertical handle with comfortable grip ensures an operator's wrists are in the correct position for pushing and steering. This Lakeside cart's shelves are located within a “Safety Zone” that is the proper height for loading and unloading, bottom shelf is 20” (508) from the floor. This utility cart's no-mark, extra load, cushion-tread casters absorb impact, reducing vibration and strain. This medical utility cart's 18-gauge stainless steel shelves are reinforced for added strength, while its all-welded construction is durable for a stronger structure and easier-to-clean surface. This ergonomic utility cart's stainless steel is easy to clean and sanitize. Its leg bumpers protect walls and furniture. Largest selection on the market. Superior lead times. Made in the USA.
The SAFETY Zone:
Ergonomics is the term defining work methods and tools designed to accommodate the human body. Ergo-One System carts are designed to be “body friendly.” to help prevent injuries resulting from repetitive loading and unloading.
Ergo-One shelf heights are in the “safety zone” – the bottom shelf is 20" (508 mm) from the floor; the top shelf is 34-1/8" to 353/4" (867 mm) from the floor.
Current availability as soon as 8 business days

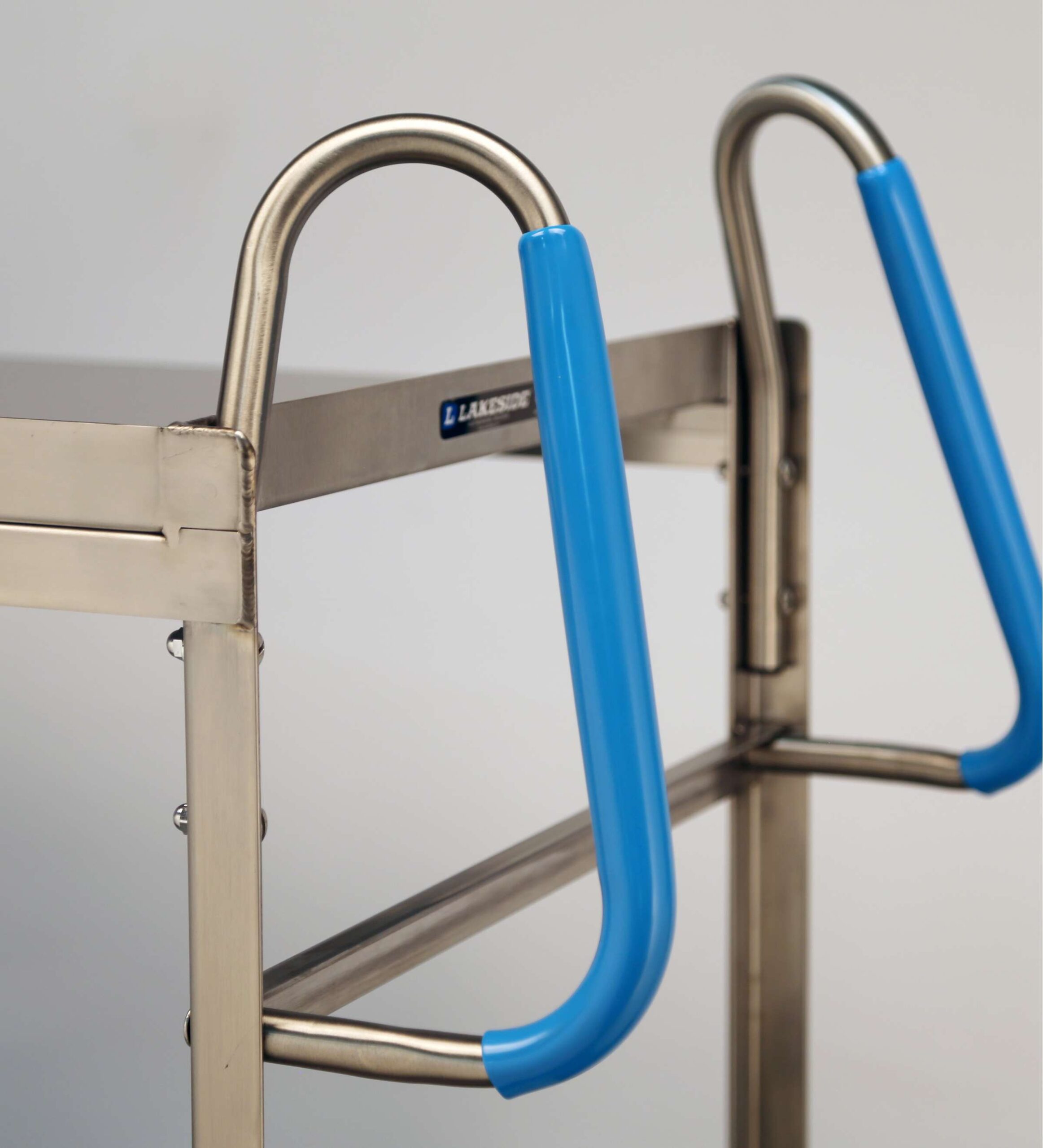

- Vertical handle with comfortable grip ensures wrists are in the correct position for pushing and steering.
- Shelves are located within a “Safety Zone” that is the proper height for loading and unloading, bottom shelf is 20” (508) from the floor.
- No-mark, extra load, cushion-tread casters absorb impact, reducing vibration and strain.
- 18-gauge stainless steel shelves reinforced for added strength.
- All-welded construction is durable for a stronger structure and easier-to-clean surface.
- Stainless steel is easy to clean and sanitize.

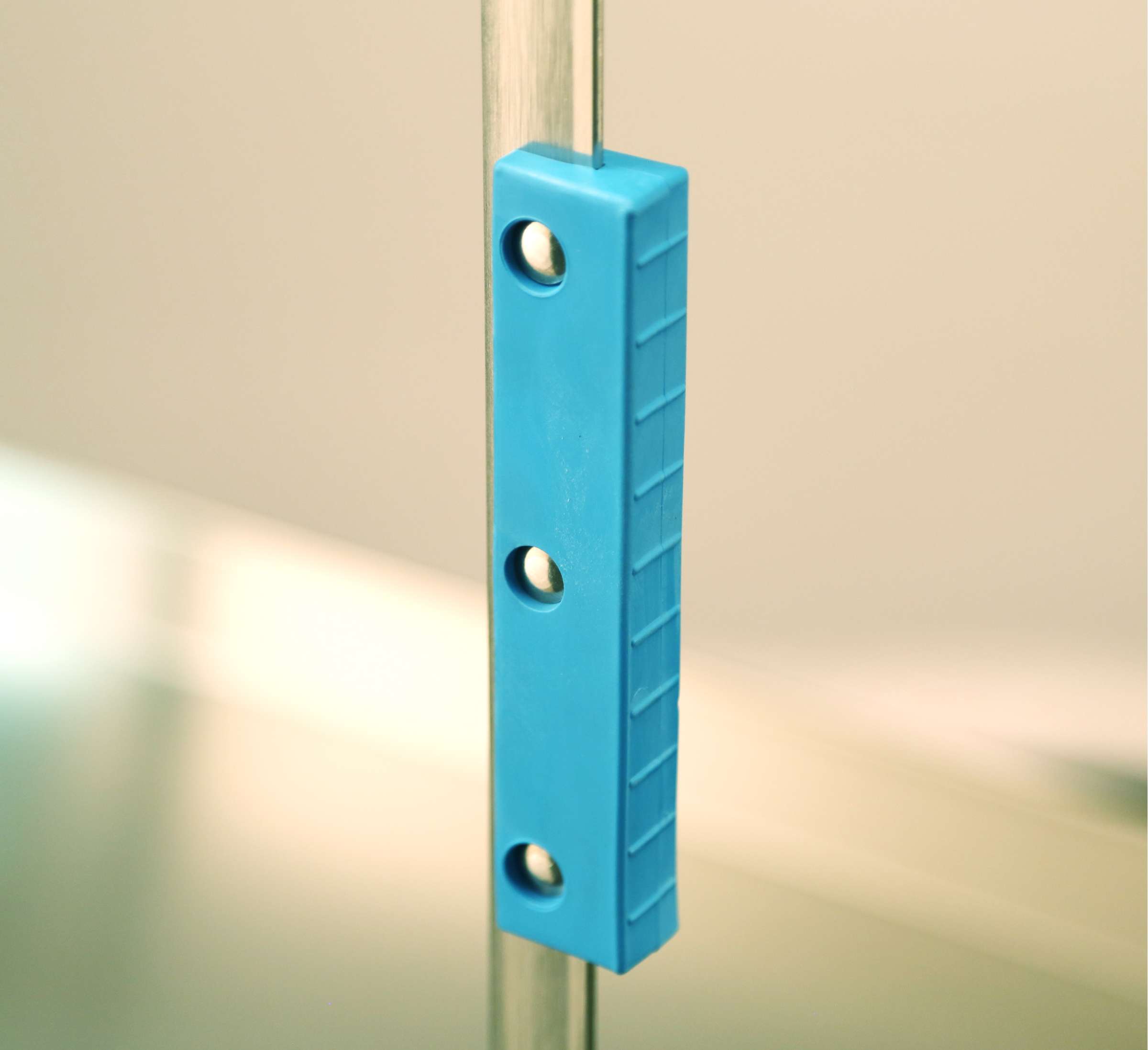

- Leg bumpers protect walls and furniture.
Specifications
Collapse| Brand | Lakeside |
|---|---|
| Caster Size-Front (in) | 5 |
| Caster Size-Rear (in) | 8 |
| Caster Type | 2 Ea. Fixed, 2 Ea. Swivel, No-Mark Polyurethane |
| Country of Origin | US |
| Ergonomic Design | Ergonomically Engineered |
| Frame Type | Welded Angle |
| Item Dimensions (L x W x H) | 57.19 in x 21.63 in x 46.75 in |
| Material | Stainless Steel |
| NSF | No |
| Number of Shelves | 2 |
| Proposition 65 Warning | This product can expose you to wood dust and chemicals including chromium, which are known to the State of California to cause cancer. For more information, go to: www.P65Warnings.ca.gov. |
| Shelf Clearance (in) | 18.5 |
| Shelf Dimensions | 21 in x 49 in |
| Shipping Class | 125 |
| Shipping Dimensions | 55.5 × 24 × 59 in |
| Shipping Method | LTL |
| Shipping Weight | 127 lbs |
| Weight Capacity (lbs) | 700 |
Product Specification: Unit shall be of fully welded stainless steel construction. Legs and frame shall be of .120 x 1” x 1” angle stainless steel and shall be joined with a continuous arc weld. Shelves shall be of 18-gauge stainless steel, and shall be welded to vertical leg frame. Shelves shall be double hemmed on all four edges for extra rigidity. Bottom shelf shall be positioned no closer than 20” (508 mm) from the floor surface, and top shelf shall be positioned no higher than 43" (1092 mm) from the floor surface. Push handles shall be of ergonomic vertical design and shall feature 8" range grip height. Unit shall have two each 5” (127 mm) diameter extra-load swivel casters with 1-1/4” (32 mm) wide non-marking cushion-tread wheels and two each 8” diameter extra-load cushion-treadwheels mounted to a fixed axle. Swivel casters shall be plate type and shall be bolted to an 18-gauge 5” wide stainless steel cross member with a galvanized reinforcement. Unit shall have two each 6” (152 mm) vertical bumpers riveted to front legs.
Durability Index
Collapse| Durability Index | |||||
| Maximum Weight | 300lbs / 135KG | 500lbs / 230KG | 700lbs / 320KG | 1000lbs / 450KG | 1500lbs / 680KG |
| Weight Visualization | 75 plates | 150 plates | 250 plates | 100 12oz. cans | 30 cases of wine |
| Vinyl Tile | |||||
| Indoor Concrete | |||||
| Ceramic Tile | |||||
| Carpet | |||||
| Outdoor Uneven | |||||
| Daily Hour Usage | Up to 3 | 4 to 9 | 9 to 12 | 10 to 18 | Up to 24 hours |
| Ideal Usage | Dining area bussing, set-up tray station, soiled dish station | Dining room bussing, set-up tray station, soiled dish station. | Receiving goods, moving loads for warewashing | Receiving dock and storage room, loading and moving dishes and flatware. | Casinos and correctional facilities, receiving dock and warehousing |
| Legs Steel Gauge | 20 | 16 | 11 | 11 | 11 or 14 |
| Shelf Steel Gauge | 22 | 20 | 18 | 14 | 14 |
| Caster Size | 3-1/2” to 4” | 4” to 5” | 5" to 8” | 5" to 8” | 6" to 8” |
