This ergonomic cart with vertical handles features a safety zone designed to accommodate the human body during loading and unloading.
Ergo-One System Utility Carts by Lakeside Manufacturing are designed to reduce injuries caused by improper pushing, lifting and loading by healthcare operators. The Lakeside 6600 Ergo-One System Utility Cart with (2) shelves measuring 15-1/2" x 24" has a weight capacity of 300-Lb. This medical utility cart's ergonomic 34-1/8" (867) top shelf provides strain-free loading, while its 20” (508) from the floor bottom shelf prevents lifting injuries. This utility cart's vertical handle ensures wrists are in the correct position for pushing and steering. This Lakeside cart's no-mark cushion-tread casters absorb impact, reducing vibration and strain. Its 5" (127) all-swivel casters provide ultimate maneuverability. This cart's 20-gauge stainless steel top shelf and 24-gauge stainless steel bottom shelf are reinforced for added strength, while its all-welded construction is durable for a stronger structure and easier-to-clean surface. This utility cart's stainless steel construction is easy to clean and sanitize. Its leg bumpers protect walls and furniture. Caster assembly required. Largest selection on the market. Superior lead times. Made in the USA.
The SAFETY Zone:
Ergonomics is the term defining work methods and tools designed to accommodate the human body. Ergo-One System carts are designed to be “body friendly.” to help prevent injuries resulting from repetitive loading and unloading.

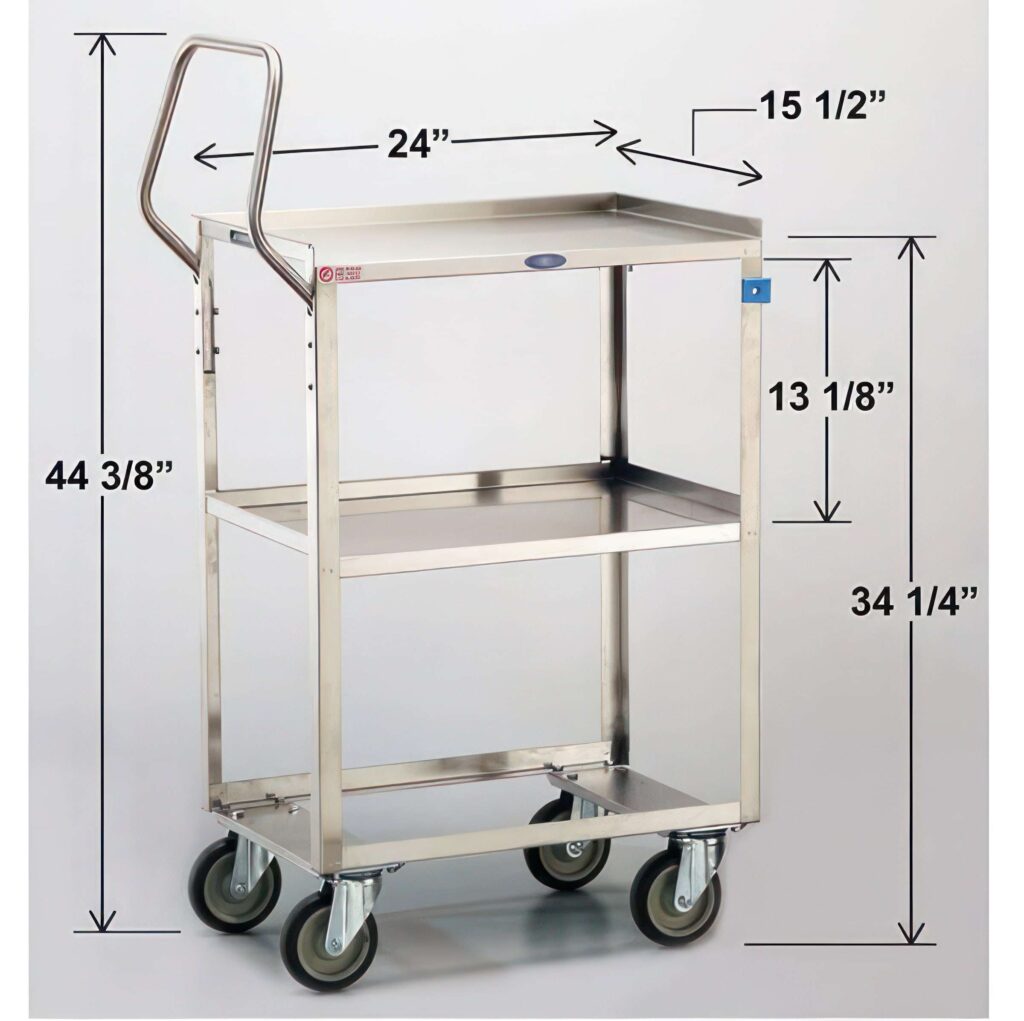

Ergo-One shelf heights are in the “safety zone” – the bottom shelf is 20" (508 mm) from the floor; the top shelf is 34-1/8" to 353/4" (867 mm) from the floor.
Current availability as soon as 4 business days
- Ergonomic top shelf height 34-1/8" (867) for strain-free loading, bottom shelf is 20” (508) from the floor to prevent lifting injuries.

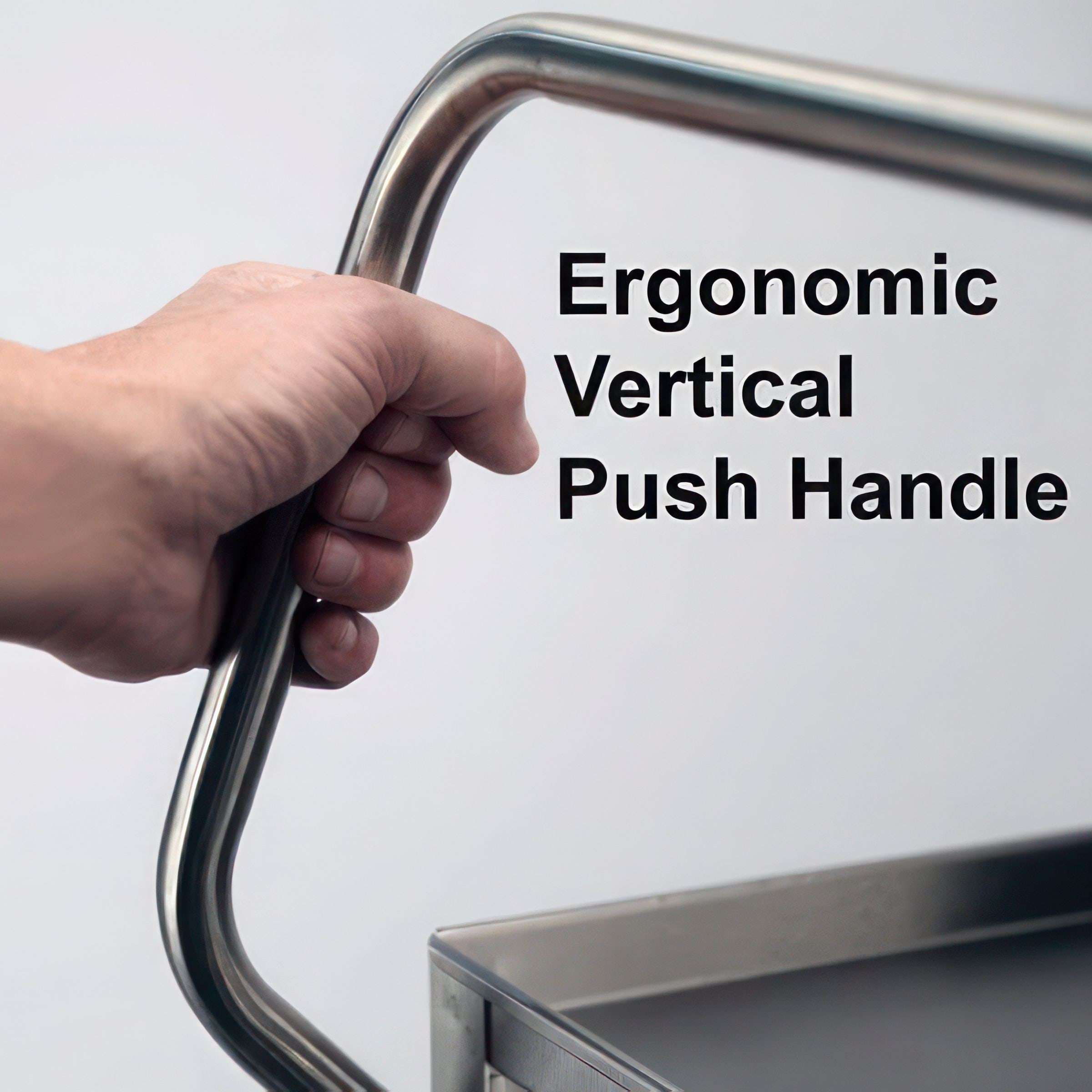

- Vertical handle ensures wrists are in the correct position for pushing and steering.

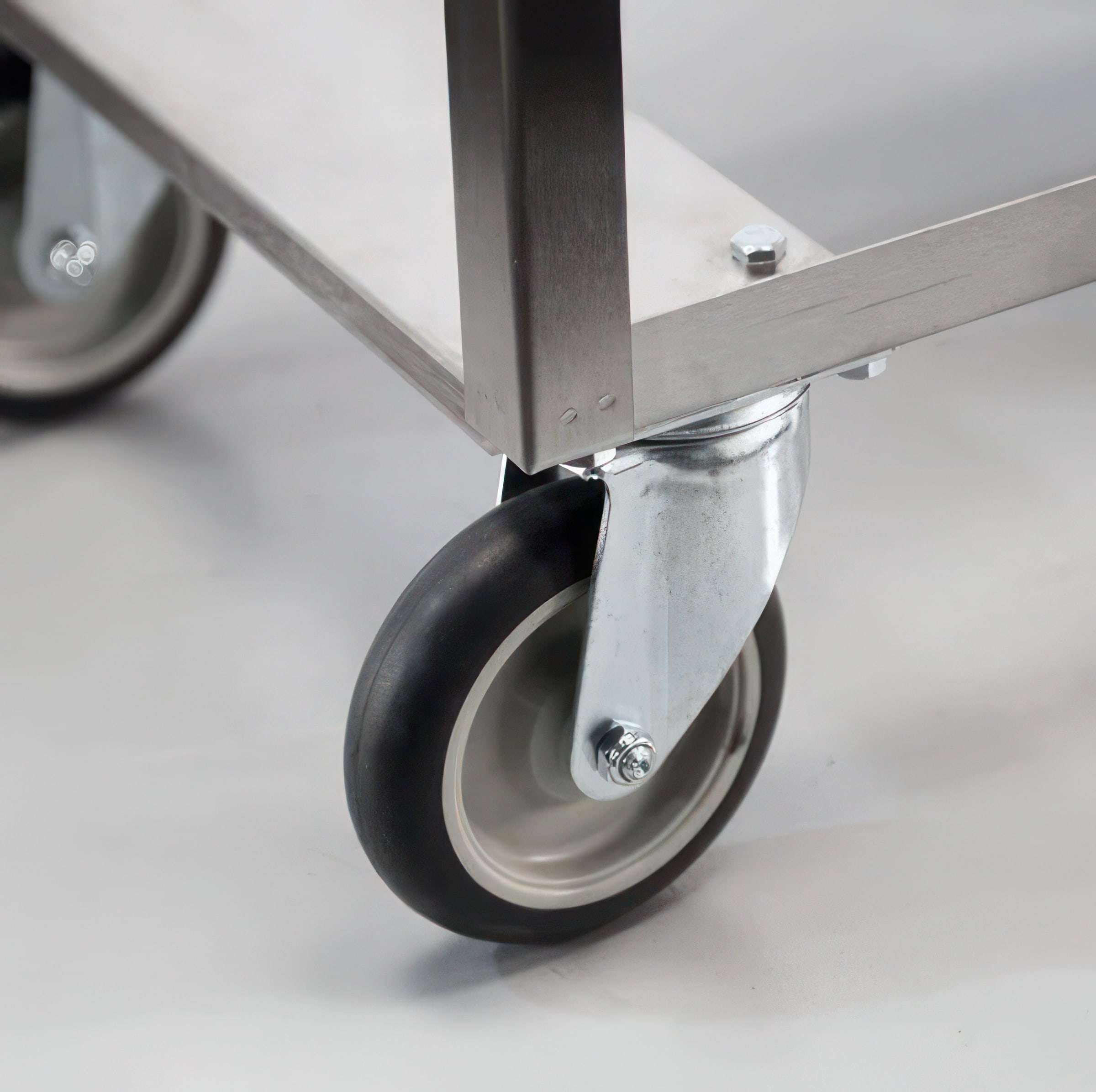

- No-mark cushion-tread casters absorb impact, reducing vibration and strain.
- 5" (127) all swivel casters provide ultimate maneuverability.
- 20-gauge stainless steel top shelf and 24-gauge stainless steel bottom shelf are reinforced for added strength.
- All-welded construction is durable for a stronger structure and easier-to-clean surface.
- Stainless steel is easy to clean and sanitize.
- Leg bumpers protect walls and furniture.
- Caster assembly required.
Specifications
CollapseBrand | Lakeside |
---|---|
Caster Size (in) | 4 |
Caster Type | All swivel |
Country of Origin | US |
Ergonomic Design | Ergonomically Engineered |
Frame Type | Angle Leg |
Item Dimensions (L x W x H) | 28 in x 16.5 in x 44.38 in |
Material | Stainless Steel |
NSF | No |
Number of Shelves | 2 |
Proposition 65 Warning | This product can expose you to wood dust and chemicals including chromium, which are known to the State of California to cause cancer. For more information, go to: www.P65Warnings.ca.gov. |
Shelf Clearance (in) | 13.125 |
Shelf Dimensions | 15.5 in x 24 in |
Shipping Class | 125 |
Shipping Dimensions | 29.5 × 18 × 35.5 in |
Shipping Method | UPS/FedEx Oversized |
Shipping Weight | 35 lbs |
Weight Capacity (lbs) | 300 |
Product Specification: Unit shall be Lakeside Model #6600 and shall have stainless steel unitized electronic welding to fasten shelves to frame with a weight capacity of 300-Lb. This cart shall have 2 ea. open shelves measuring 15-1/2" x 24". Top shelf shall be constructed of 20-gauge stainless steel. Bottom shelf shall be constructed of 24-gauge stainless steel. Shelves shall have 13-1/8" clearance and be reinforced with a hemmed front. Bottom shelf shall be 20” (508) from the floor surface, and top shelf shall be 34-1/8” (914) from the floor surface. All-welded angle legs shall be constructed of 16-gauge stainless steel. Unit shall have a stainless steel vertical push handle fastened to frame with 4 screws. Corner bumpers mounted to front legs. Four each 5" (127) double race, double-ball bearing, no-mark swivel casters shall be mounted to the dolly frame. Unit shall be listed as light duty. Made in the USA.
Durability Index
CollapseDurability Index | |||||
Maximum Weight | 300lbs / 135KG | 500lbs / 230KG | 700lbs / 320KG | 1000lbs / 450KG | 1500lbs / 680KG |
Weight Visualization | 75 plates | 150 plates | 250 plates | 100 12oz. cans | 30 cases of wine |
Vinyl Tile | |||||
Indoor Concrete | |||||
Ceramic Tile | |||||
Carpet | |||||
Outdoor Uneven | |||||
Daily Hour Usage | Up to 3 | 4 to 9 | 9 to 12 | 10 to 18 | Up to 24 hours |
Ideal Usage | Dining area bussing, set-up tray station, soiled dish station | Dining room bussing, set-up tray station, soiled dish station. | Receiving goods, moving loads for warewashing | Receiving dock and storage room, loading and moving dishes and flatware. | Casinos and correctional facilities, receiving dock and warehousing |
Legs Steel Gauge | 20 | 16 | 11 | 11 | 11 or 14 |
Shelf Steel Gauge | 22 | 20 | 18 | 14 | 14 |
Caster Size | 3-1/2” to 4” | 4” to 5” | 5" to 8” | 5" to 8” | 6" to 8” |
