Quickly deliver just the right number of meals with this durable cart.

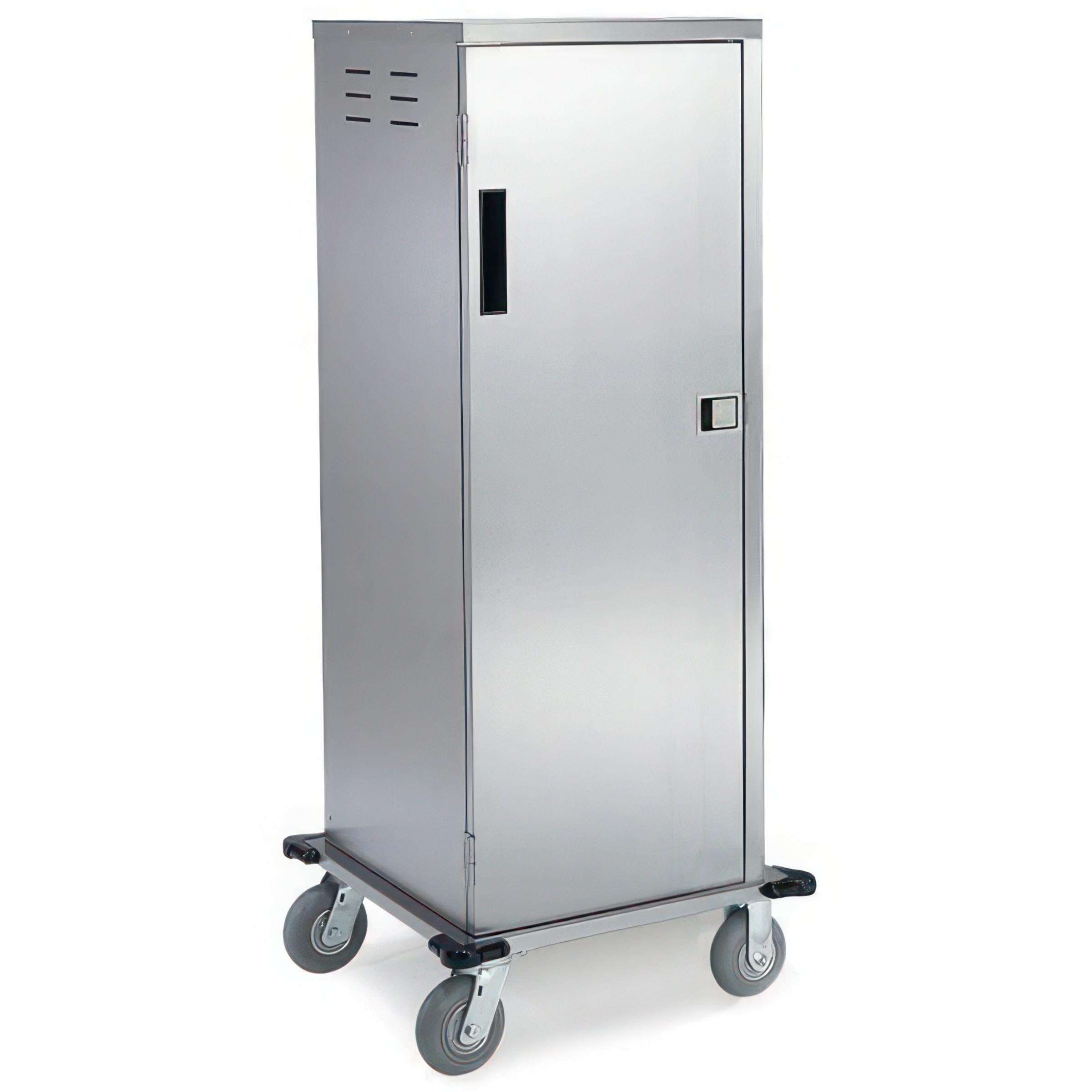

Elite Series Tray Delivery Carts by Lakeside Manufacturing quickly delivers just the right number of meals with this durable cart. The Lakeside 5710 is NSF with a (10) tray capacity. This cart has a stainless steel cart body and removable ladder-style ledge panels that are durable and easy to clean. The vented side panels avoid heat and condensation build-up inside the cabinet. This unit has wide spread, side mounted, and recessed handles on both ends which offer easy maneuverability. Accommodates both 14" x 18" and 15" x 20" size trays. Doors open 270° for unobstructed access and a compartment with a center floor drain for easy cleaning. The 5710 has (2) fixed and (2) swivel 6" (152) Lake-Glide casters guide the cart in a straight line, while making turns easier. Fastest in industry lead times from Lakeside’s factory in the USA.
Current availability as soon as 9 business days
- Stainless steel cart body and removable, ladder-style ledge panels are durable and easy to clean and sanitize.
- Vented side panels avoid heat and condensation build-up inside the cabinet.
- Wide spread, side mounted, recessed handles on both ends offer easy maneuverability.
- Accommodates both 14" x 18" and 15" x 20" size trays.
- Doors conveniently open 270° for unobstructed access.
- Compartment has a center floor drain for ease of cleaning.
- 2 fixed and 2 swivel 6" (152) Lake-Glide casters guide the cart in a straight line, while making turns easier.
Specifications
Collapse| Brand | Lakeside |
|---|---|
| Caster Size (in) | 6 |
| Caster Type | 2 Ea. Fixed, 2 Ea. Swivel |
| Country of Origin | US |
| Item Dimensions (L x W x H) | 32.5 in x 27 in x 63 in |
| Item Weight | 212 lbs |
| Ledge Spacing (in) | 5.25 |
| Number of Compartments | 1 |
| Proposition 65 Warning | This product can expose you to wood dust and chemicals including chromium, which are known to the State of California to cause cancer. For more information, go to: www.P65Warnings.ca.gov. |
| Shipping Class | 125 |
| Shipping Dimensions | 49 × 31 × 69.5 in |
| Shipping Method | LTL |
| Shipping Weight | 212 lbs |
| Tray Capacity | 10 |
| Trays Per Ledge | 1 |
Product Specification: Unit shall be of stainless steel welded and riveted construction to accommodate 14” x 18” (356 x 457 mm) or 15” x 20” (381 x 508 mm) trays. Material thickness shall be of 16 gauge for top and floor/base, 20 gauge for sides and back. Doors shall be of 20 gauge insulated double-pan design, and shall be mounted to unit frame with two each 3” (76 mm) heavy-duty stainless steel hinges. Hinges shall be welded to door and unit frame. Doors shall swing 270° to provide full access to tray compartments, and shall be easily removable by lifting off of hinges. Door latches shall be recessed paddle design. Tray ledges shall be 18 gauge stainless steel angle, welded to an 18 gauge stainless steel frame panel at 5¼” (133 mm) spacing. Ledge panels shall be shall accommodate both 14” x 18” or 15” x 20” trays (two trays per ledge), and shall be removable for easy cleaning. Tray compartments shall have vents on end panels and shall have perforated center floor drains. Unit base shall have 1¼” (32 mm) thick extruded PVC rounded bumpers mounted to corners. A 1” tubular push handle shall be welded to one end of the unit. Unit shall have four each extra-load plate type casters, two fixed and two swivel, mounted to a 14 gauge stainless steel dolly on unit base. Swivel casters shall have shielded ball bearing races and zerk filltings for lubrication of bearings. Caster wheels shall be 6” (152 mm) diameter with 2” wide, non-marking, rounded cushion tread. Unit shall be NSF listed.
