These quality carts are perfect for implementing a room service program in your community.

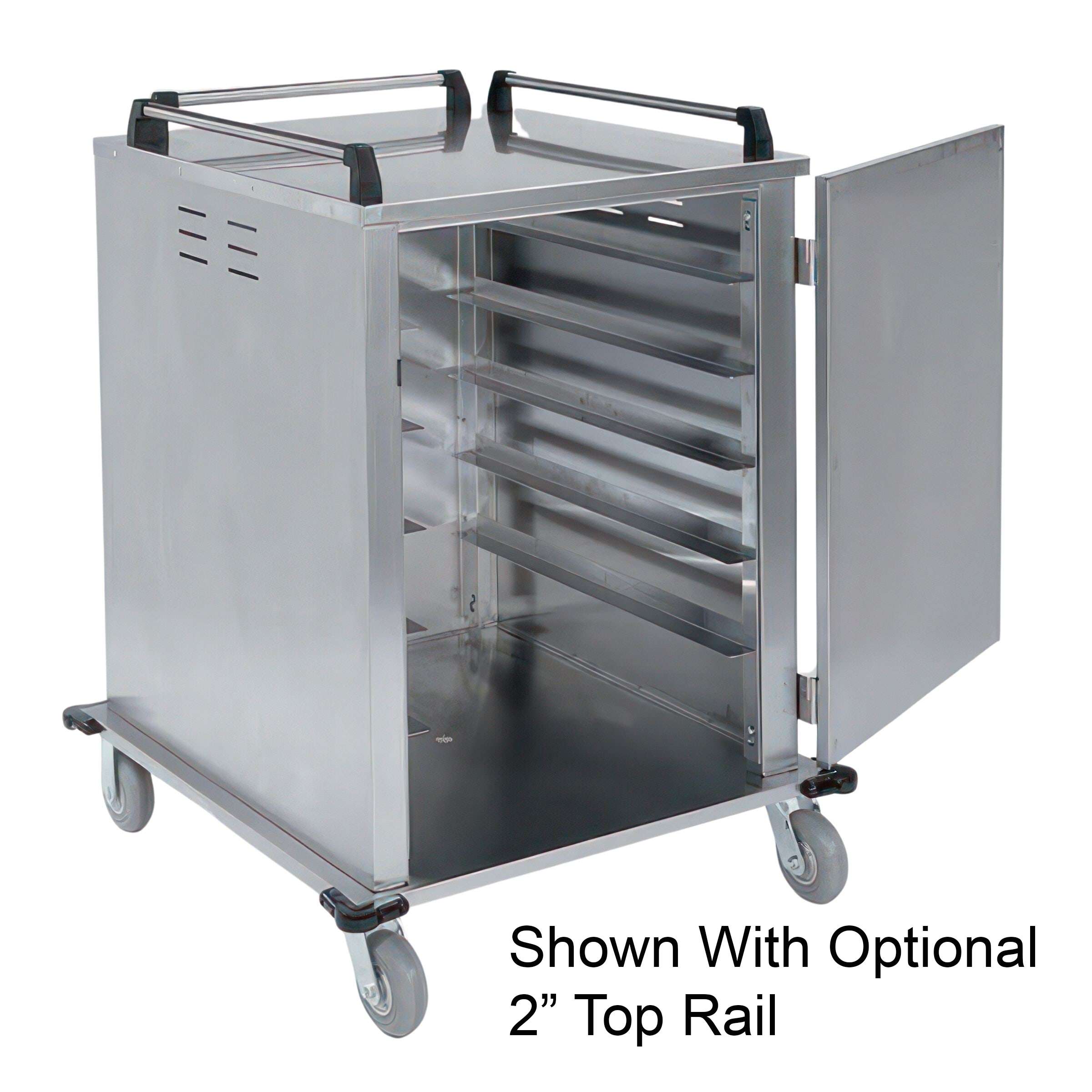

Elite Series Late Tray Delivery Carts by Lakeside Manufacturing are perfect for implementing a room service program in your community. The Lakeside 5510 is NSF and has a 12 tray capacity. This cart has a stainless steel construction and removable ladder style ledge panels are durable and easy to clean. The doors open 270 degrees for unobstructed access and has a long-life door latch with repeated opening/closing. The 5510 has a compartment with a center floor drain for ease of cleaning and a bottom clearance of 8.25" that can accommodate a tray set-up, supplies, beverages, and more. This cart has corner bumpers that protect walls, furnishings, and doors. Fastest in industry lead times from Lakeside’s factory in the USA.
Current availability as soon as 8 business days
- Stainless steel construction and removable ladder style ledge panels are durable and easy to clean.
- Long-life door latch withstands repeated opening/closing.
- Door conveniently open 270 degrees for obstructed access.
- Compartment has a center floor drain for ease of cleaning.
- Corner bumpers protect walls, furnishings, and doors.
- Bottom clearance of 8.25" that can accommodate a tray set-up, supplies, beverages, and more.
Specifications
Collapse| Brand | Lakeside |
|---|---|
| Caster Size (in) | 6 |
| Caster Type | 2 Ea. Fixed, 2 Ea. Swivel, No-Mark cushion tread |
| Country of Origin | US |
| Item Dimensions (L x W x H) | 36.75 in x 32.25 in x 48.75 in |
| Item Weight | 225 lbs |
| Ledge Spacing (in) | 6 |
| NSF | Yes |
| Number of Compartments | 1 |
| Proposition 65 Warning | This product can expose you to wood dust and chemicals including chromium, which are known to the State of California to cause cancer. For more information, go to: www.P65Warnings.ca.gov. |
| Shipping Class | 125 |
| Shipping Dimensions | 49 × 43 × 63 in |
| Shipping Method | LTL |
| Shipping Weight | 225 lbs |
| Tray Capacity | 12 |
| Trays Per Ledge | 2 |
Product Specification: Unit shall be of stainless steel welded andriveted construction to accommodate 14” x 18” or 15” x 20” trays. Material thickness shall be of 16 gauge for top and floor/base, 20 gauge for sides and back. Door shall be of 20 gauge insulated double-pan design, and shall be mounted to unit frame with two each 3” (76 mm) heavy-duty stainless steel hinges. Hinges shall be welded to door and unit frame. Door shall swing 270° to provide full access to tray compartment, and shall be easily removable by lifting off of hinges. Door latch shall be recessed paddle design. Tray ledges shall be 18 gauge stainless steel angle, welded to an 18 gauge stainless steel frame panel at 6” (152 mm) spacing. Ledge panels shall accommodate both 14” x 18” or 15” x 20” trays, and shall be removable for easy cleaning. Ledge clearance between compartment floor and bottom set of ledges shall be 8¼”. Tray compartment shall have vents on end panels and shall have perforated center floor drains. Unit base shall have 1¼” (32 mm) thick extruded PVC rounded bumpers mounted to corners. Unit shall have four each extra-load plate type casters, two fixed and two swivel, mounted to a 14 gauge stainless steel dolly on unit base. Swivel casters shall have shielded ball bearing races and zerk filltings for lubrication of bearings. Caster wheels shall be 6” (152 mm) diameter with 2” wide, non-marking, rounded cushion tread. Unit shall be NSF listed.
