Handler Series Carts with ergonomic vertical handles are the smart choice for reducing operator strain and maneuvering in confined spaces.
Handler Series Utility Carts by Lakeside Manufacturing have ergonomic storage and transport functionalities designed to minimize healthcare operator strain. The Lakeside 4722 Handler Series Utility Cart with (3) shelves measuring 18" x 27" has a weight capacity of 700-Lb. This medical utility cart's unique one-piece vertical handle offers more control for swiftly guiding the cart. This Lakeside cart's all-swivel casters provide tight turn handling for crowded kitchens and make it easier to navigate into storage area corners. Its no-mark, extra load, cushion-tread wheels absorb impact, reducing vibration and strain. This utility cart's angled “u”-shaped frame design provides superior structural strength for larger loads. This Lakeside cart's stainless steel construction is easy to clean and sanitize, while its leg bumpers protect walls and furniture. Customize your design with Lakeside cart experts. Superior lead times. Made in the USA.
Current availability as soon as 4 business days

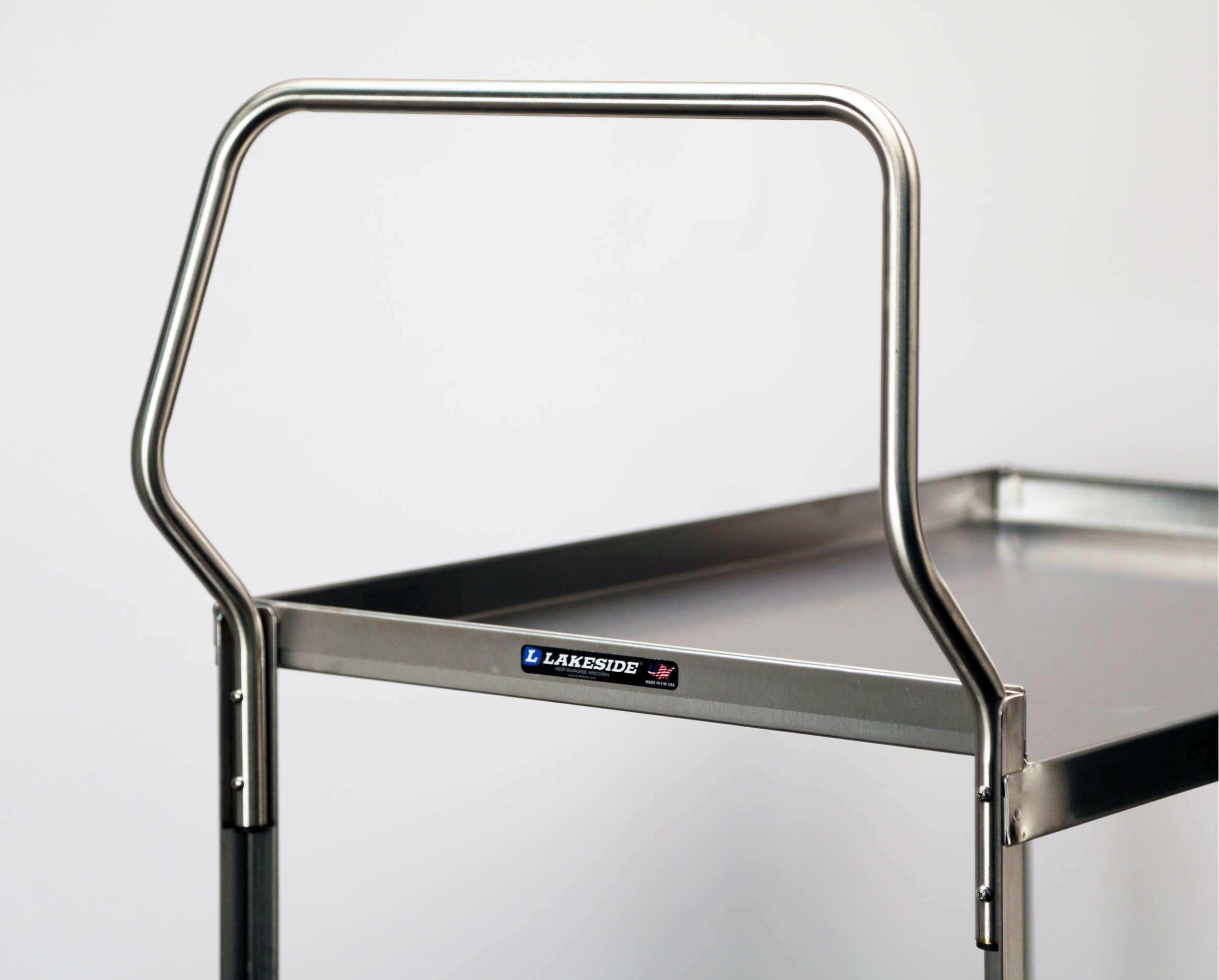

- Unique one-piece vertical handle offers more control for swiftly guiding the cart.

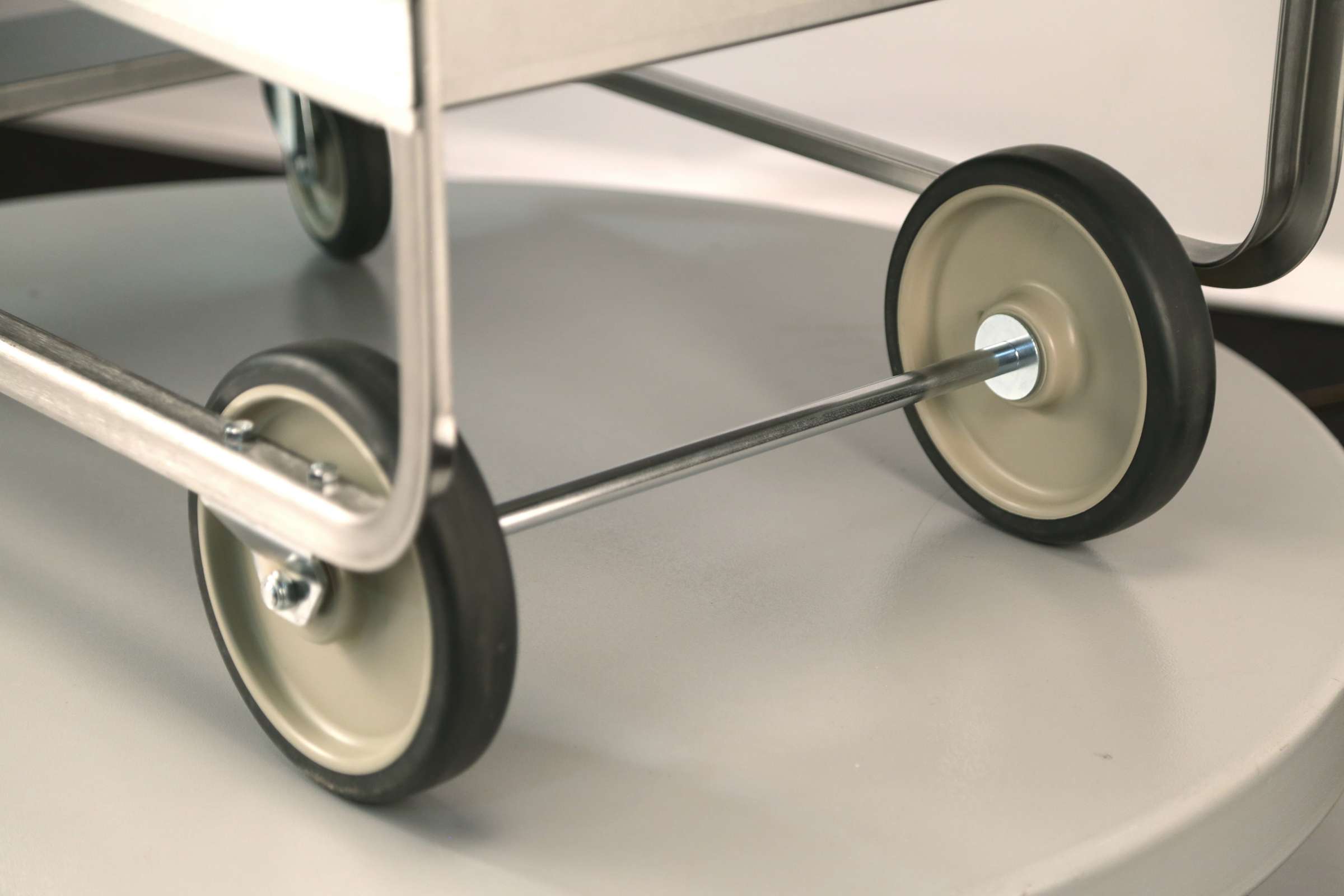

- All-swivel casters provide tight turn handling for crowded kitchens and make it easier to navigate into storage area corners.
- Angled “u”-shaped frame design provides superior structural strength for larger loads.
- No-mark, extra load, cushion-tread wheels absorb impact, reducing vibration and strain.
- Stainless steel is easy to clean and sanitize.
- Leg bumpers protect walls and furniture.
Specifications
Collapse| Brand | Lakeside |
|---|---|
| Caster Size (in) | 5 |
| Caster Type | All swivel |
| Country of Origin | US |
| Ergonomic Design | Ergonomically Engineered |
| Frame Type | Formed Angle |
| Item Dimensions (L x W x H) | 32.63 in x 19.38 in x 46.5 in |
| Material | Stainless Steel |
| NSF | No |
| Number of Shelves | 3 |
| Proposition 65 Warning | This product can expose you to wood dust and chemicals including chromium, which are known to the State of California to cause cancer. For more information, go to: www.P65Warnings.ca.gov. |
| Shelf Clearance (in) | 10 |
| Shelf Dimensions | 18 in x 27 in |
| Shipping Class | 125 |
| Shipping Dimensions | 35.5 × 22.5 × 39 in |
| Shipping Method | UPS/FedEx Oversized |
| Shipping Weight | 64 lbs |
| Weight Capacity (lbs) | 700 |
Product Specification: Unit shall be Lakeside Model #4722 and shall have stainless steel unitized electronic welding to fasten shelves to frame with a weight capacity of 700-Lb. This cart shall have 3 ea. open shelves measuring 18" x 27" constructed of 18-gauge stainless steel. Shelves shall have 10" clearance and be reinforced with a hemmed front. All-welded angle legs shall be constructed of 11-gauge stainless steel. Legs shall be spot welded to stainless steel runners. Unit shall have a stainless steel vertical push handle fastened to frame with 4 screws. Corner bumpers shall be mounted to front legs. Bottom corners shall be rounded. Four each 5" double race, double-ball bearing swivel casters shall be mounted to the dolly frame. Unit shall be listed as heavy-duty. Made in the USA.
Durability Index
Collapse| Durability Index | |||||
| Maximum Weight | 300lbs / 135KG | 500lbs / 230KG | 700lbs / 320KG | 1000lbs / 450KG | 1500lbs / 680KG |
| Weight Visualization | 75 plates | 150 plates | 250 plates | 100 12oz. cans | 30 cases of wine |
| Vinyl Tile | |||||
| Indoor Concrete | |||||
| Ceramic Tile | |||||
| Carpet | |||||
| Outdoor Uneven | |||||
| Daily Hour Usage | Up to 3 | 4 to 9 | 9 to 12 | 10 to 18 | Up to 24 hours |
| Ideal Usage | Dining area bussing, set-up tray station, soiled dish station | Dining room bussing, set-up tray station, soiled dish station. | Receiving goods, moving loads for warewashing | Receiving dock and storage room, loading and moving dishes and flatware. | Casinos and correctional facilities, receiving dock and warehousing |
| Legs Steel Gauge | 20 | 16 | 11 | 11 | 11 or 14 |
| Shelf Steel Gauge | 22 | 20 | 18 | 14 | 14 |
| Caster Size | 3-1/2” to 4” | 4” to 5” | 5" to 8” | 5" to 8” | 6" to 8” |
