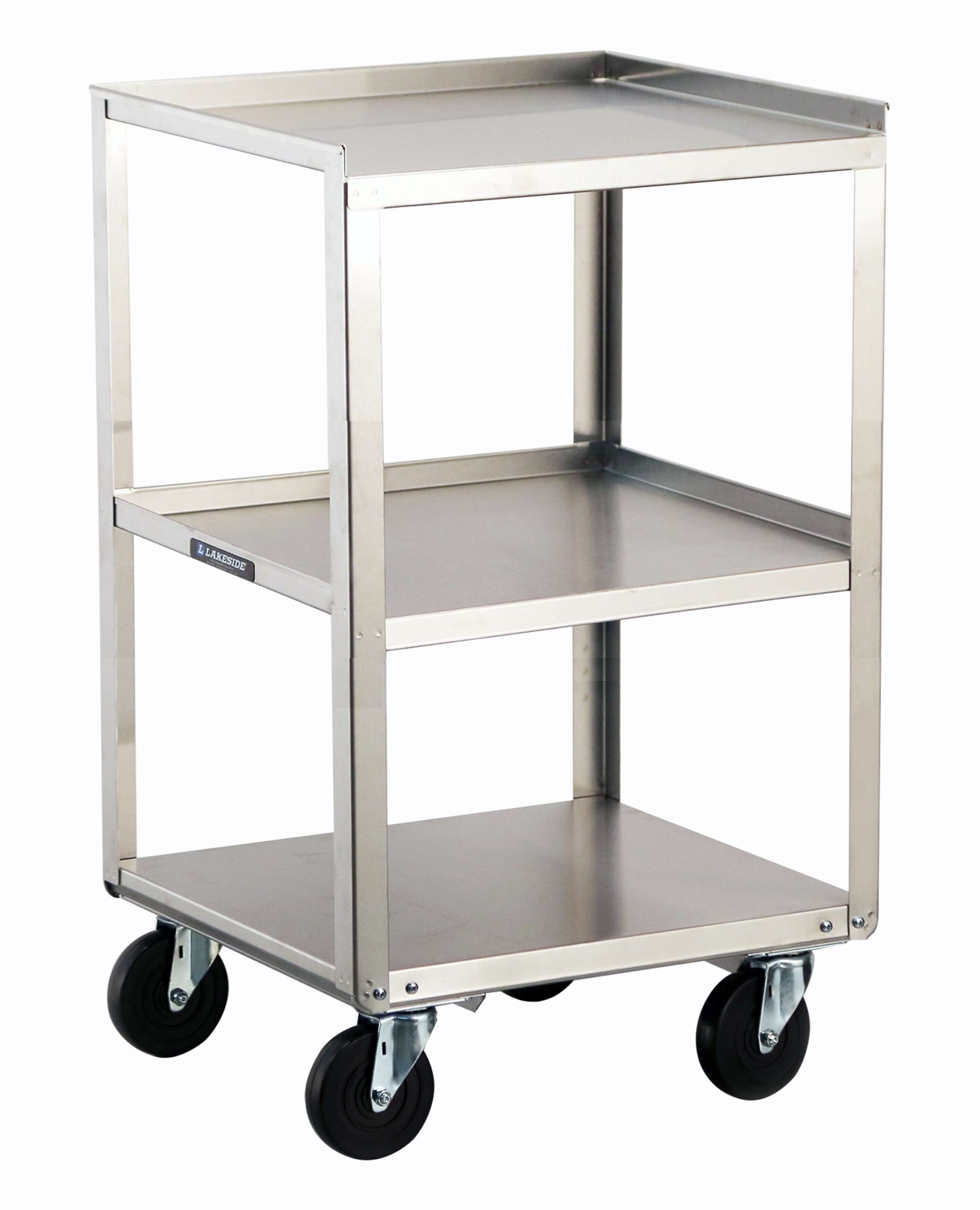

A mobile stand that easily moves medical equipment and supplies wherever it is needed.
Equipment Stands by Lakeside Manufacturing move and store medical equipment and supplies wherever it is needed. The Lakeside 469 Equipment Stand with (3) shelves measuring 16-3/4" x 18-3/4" has a weight capacity of 500-Lb. This Lakeside cart has one drawer and three shelves that provide ample storage space for medical supplies and equipment. This medical equipment stand's sound deadening panels restrict vibrations and reduce noise during transport, while its stainless steel construction is durable for carrying heavy equipment and easy to clean and sanitize. This cart's all-swivel casters allow for smooth and quiet maneuverability in tight spaces. Optional locks available for one and two drawer models. Optional brakes available for two casters. Largest selection of carts on the market. Superior lead times. Made in the USA.
Current availability as soon as 4 business days
- One drawer and three shelves provide ample storage space for medical supplies and equipment.
- Sound deadening panels restrict vibrations and reduce noise.
- Stainless steel is durable for carrying heavy equipment and easy to clean and sanitize.

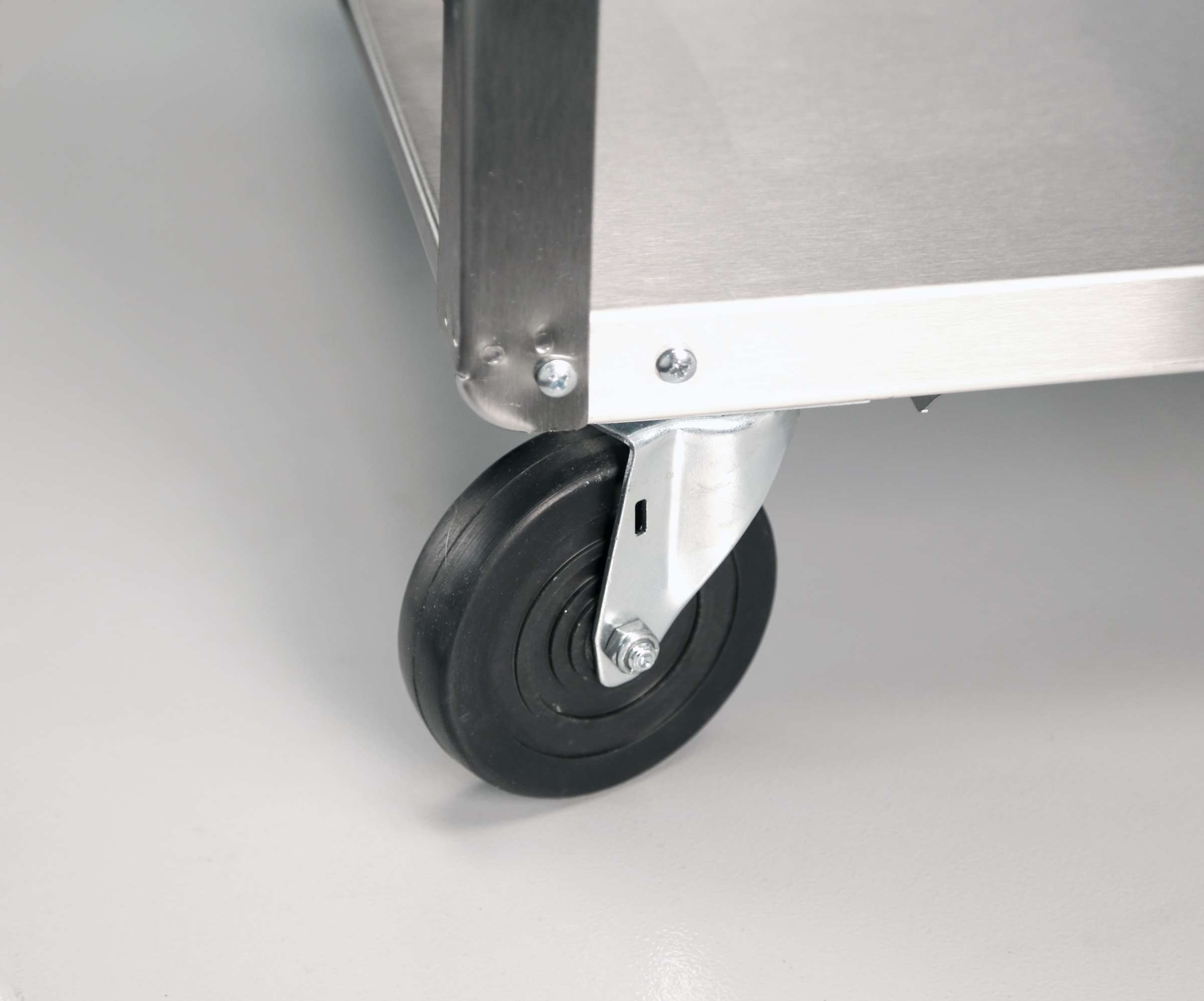

- All-swivel casters allow for smooth and quiet maneuverability in tight spaces.
- Optional locks available for one and two drawer models.
Specifications
Collapse| Brand | Lakeside |
|---|---|
| Caster Size (in) | 4 |
| Caster Type | All swivel |
| Country of Origin | US |
| Ergonomic Design | Traditional |
| Frame Type | Angle Leg |

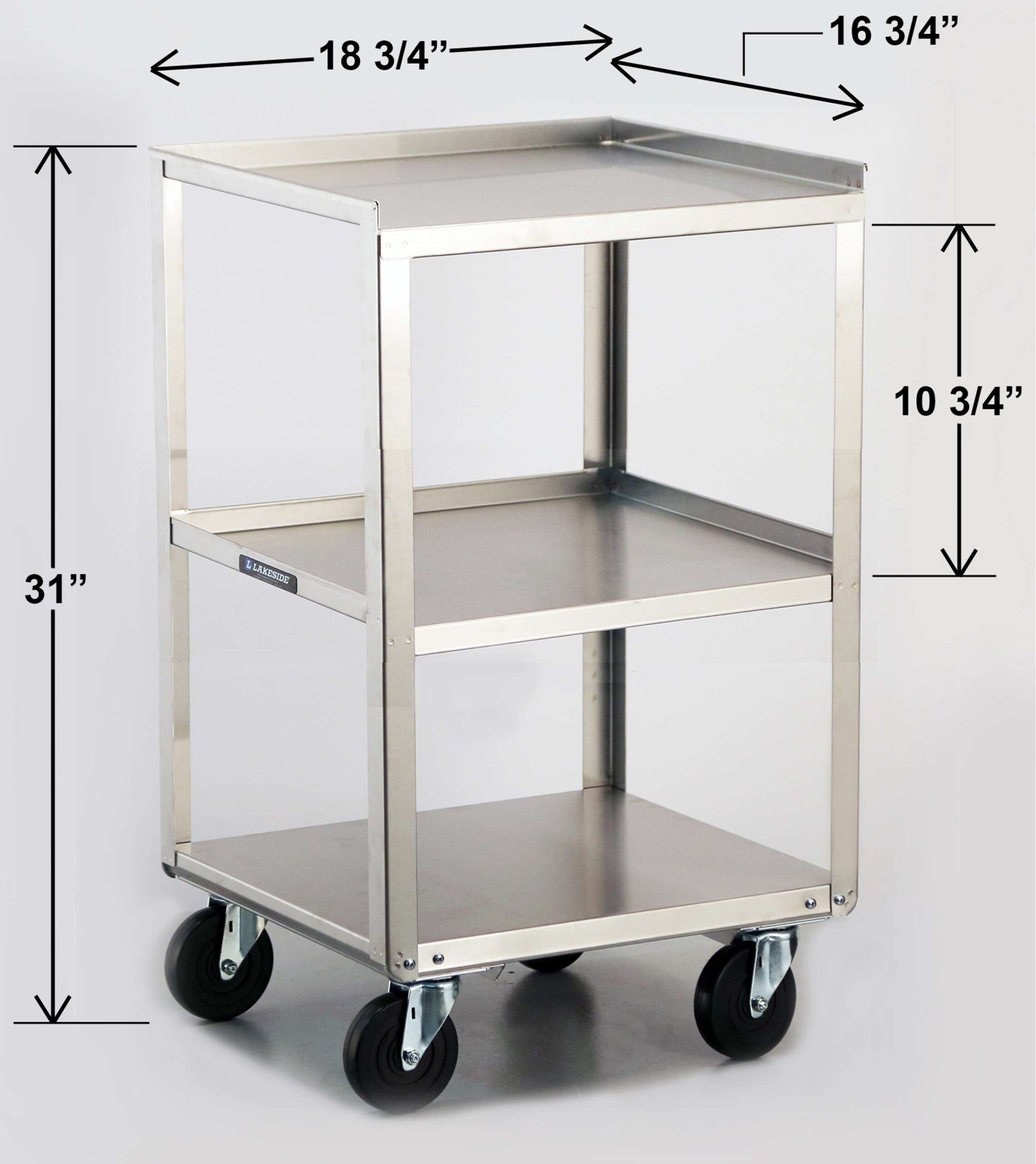

| Item Dimensions (L x W x H) | 18.75 in x 16.75 in x 31 in |
| Material | Stainless Steel |
| NSF | No |
| Number of Shelves | 3 |
| Proposition 65 Warning | This product can expose you to wood dust and chemicals including chromium, which are known to the State of California to cause cancer. For more information, go to: www.P65Warnings.ca.gov. |
| Shelf Clearance (in) | 10.75 |
| Shelf Dimensions | 16.75 in x 18.75 in |
| Shipping Class | 125 |
| Shipping Dimensions | 22 × 21.25 × 38.5 in |
| Shipping Method | UPS/FedEx |
| Shipping Weight | 33 lbs |
| Weight Capacity (lbs) | 500 |
Product Specification: Unit shall be Lakeside Model 469 and shall have stainless steel resistance spot welding to fasten shelves to frame with a weight capacity of 500-Lb. This cart shall have 3 ea. open shelves measuring 16-3/4” x 18-3/4”. Top and middle shelves shall be constructed of 20-gauge stainless steel and bottom shelf shall be constructed of 24-gauge stainless steel. Top and middle shelves shall have 3 edges up, 1 down. Shelves shall have 11” clearance and be reinforced with a hemmed front. All-welded angle legs shall be constructed of 16-gauge stainless steel. Unit shall have an independent galvanized steel dolly frame fastened to the bottom with 8 screws. Bottom corners shall be rounded. Four each 4” double race, double-ball bearing swivel casters shall be mounted to the dolly frame. Unit shall be listed as medium duty. Made in the USA.
Durability Index
Collapse| Durability Index | |||||
| Maximum Weight | 300lbs / 135KG | 500lbs / 230KG | 700lbs / 320KG | 1000lbs / 450KG | 1500lbs / 680KG |
| Weight Visualization | 75 plates | 150 plates | 250 plates | 100 12oz. cans | 30 cases of wine |
| Vinyl Tile | |||||
| Indoor Concrete | |||||
| Ceramic Tile | |||||
| Carpet | |||||
| Outdoor Uneven | |||||
| Daily Hour Usage | Up to 3 | 4 to 9 | 9 to 12 | 10 to 18 | Up to 24 hours |
| Ideal Usage | Dining area bussing, set-up tray station, soiled dish station | Dining room bussing, set-up tray station, soiled dish station. | Receiving goods, moving loads for warewashing | Receiving dock and storage room, loading and moving dishes and flatware. | Casinos and correctional facilities, receiving dock and warehousing |
| Legs Steel Gauge | 20 | 16 | 11 | 11 | 11 or 14 |
| Shelf Steel Gauge | 22 | 20 | 18 | 14 | 14 |
| Caster Size | 3-1/2” to 4” | 4” to 5” | 5" to 8” | 5" to 8” | 6" to 8” |
Manuals & Documents
CollapseCustom
CollapseChoose from a wide selection of proven product designs that can also be modified or customized to meet specific applications. Our experienced customer service team is ready to help with a quote today!
Design Your Own
