Lakeside 463

Lakeside 463 Multi-Shelf Cart with Recessed Handle, 6 Shelf: 21″ x 50″, 3 Edges Up, 1 Down, 500-Lb. Capacity

Multi-Shelf carts have multiple shelves that increase efficiency and maintain organization in healthcare environments.

Multi-Shelf Carts by Lakeside Manufacturing have multiple shelves that increase efficiency and maintain organization in healthcare environments. The Lakeside 463 Multi-Shelf Cart with (6) shelves measuring 21" x 50" has a weight capacity of 500-Lb. This cart has 3 of its shelf edges up, 1 down to help hold items on the shelves during transport. Its all-welded angle leg construction for a stronger structure and easier-to-clean surface. This medical utility cart's stainless steel construction is easy to clean and sanitize. This Lakeside cart's no-mark cushion-tread casters absorb impact for quieter operation, while its perimeter strip bumper adds extra protection for walls and furniture. This utility cart's recessed handle provides a sleeker look and reduces risk of catching objects during transport. Equipped with 2 fixed and 2 swivel 5” casters to guide cart in a straight line, while making turns easier. Largest selection on the market. Superior lead times. Made in the USA.
8
Day
Current availability as soon as 8 business days

  • 3 edges up, 1 down to help hold items on the shelves during transport.
  • All-welded angle leg construction for a stronger structure and easier-to-clean surface.
  • Stainless steel is easy to clean and sanitize.
  • No-mark cushion-tread casters absorb impact for quieter operation.

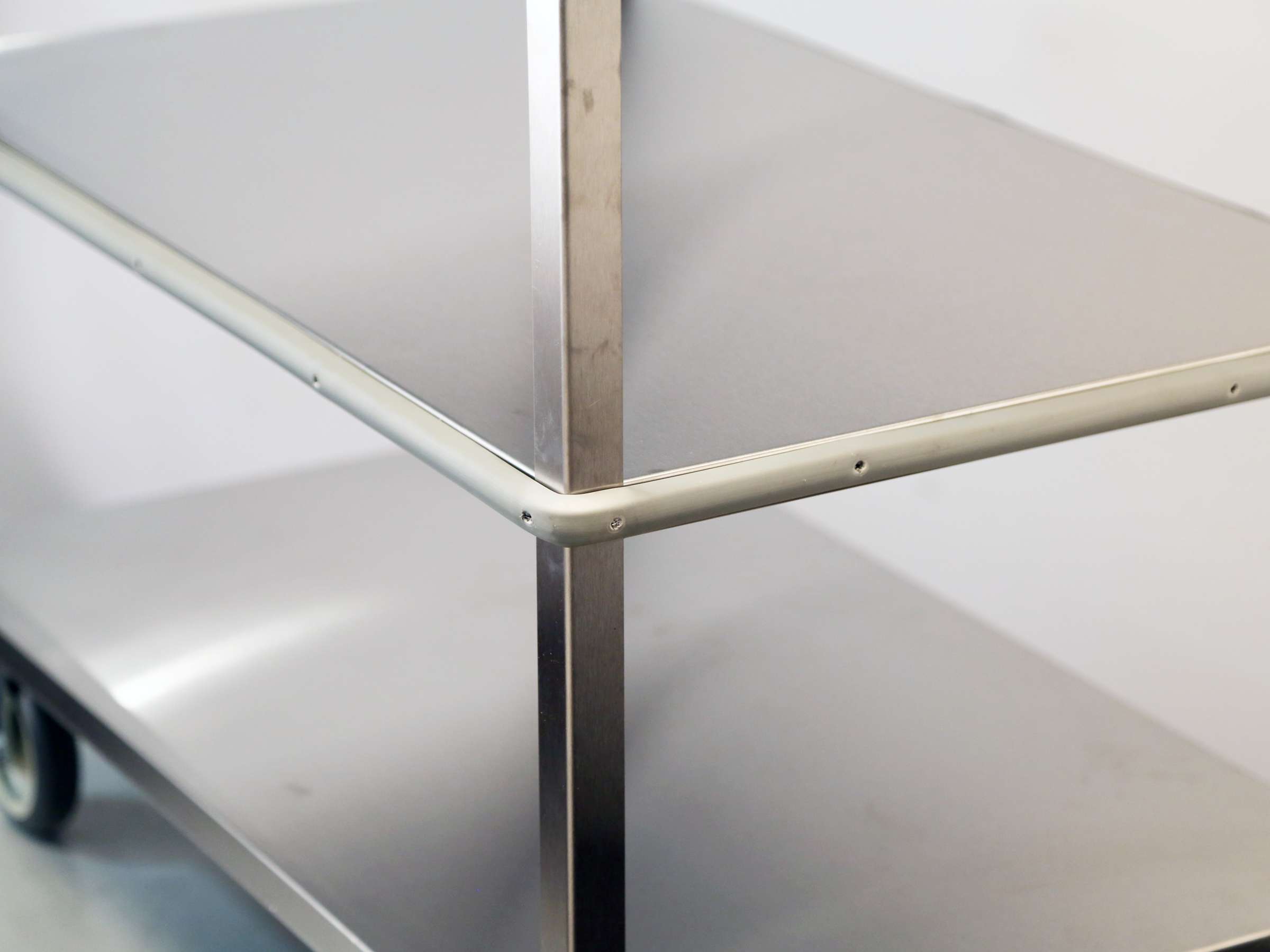

  • Perimeter strip bumper adds extra protection for walls and furniture.

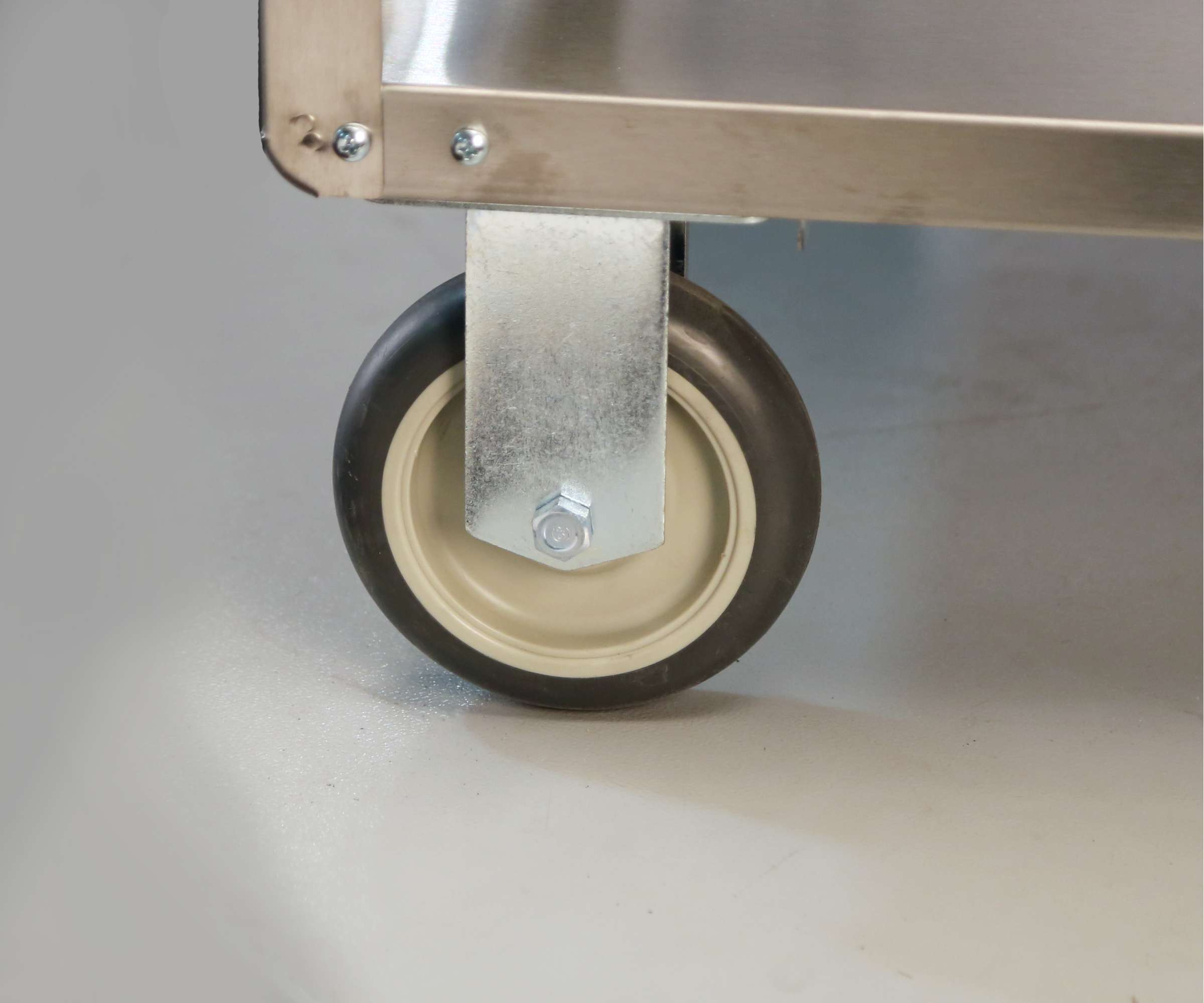

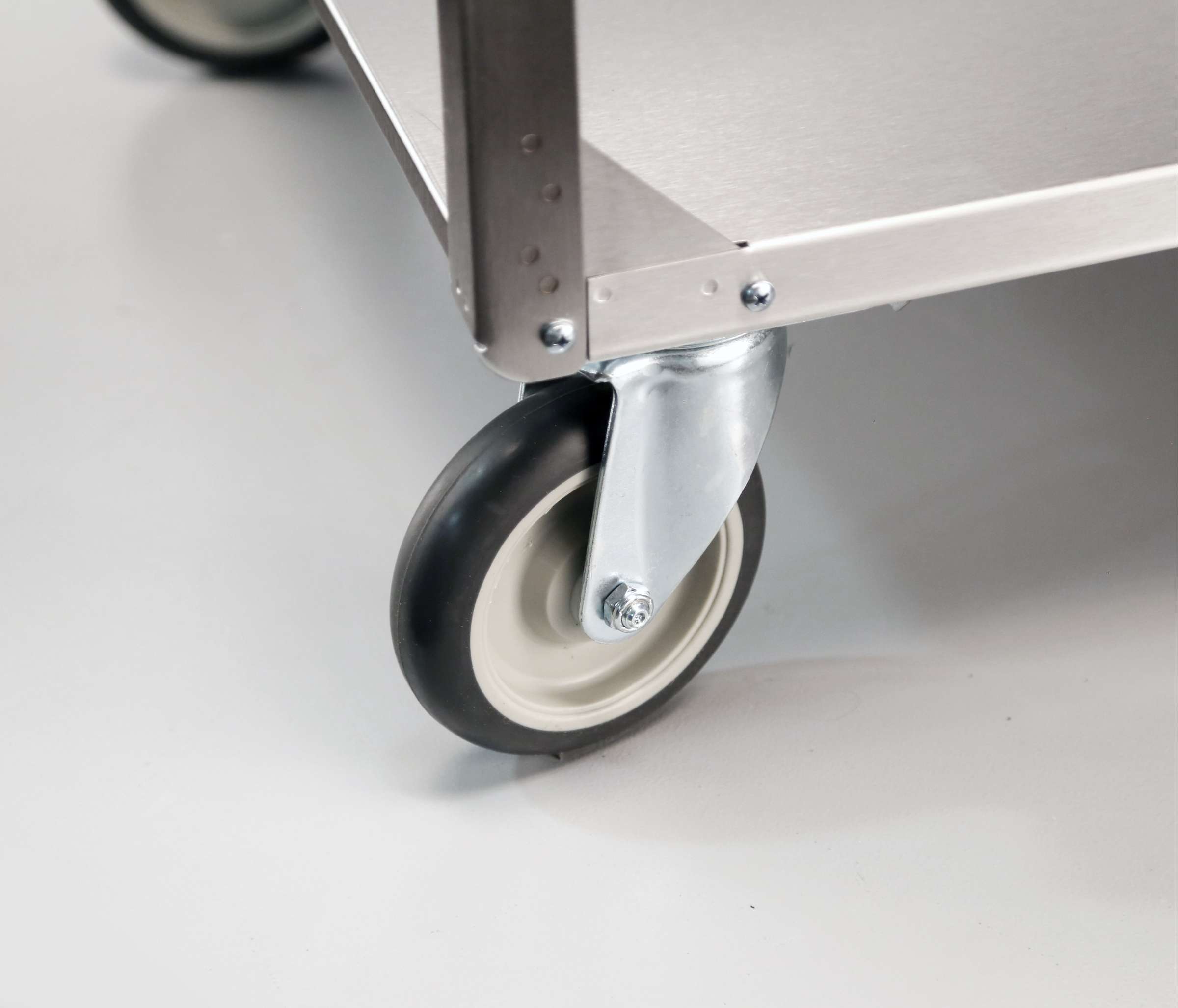

  • 2 fixed and 2 swivel 5” casters guide cart in a straight line, while making turns easier.
  • Recessed handle provides sleeker look and reduces risk of catching objects during transport.

Specifications

Collapse
Brand

Lakeside

Caster Size (in)

5

Caster Type

2 Ea. Fixed, 2 Ea. Swivel, No-Mark Polyurethane

Country of Origin

US

Item Dimensions (L x W x H) 51.38 in x 22.25 in x 50.38 in
NSF

No

Number of Shelves

6

Proposition 65 Warning This product can expose you to wood dust and chemicals including chromium, which are known to the State of California to cause cancer. For more information, go to: www.P65Warnings.ca.gov.
Shelf Clearance (in)

7.125

Shelf Dimensions

21 in x 50 in

Shelf Edges

3 Edges Up

Shipping Class 125
Shipping Dimensions 56 × 24 × 55 in
Shipping Method

LTL

Shipping Weight 167 lbs
Weight Capacity (lbs)

500

Product Specification: Unit shall be Lakeside Model 463 and shall have stainless steel resistance spot welding to fasten shelves and handle to frame with a weight capacity of 500-Lb. (227 kg). This cart shall have 6 ea. open shelves measuring 21" x 50" and be constructed of 20-gauge stainless steel. Shelves shall have 7-1/8" clearance and be reinforced with a hemmed front. Shelves shall have 3 edges up, 1 down. All-welded angle legs shall be constructed of 16-gauge stainless steel. Unit shall have a recessed stainless steel push handle welded to frame and have perimeter strip bumper mounted to edges and sides of bottom shelf. Unit shall have an independent galvanized steel dolly frame fastened to the bottom with 8 screws. Bottom corners shall be rounded. Two swivel, two fixed 5" double race, double-ball bearing casters shall be mounted to the dolly frame. Casters shall be of no-mark, cushion-tread. Unit shall be listed as medium duty. Made in USA.

Durability Index

Collapse
Durability Index





Maximum Weight300lbs / 135KG500lbs / 230KG700lbs / 320KG1000lbs / 450KG1500lbs / 680KG
Weight Visualization75 plates150 plates250 plates100 12oz. cans30 cases of wine
Vinyl Tile
Indoor Concrete
Ceramic Tile
Carpet
Outdoor Uneven
Daily Hour UsageUp to 34 to 99 to 1210 to 18Up to 24 hours
Ideal UsageDining area bussing, set-up tray station, soiled dish stationDining room bussing, set-up tray station, soiled dish station.Receiving goods, moving loads for warewashingReceiving dock and storage room, loading and moving dishes and flatware.Casinos and correctional facilities, receiving dock and warehousing
Legs Steel Gauge2016111111 or 14
Shelf Steel Gauge2220181414
Caster Size3-1/2” to 4”4” to 5”5" to 8”5" to 8”6" to 8”

Manuals & Documents

Collapse

Options & Accessories

Collapse

Standard products are available in a wide variety of common caster and bumper configurations or commercial grade vinyl and laminate finishes. These options along with accessories are listed below. Please contact us if you would like to further modify or customize a product to meet your needs.

Available Finish Options

Stainless Steel

Custom

Collapse

Choose from a wide selection of proven product designs that can also be modified or customized to meet specific applications. Our experienced customer service team is ready to help with a quote today!

Design Your Own
