Lakeside 316

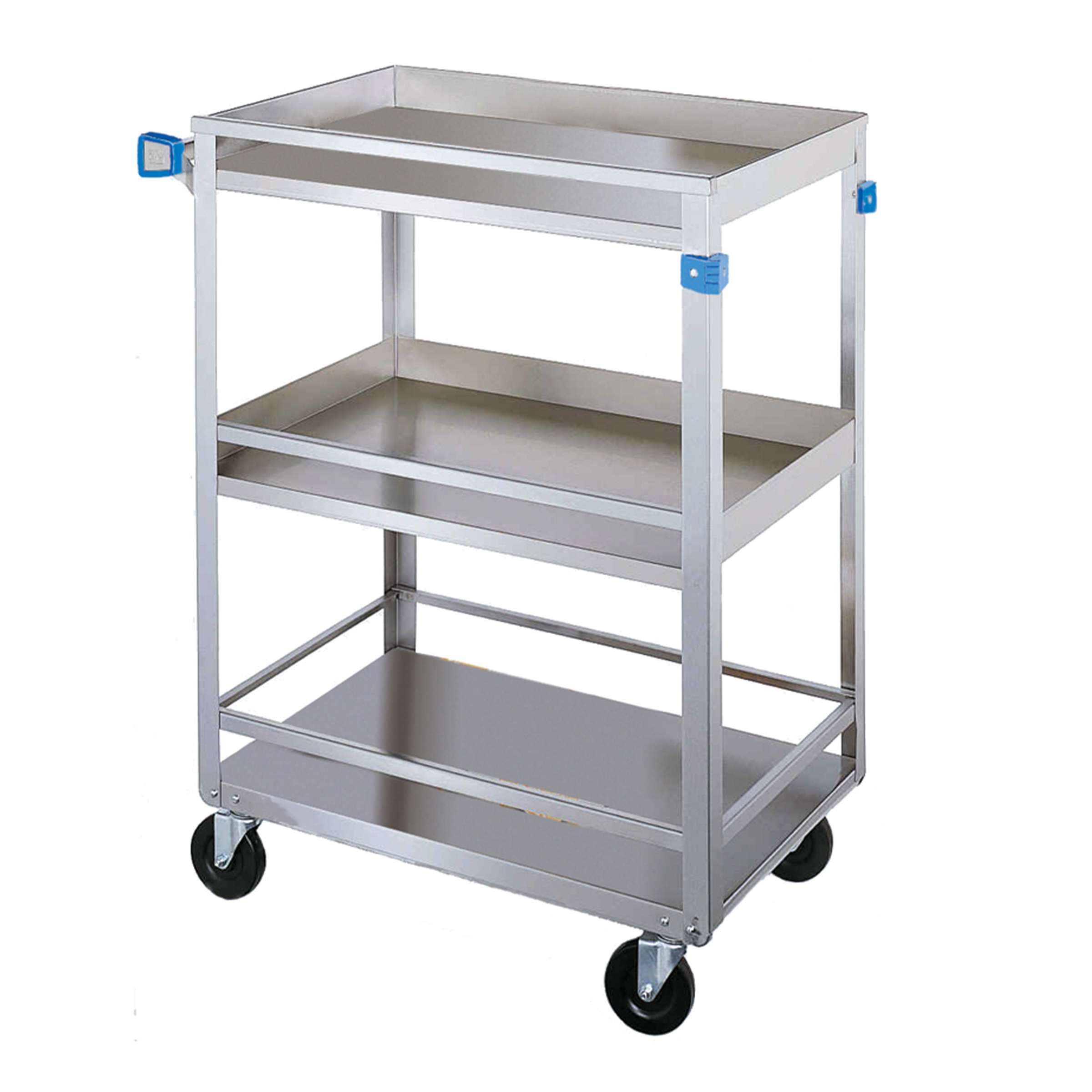

Lakeside 316 Guard Rail Utility Cart, 3 Shelf: 15-1/2″ x 24″, 300-Lb. Capacity

Guard rail carts reduce spills and breakage when transporting items that could easily tumble off shelves.

Guard Rail Utility Carts by Lakeside Manufacturing eliminate spills and breakage during transport of medical supplies that could easily tumble off the shelves. The Lakeside 316 Guard Rail Utility Cart with (3) shelves measuring 15-1/2" x 24" has a weight capacity of 300-Lb. This utility cart includes a guard rail on open edge of top and middle shelves, and on all 4 sides of bottom shelf to prevent items from falling during transport. This Lakeside cart's bumpers on legs and handles help protect walls and furniture, while its all-welded angle leg design provides durability. This medical utility cart's sound deadening material under its shelves restricts vibration and reduces noise. This utility cart's reinforced, hemmed front adds strength where the cart is most vulnerable to stress. Its stainless steel is easy to clean and sanitize. Customize your design with Lakeside cart experts. Superior lead times. Made in the USA.
3
Day
Current availability as soon as 3 business days

  • Includes guard rail on open edge of top and middle shelves, and on all 4 sides of bottom shelf prevent items from falling during transport.
  • Bumpers on legs and handles help protect walls and furniture.
  • All-welded angle leg design provides durability.
  • Sound deadening material under shelves restricts vibration and reduces noise.
  • Reinforced, hemmed front adds strength where the cart is most vulnerable to stress.
  • Stainless steel is easy to clean and sanitize.

Specifications

Collapse
Brand

Lakeside

Caster Size (in)

3.5

Caster Type

All swivel

Country of Origin

US

Item Dimensions (L x W x H) 27.5 in x 16.25 in x 33.38 in
NSF

No

Number of Shelves

3

Proposition 65 Warning This product can expose you to wood dust and chemicals including chromium, which are known to the State of California to cause cancer. For more information, go to: www.P65Warnings.ca.gov.
Shelf Clearance (in)

9.25

Shelf Dimensions

15.5 in x 24 in

Shipping Class 125
Shipping Dimensions 29.5 × 18 × 35.5 in
Shipping Method

UPS/FedEx Oversized

Shipping Weight 30 lbs
Weight Capacity (lbs)

300

Product Specification: Unit shall be Lakeside Model 316 and shall have stainless steel resistance spot welding to fasten shelves, guard rail and handle to frame with a weight capacity of 300-Lb. (136 kg). This cart shall have 3 ea. open shelves measuring 15-1/2" x 24" and be constructed of 24-gauge stainless steel. Shelves shall have 9-1/4" clearance and be reinforced with a hemmed front. Shelves shall have guard rail on open edge of top and middle shelf, and on all 4 sides of bottom shelf. Guard rail shall be constructed of 16-gauge stainless steel. All-welded angle legs shall be constructed of 20-gauge stainless steel. Unit shall have a stainless steel push handle welded to frame, and shall have corner bumpers mounted to front legs and ends of push handle. Unit shall have an independent galvanized steel dolly frame fastened to the bottom with 8 screws. Bottom corners shall be rounded. Four each 3-1/2" double race, double-ball bearing swivel casters shall be mounted to the dolly frame. Unit shall be listed as light duty. Made in USA.

Durability Index

Collapse
Durability Index





Maximum Weight300lbs / 135KG500lbs / 230KG700lbs / 320KG1000lbs / 450KG1500lbs / 680KG
Weight Visualization75 plates150 plates250 plates100 12oz. cans30 cases of wine
Vinyl Tile
Indoor Concrete
Ceramic Tile
Carpet
Outdoor Uneven
Daily Hour UsageUp to 34 to 99 to 1210 to 18Up to 24 hours
Ideal UsageDining area bussing, set-up tray station, soiled dish stationDining room bussing, set-up tray station, soiled dish station.Receiving goods, moving loads for warewashingReceiving dock and storage room, loading and moving dishes and flatware.Casinos and correctional facilities, receiving dock and warehousing
Legs Steel Gauge2016111111 or 14
Shelf Steel Gauge2220181414
Caster Size3-1/2” to 4”4” to 5”5" to 8”5" to 8”6" to 8”

Options & Accessories

Collapse

Standard products are available in a wide variety of common caster and bumper configurations or commercial grade vinyl and laminate finishes. These options along with accessories are listed below. Please contact us if you would like to further modify or customize a product to meet your needs.

Available Finish Options

Stainless Steel

Custom

Collapse

Choose from a wide selection of proven product designs that can also be modified or customized to meet specific applications. Our experienced customer service team is ready to help with a quote today!

Design Your Own
