Rugged design for transport applications and deep well shelves to keep medical supplies safely on board.
Plastic Utility Carts by Lakeside Manufacturing have a rugged design for transport applications and deep well shelves to keep medical supplies safely on board. The Lakeside 2523 Plastic Utility Cart with (2) deep well shelves measuring 24" x 36-1/3" has a weight capacity of 500-Lb. This Lakeside utility cart has 25% more weight capacity than standard duty models. This cart's 3” shelf walls hold transport items securely, while its reinforced structural foam shelves and legs provide extra durability. This medical utility cart on wheels has an integrated push handle for user comfort. Its one-piece leg and caster mount design provides added caster strength. This cart's no-mark 5” plate-mount swivel and fixed casters (2 ea. fixed, 2 ea. swivel) offer smooth maneuverability over uneven surfaces. Its angle legs with reinforcing gussets provide upright strength and torque free stability. Easy to clean and sanitize. Assembles easily in minutes. Available in two shelf sizes. Modify existing standard products. Superior lead times. Made in China.
Current availability as soon as 3 business days
- 25% more weight capacity than standard duty models.

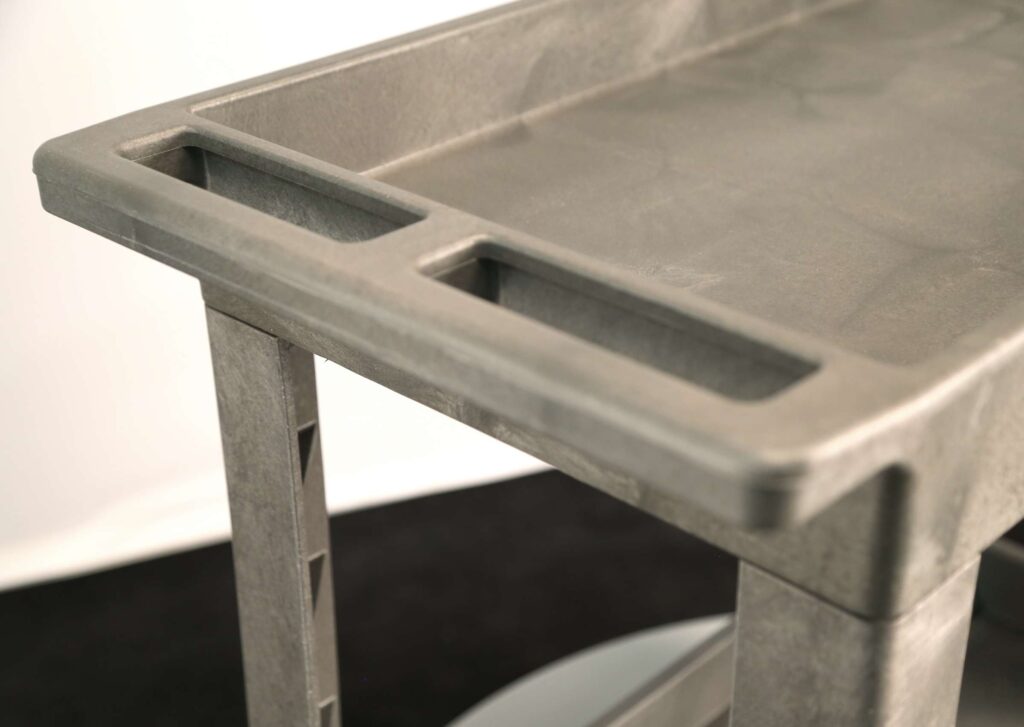

- 3” shelf walls hold and transport items securely.

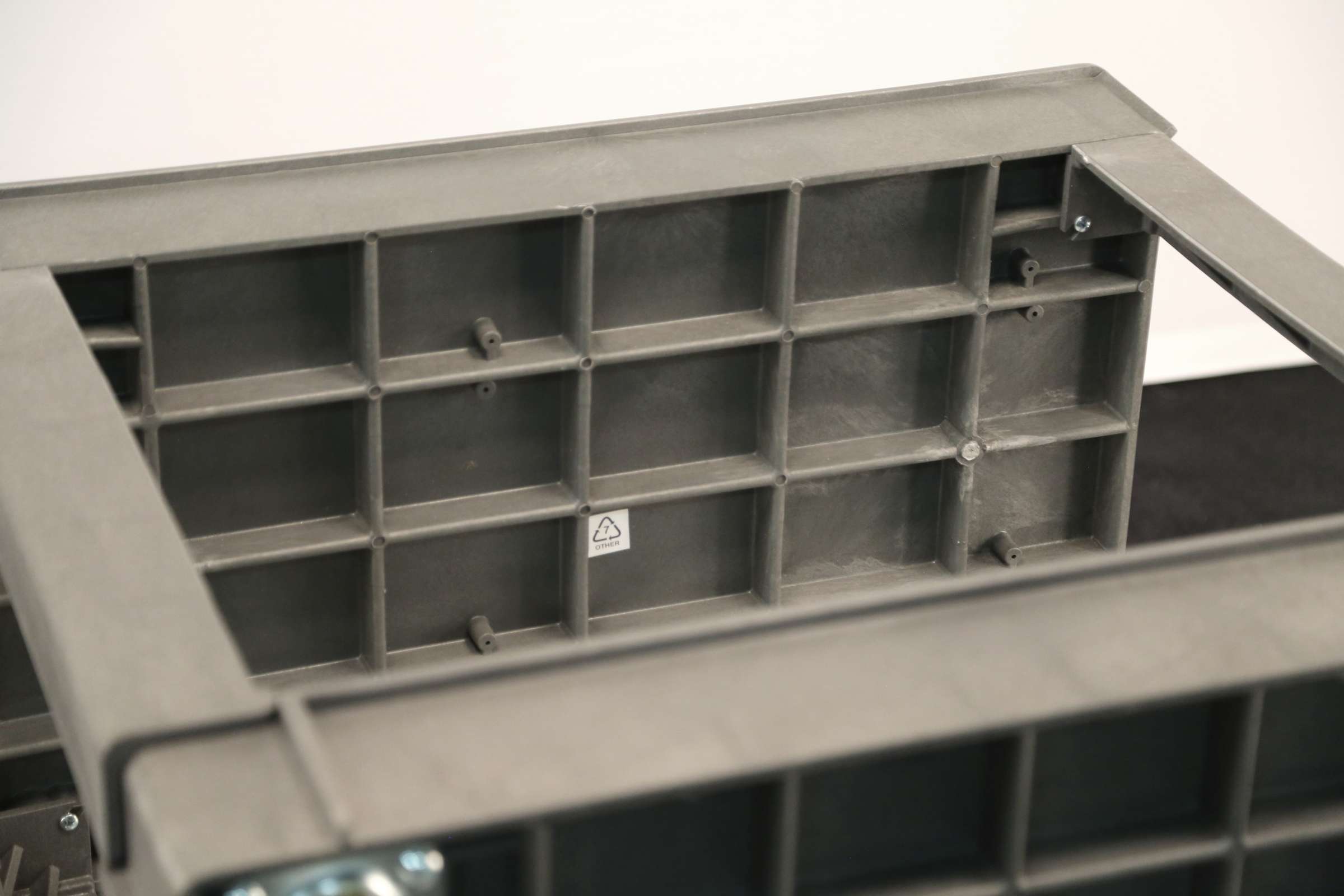

- Reinforced structural foam shelves and legs for extra durability.
- Integrated push handle for user comfort; no assembly required.
- One-piece leg and caster mount design for added caster strength.
- No-mark 5" plate-mount casters (2 ea. fixed, 2 ea. swivel).
- Angle legs with reinforcing gussets provide upright strength and torque free stability.
- Easy to clean and sanitize.
- Available in two shelf sizes.
- Assembles easily in minutes.
Specifications
Collapse| Brand | Lakeside |
|---|---|
| Caster Size (in) | 5 |
| Caster Type | 2 Ea. Fixed, 2 Ea. Swivel |
| Country of Origin | CN |
| Ergonomic Design | Traditional |
| Frame Type | Structural Foam |
| Item Dimensions (L x W x H) | 40.25 in x 25.5 in x 32.75 in |
| NSF | No |
| Number of Shelves | 2 |
| Proposition 65 Warning | None |
| Shelf Clearance (in) | 19.75 |
| Shelf Dimensions | 24 in x 36 in |
| Shipping Class | 70 |
| Shipping Dimensions | 41 × 26 × 9 in |
| Shipping Method | UPS/FedEx |
| Shipping Weight | 50 lbs |
| Weight Capacity (lbs) | 500 |
Product Specification: Unit shall have two each shelves of reinforced structural foam plastic with a total load capacity of 500 lb. Shelves shall have 3” high edges on all sides. One-piece corner legs shall be of 2” x 2” structural foam plastic with reinforcing gussets. Leg bases shall feature integrated caster mount design for increased caster strength. Top shelf shall include integrated push handle. Casters shall be plate-mount type, 2 each fixed and 2 each swivel, and shall fasten directly to corner leg assembly. Caster wheels shall be 5” diameter non-marking. Unit shall be shipped unassembled.
Durability Index
Collapse| Durability Index | |||||
| Maximum Weight | 300lbs / 135KG | 500lbs / 230KG | 700lbs / 320KG | 1000lbs / 450KG | 1500lbs / 680KG |
| Weight Visualization | 75 plates | 150 plates | 250 plates | 100 12oz. cans | 30 cases of wine |
| Vinyl Tile | |||||
| Indoor Concrete | |||||
| Ceramic Tile | |||||
| Carpet | |||||
| Outdoor Uneven | |||||
| Daily Hour Usage | Up to 3 | 4 to 9 | 9 to 12 | 10 to 18 | Up to 24 hours |
| Ideal Usage | Dining area bussing, set-up tray station, soiled dish station | Dining room bussing, set-up tray station, soiled dish station. | Receiving goods, moving loads for warewashing | Receiving dock and storage room, loading and moving dishes and flatware. | Casinos and correctional facilities, receiving dock and warehousing |
| Legs Steel Gauge | 20 | 16 | 11 | 11 | 11 or 14 |
| Shelf Steel Gauge | 22 | 20 | 18 | 14 | 14 |
| Caster Size | 3-1/2” to 4” | 4” to 5” | 5" to 8” | 5" to 8” | 6" to 8” |
