Heated plates help maintain safe food temperatures for banquets and on-demand meals.
Heated plates help maintain safe food temperatures for banquets and on-demand meals. The Lakeside E6206 Express Heat™ Mobile Plate Dispenser is a heated two-stack dispenser that fits 5-7/8 to 6-1/2 inch plates. The double wall construction also promotes quick, efficient heating. This unit’s thermostatic control allows you to manage and adjust the temperature for both dispenser tubes. The easy glide design is non-stick for a smooth operation. Dispenser height tension is hand adjustable to accommodate various plate weights. This model has a 25”(635) stacking height capacity. The all-welded construction increases durability while the stainless steel material is easy to clean and sanitize. All 4” swivel casters, 2 with brake, allow easy maneuverability. This model forced air design heats dishes evenly up to 150˚F in 90 minutes. Units include 2 ea. heat retaining covers. The dish dispensers accommodate various dish sizes, including plates and bowls. Nobody beats Lakeside lead times! Proudly made in the USA.
Current availability as soon as 15 business days
- Double wall construction also promotes quick, efficient heating.
- Single thermostatic control to manage and adjust temperature for both dispenser tubes.
- The Easy-Glide™ design dispenses plates smoothly while preventing jams.
- Self-leveling dispenser height tension is hand adjustable to accommodate various plate weights.
- Dispensers have 25" stacking height capacity.
- All welded construction increases durability while the stainless steel material is easy to clean and sanitize.
- All 4”swivel casters, 2 with brake, allow easy maneuverability.
- Forced air design heats dishes evenly up to 150˚F in 90 minutes.
- Units include 2 ea. heat retaining covers.
- Dish dispensers accommodate a variety of dish sizes, including plates and bowls.
Specifications
Collapse| Accommodates Plate Size (in) | 6 |
|---|---|
| Adjust-a-Fit | No |
| Body Style | Cabinet |
| Brand | Lakeside |
| Caster Size (in) | 4 |
| Caster Type | All-Swivel 2 Ea. w/Brake |
| Country of Origin | US |
| Dish Shape | Round |
| Electrical Amps | 6.5 |
| Electrical Volts | 120VAC |
| Electrical Watts | 750 |
| Heating | Convection Heated |
| Item Dimensions (L x W x H) | 36.5 in x 20.75 in x 39.88 in |
| Model | Express Heat |
| NSF | Yes |
| Number of Stacks | 2 |
| Plate Size Range | 5 7/8 to 6 1/2 |
| Proposition 65 Warning | This product can expose you to wood dust and chemicals including chromium, which are known to the State of California to cause cancer. For more information, go to: www.P65Warnings.ca.gov. |
| Shipping Class | 92.5 |
| Shipping Dimensions | 48 × 30 × 43.5 in |
| Shipping Method | LTL |
| Shipping Weight | 162 lbs |
| UL Listed | Yes |
Product Specification: Mobile Cabinet: Mobile cabinets shall be of all-welded stainless steel construction. Cabinets shall have 18-gauge top and 20-gauge sides and bottom and shall include bottom corner bumpers. Cabinet bottom shall have center clean out hole. Cabinet sides and top shall be double-wall to provide heat retention and energy efficiency. Casters shall be 4" (102 mm) diameter non-marking swivel (two with brake). Unit shall feature a heavy-duty independent undercarriage frame of galvanized steel to which casters shall be mounted. Two each stainless steel heat retaining dish covers shall be included. Units shall be NSF and UL listed.
Dispenser Tubes: Dispenser tubes shall be of welded stainless steel construction and shall drop into mobile cabinet top openings and feature open side design to allow flow of heated forced air to dishes. Dispensers shall hang from cabinet opening by an 18-gauge flange ring, and feature three each 22-gauge vertical side supports welded to 20- gauge bottom plate. Self-leveling dish carriage shall be of welded stainless steel construction and shall travel vertically in dispenser tube with nylon guides for smooth operation. Carriage shall have 22-gauge removable dish platform. Dispensers shall feature flange-mounted perimeter extension springs, which are detachable from the dish carriage, to provide tension adjustment without tools for different weight dishes.

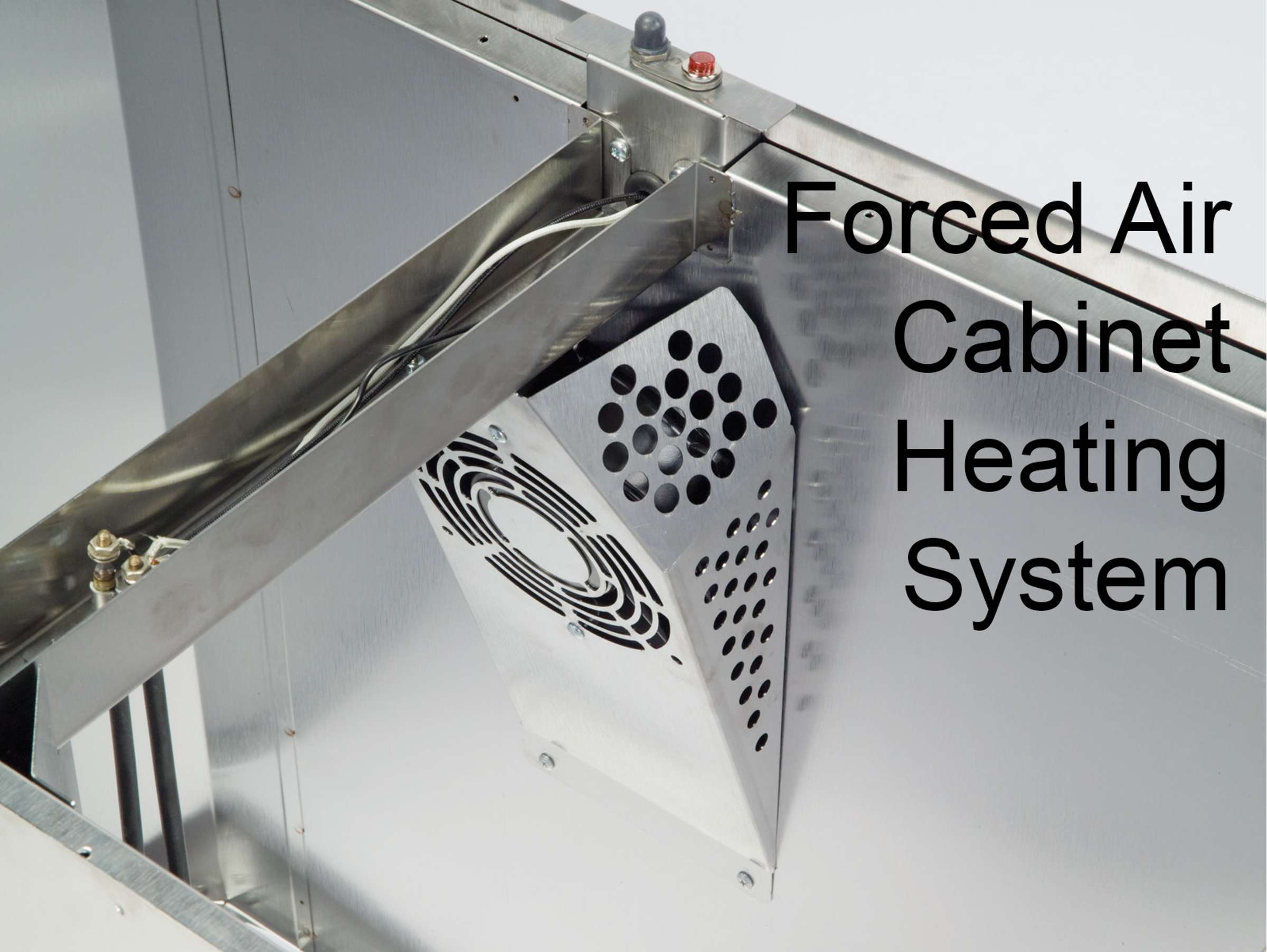

Heating System: Unit shall be 120 VAC 60 Hz, 6.5 amp and shall have a 7’ (2134 mm) SOOW power supply cord with 5-15P NEMA plug for 120 VAC. Cabinet shall have interior mounted 235CFM Class F convection fan to distribute heat evenly inside the cabinet. Heat shall be provided by a single 750 watt Incoloy® heating element. The heating system shall feature a single on/off switch with power indicator light and thermostatic control knob for the heater element and fan. Unit shall be capable of heating dishes up to 150º F evenly in 90 minutes.
