Oval plates and platters can now be dispensed with award-winning ease.
Oval plates and platters can now be dispensed with award-winning ease. The Lakeside 991 Mobile Oval Plate Dispenser is a non-heated two-stack dispenser that fits 8-3/4 x 9-3/4 to 11-3/8 x 13-1/2 Inch oval plates. Store, transport, and dispense oval plates and bowls in a convenient self-leveling dish dispenser to reduce breakage. Adjusting height level is easy and convenient. Simply detach and attach springs as needed with no tools required. The Easy-Glide™ design dispenses plates smoothly while preventing jams. All 4” swivel casters, 2 with brake, allow easy maneuverability. This unit has all welded construction that increases durability. The stainless steel material is easy to clean and sanitize. Self-leveling dispensers have a 25”(635) stacking height capacity. This model has an Adjust-A-Fit® diameter hand adjustment for flexibility in varying platter sizes. Nobody beats Lakeside lead times! Proudly made in the USA.
Current availability as soon as 10 business days
- Store, transport, and dispense oval plates and bowls in a convenient self-leveling dish dispenser to reduce breakage.

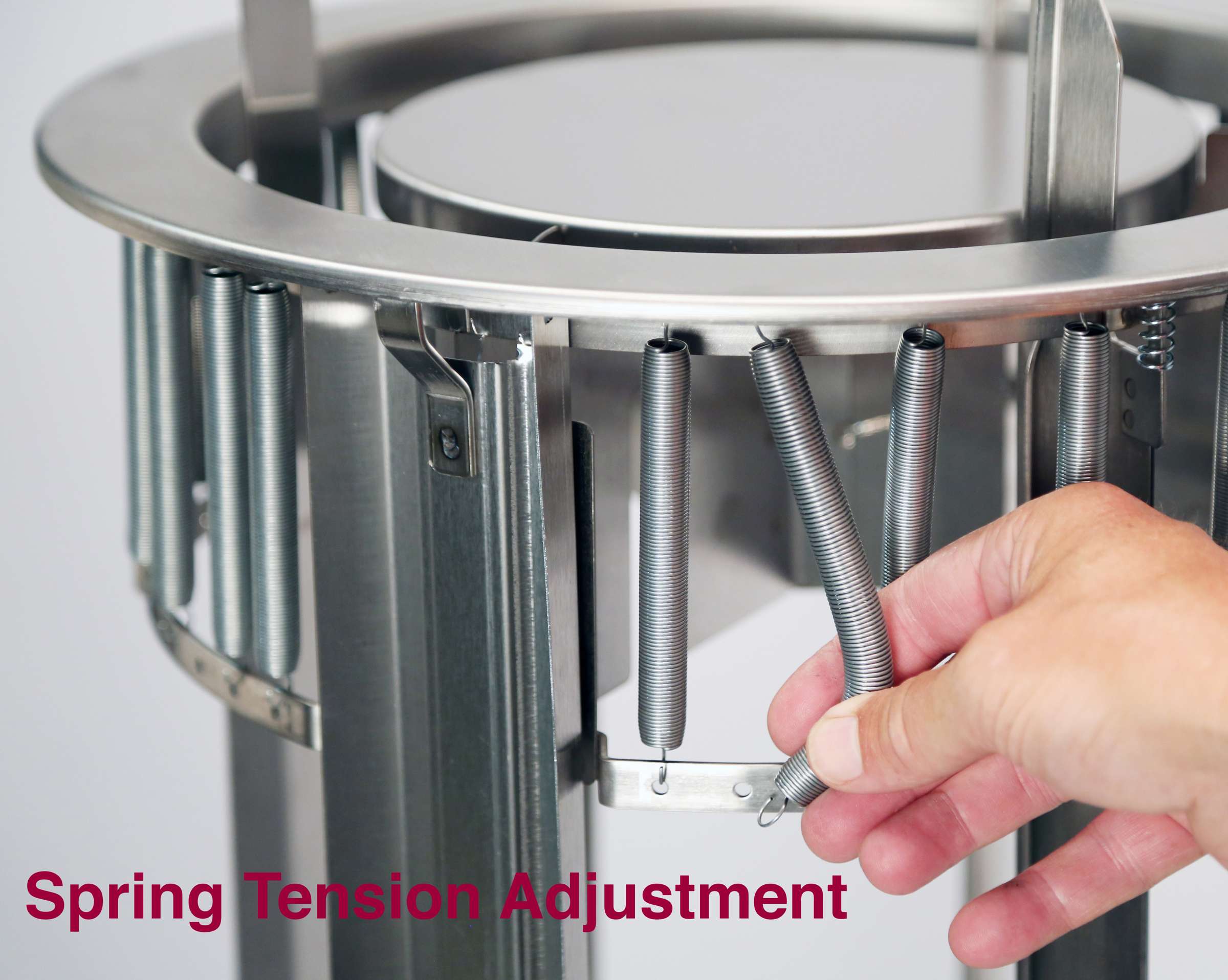

- Adjusting height level is easy and convenient. Simply detach and attach springs as needed with no tools required.
- The Easy-Glide™ design dispenses plates smoothly while preventing jams.
- All 4” swivel casters, 2 with brake, allow easy maneuverability.
- All welded construction increases durability.
- Stainless steel material is easy to clean and sanitize.
- Self-leveling dispensers have a 25”(635) stacking height capacity.
- This model has an Adjust-A-Fit® diameter hand adjustment for flexibility in varying platter sizes.
Specifications
Collapse| Accommodates Plate Size (in) | 12, 12.5, 13, 13.5 |
|---|---|
| Adjust-a-Fit | Yes |
| Body Style | Cabinet |
| Brand | Lakeside |
| Caster Size (in) | 4 |
| Caster Type | All-Swivel 2 Ea. w/Brake |
| Country of Origin | US |
| Dish Shape | Oval |
| Heating | Non-heated |
| Item Dimensions (L x W x H) | 35.13 in x 19.5 in x 39.13 in |
| Model | Regular |
| NSF | Yes |
| Number of Stacks | 2 |
| Plate Size Range | 8 3/4 x 9 3/4 to 11 3/8 x 13 1/2 |
| Proposition 65 Warning | This product can expose you to wood dust and chemicals including chromium, which are known to the State of California to cause cancer. For more information, go to: www.P65Warnings.ca.gov. |
| Shipping Class | 92.5 |
| Shipping Dimensions | 38 × 24 × 44 in |
| Shipping Method | LTL |
| Shipping Weight | 118 lbs |
Product Specification: Mobile Cabinet: Mobile cabinets shall be of all-welded stainless steel construction. Cabinets shall have 18-gauge top and 20-gauge sides and bottom and shall include bottom corner bumpers. Cabinet bottom shall have center clean out hole. Casters shall be 4” (102 mm) diameter extra-load swivel (two with locking brake). Unit shall feature a heavy-duty independent undercarriage frame of galvanized steel to which casters shall be mounted. Units shall be NSF listed.

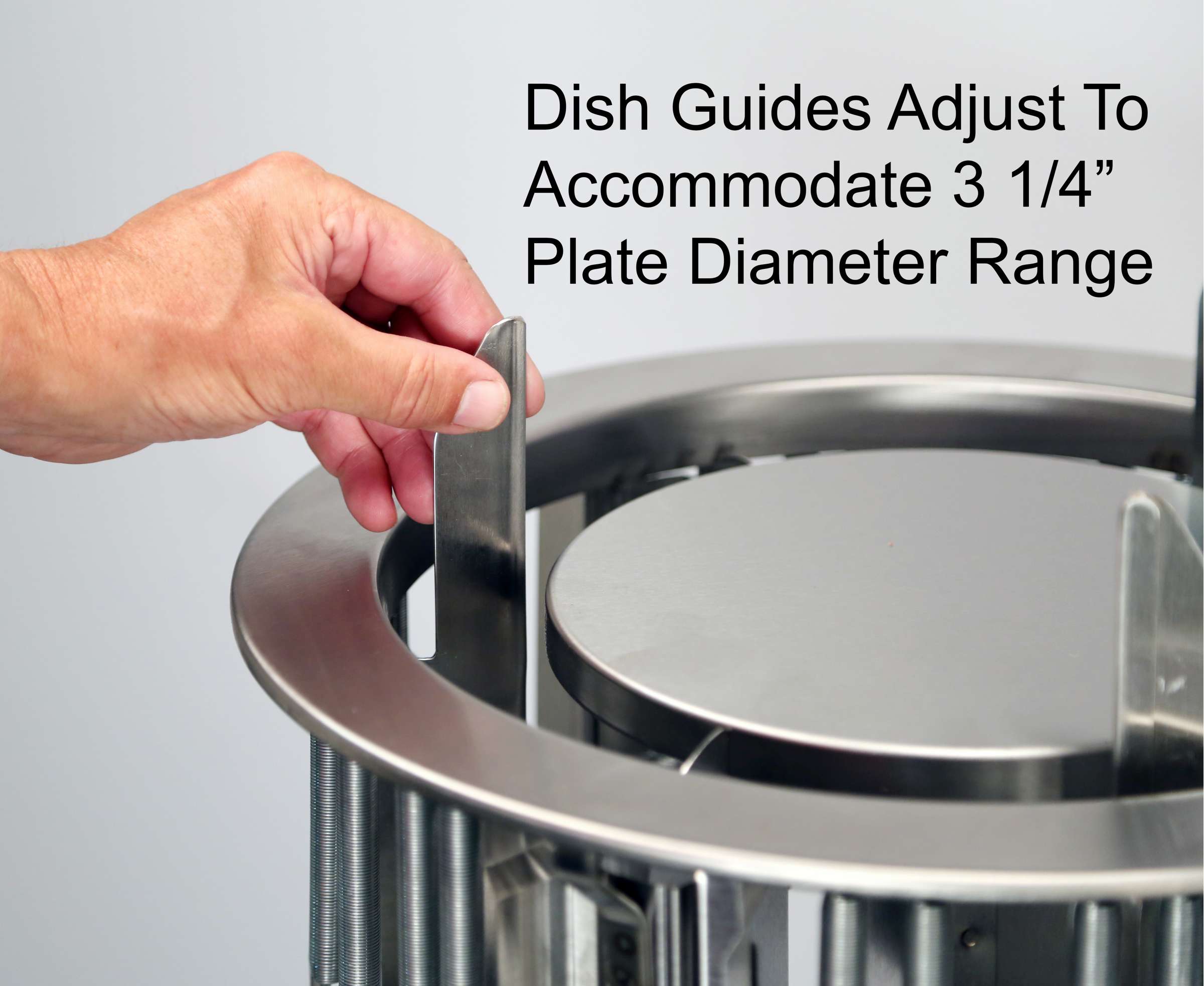

Dispenser Tubes: Dispenser tubes shall be of welded stainless steel construction and shall drop into mobile cabinet top openings. Dispensers shall hang from cabinet opening by an 18-gauge flange ring, and feature three each 22-gauge vertical side supports welded to 20-gauge bottom plate. Self-leveling dish carriage shall be of welded stainless steel construction and shall travel vertically in dispenser tube with nylon guides for smooth operation. Carriage shall have 22-gauge removable dish platform. Dispensers shall feature flange mounted perimeter extension springs, which are detachable from the dish carriage, to provide adjustment without tools for different weight dishes. Unit shall also feature three stainless steel dish guides running the entire height of the dispenser. Dish guides shall pivot to provide diameter adjustability of 3-1/4” (83 mm) without tools or removing components to accommodate various diameter oval dishes. Each dispenser shall have a vertical stacking capacity of 25” (635 mm).
