Hold a variety of differentsize platesin the same cabinet for ultimate award-winning flexibility.

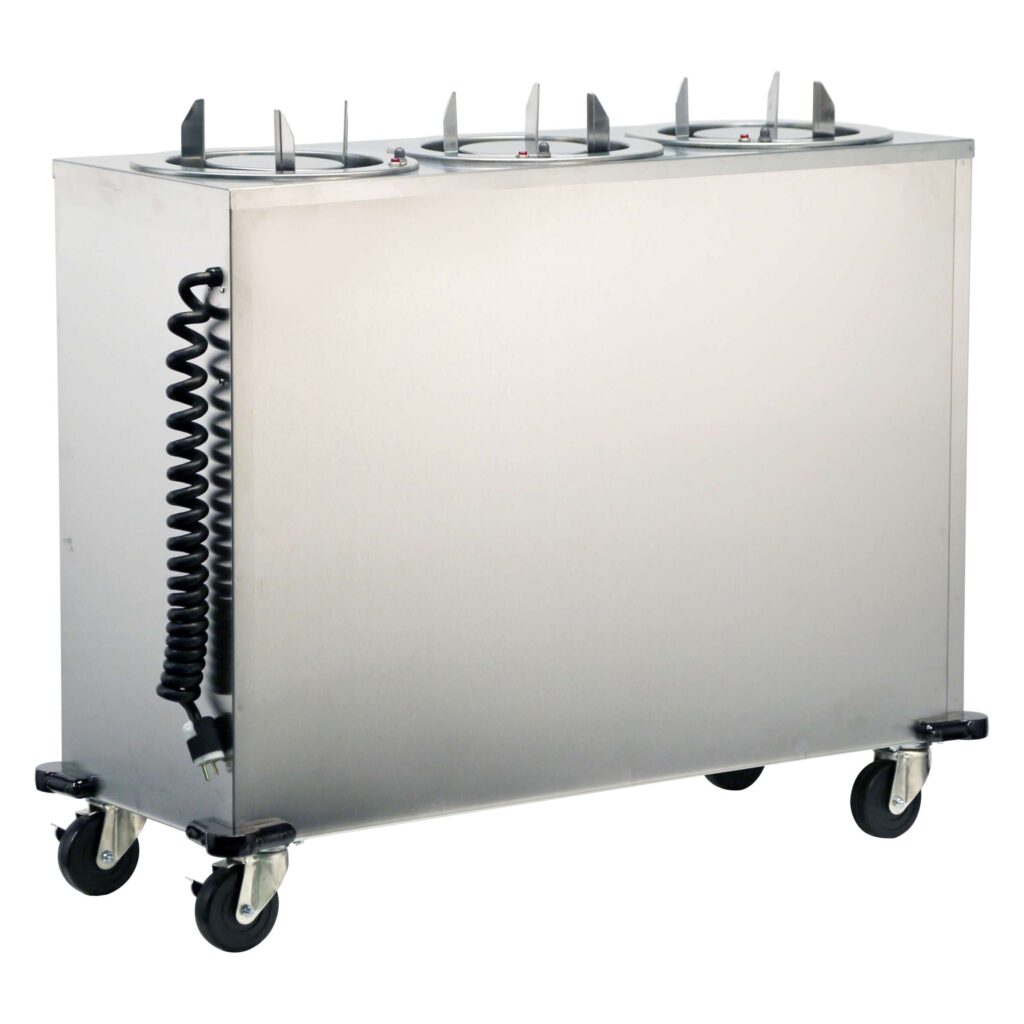

Hold a variety of different size plates in the same cabinet for ultimate award-winning flexibility. The Lakeside 965 Mobile Plate Dispenser is a heated Adjust-a-Fit® three-stack dispenser for 6-1/2 to 9-3/4 inch plates. Holds two plate stacks to conveniently hold varying sizes of plates and bowls. Adjust-a-fit diameter hand adjustment of 3 ¼” (83) allows flexibility for varying dish sizes. Adjusting height levels is easy and convenient. Each heated dispenser features its own thermostatic control to manage and adjust temperature. The Easy-Glide™ design dispenses plates smoothly while preventing jams. All 4” swivel casters, 2 with brake, allow easy maneuverability. This unit has an all welded construction that increases durability. The stainless steel material is easy to clean and sanitize. This model has a 25”(635) stacking height capacity. Nobody beats Lakeside lead times! Proudly made in the USA.
Current availability as soon as 9 business days
- Holds three plate stacks to conveniently hold varying sizes of plates and bowls.
- Each heated dispenser features its own thermostatic control to manage and adjust temperature.
- Adjust-a-fit diameter hand adjustment of 3 ¼”(83) allows flexibility for varying dish sizes.

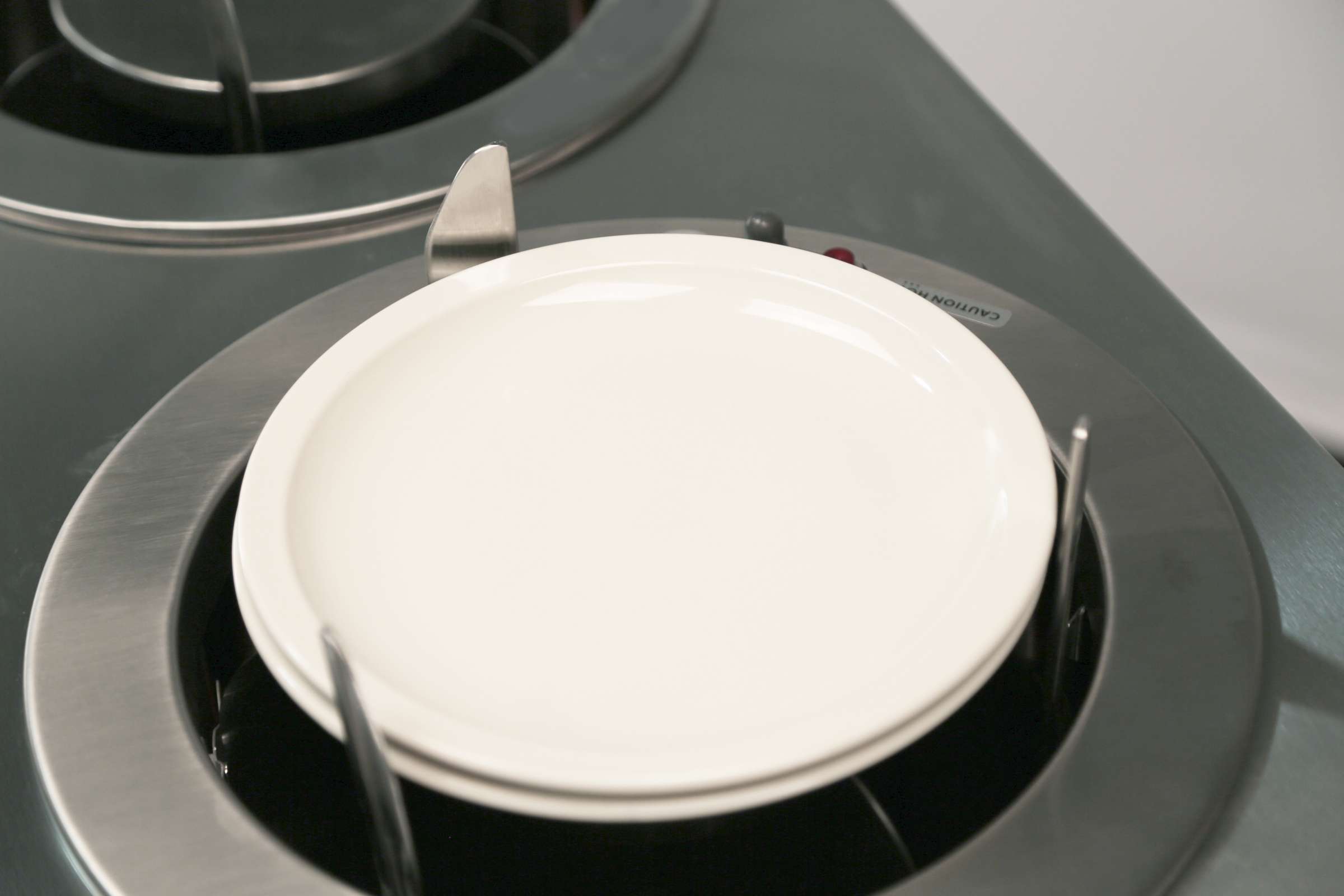

- The Easy-Glide™ design dispenses plates smoothly while preventing jams.
- All 4” swivel casters, 2 with brake, allow easy maneuverability.
- All welded construction increases durability.
- Stainless steel material is easy to clean and sanitize.
- Dispensers have 25”(635) stacking height capacity.
- Adjusting height levels is easy and convenient.
Specifications
Collapse| Accommodates Plate Size (in) | 6.5, 7, 7.5, 8, 8.5, 9, 9.5 |
|---|---|
| Adjust-a-Fit | Yes |
| Body Style | Cabinet |
| Brand | Lakeside |
| Caster Size (in) | 4 |
| Caster Type | All-Swivel 2 Ea. w/Brake |
| Country of Origin | US |
| Dish Shape | Round |
| Electrical Amps | 11.3 |
| Electrical Volts | 120VAC |
| Electrical Watts | 1350 |
| Heating | Heated |
| Item Dimensions (L x W x H) | 45 in x 17.19 in x 39.13 in |
| Model | Regular |
| NSF | Yes |
| Number of Stacks | 3 |
| Plate Size Range | 6 1/2 to 9 3/4 |
| Proposition 65 Warning | This product can expose you to wood dust and chemicals including chromium, which are known to the State of California to cause cancer. For more information, go to: www.P65Warnings.ca.gov. |
| Shipping Class | 92.5 |
| Shipping Dimensions | 49 × 32 × 58.5 in |
| Shipping Method | LTL |
| Shipping Weight | 210 lbs |
| UL Listed | Yes |
Product Specification: Mobile Cabinet: Mobile cabinets shall be of all-welded stainless steel construction, with 18 gauge top and 20- gauge sides and bottom and shall include bottom perimeter bumper. Cabinet bottom shall have center clean out hole. Casters shall be 4” (102 mm) diameter extra-load swivel (two with locking brake). Unit shall feature a heavy duty independent undercarriage frame of galvanized steel to which casters shall be mounted. Units shall be NSF listed.
Dispenser Tubes: Dispenser tubes shall be of welded stainless steel construction and shall drop in to mobile cabinet top openings. Dispensers shall hang from cabinet opening by an 18-gauge flange ring and feature three each 22-gauge vertical side supports welded to 20-gauge bottom plate. Self-leveling dish carriage shall be of welded stainless steel construction and shall travel vertically in dispenser tube with three sets of nylon roller guides running in vertical tracks for smooth operation. Carriage shall have 22-gauge removable dish platform. Dispensers shall feature flange mounted perimeter extension springs, which are detachable from the dish carriage to provide proper dish height adjustment without tools. Dispensers shall also feature three stainless steel dish guides running the entire height of the dispenser. Dish guides shall pivot to provide diameter adjustability of 3-1/4” (83 mm) without tools or removing components to accommodate various diameter dishes. Each dispenser shall have a vertical stacking capacity of 26” (660 mm).

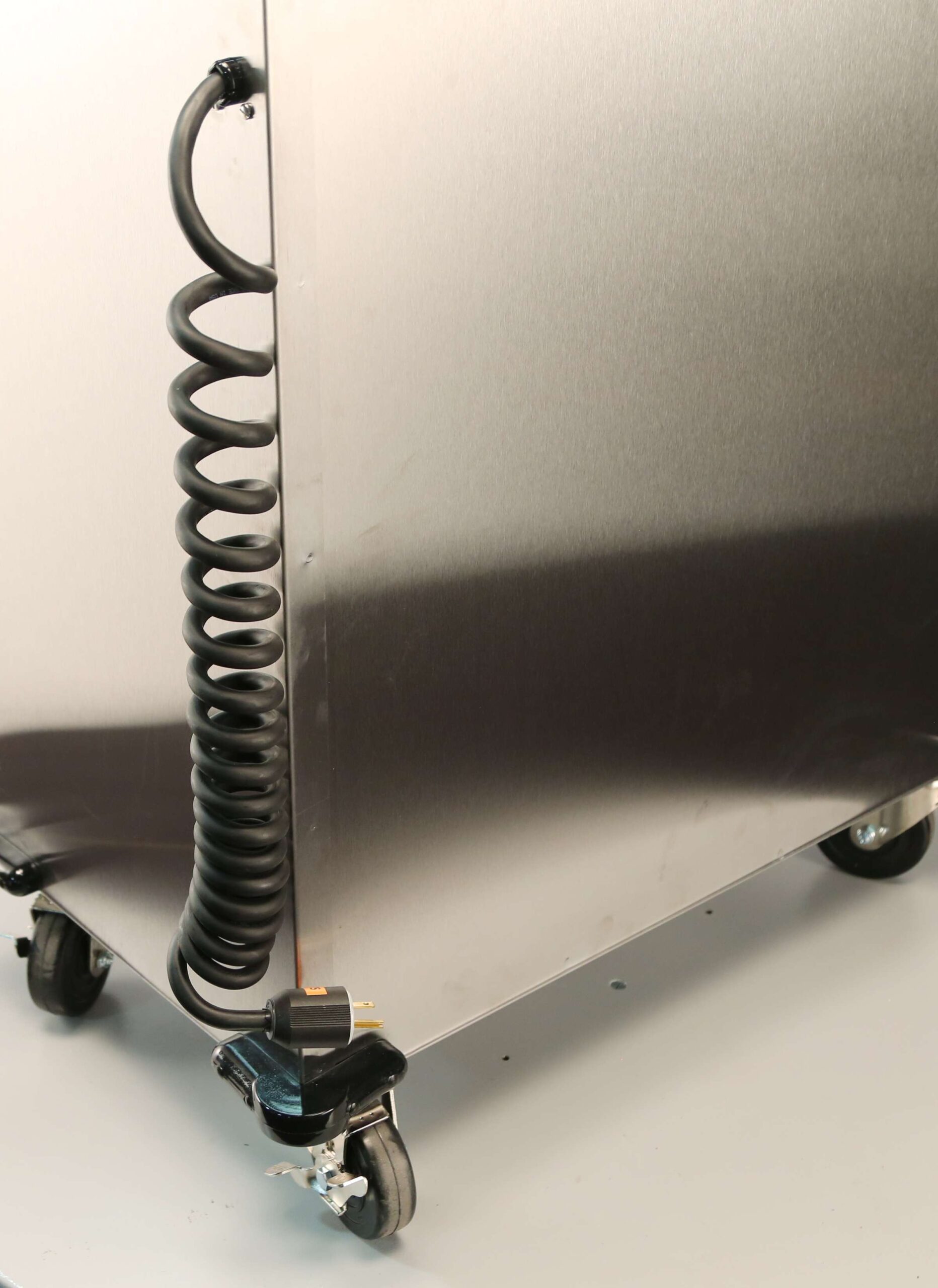

Heating System: Unit shall be 120 VAC 60 Hz and shall have 6´ (1829 mm) coiled power supply cord with 5-15P NEMA plug for 120 VAC. Cabinet shall have interior mounted electrical junction box with twist-lock receptacles for individual power to each dispenser. Dispenser tubes shall be fully enclosed in 22-gauge stainless steel, and have a circular bottom mounted 300 or 450 watt heater element to provide convection heat. Heating system shall feature thermostatic control in a tamper protective location with safe high-end shut-off. Control shall have Infinite settings between low and high temperature cut-outs. Thermostat shall be field adjustable for average interior air temperature between 100°F (38°C) and 175° F (79°C) at middle adjustable thermostatic setting. On-off switch and power indicator light shall be mounted on top flange of dispenser. Average dish temperature rise of 40°F (22°C) above ambient shall be achieved within one hour of initial heating cycle at middle adjustable thermostatic setting. Cabinet and dispenser tubes shall be U.L. listed.
