Lakeside's NSF certified transport utility carts are a reliable and heavy-duty solution for foodservice professionals.
Stainless Steel Utility Carts by Lakeside Manufacturing are ideal for receiving dock and storage room use, loading and moving dishes and flatware, and continuous hauling of heavy-duty loads over uneven surfaces. The Lakeside 949 Stainless Steel Utility Cart with (3) shelves measuring 24" x 36" has a weight capacity of 1000-Lb. This Lakeside cart's larger 8” (203) front wheels allow cart to transition over uneven surfaces with ease. Its fixed front wheels help guide cart in a straight line, while making easier to navigate corners. This foodservice cart's angled “u”-shaped frame design provides superior structural strength for larger loads. This utility cart's all joints are full bead welded to better withstand heavy loads and frequent use, while its reinforced edges provide extra capacity for heavy loads. The 949's no-mark, extra load, cushion tread wheels absorb impact, reducing vibration and strain. Its stainless steel construction is easy to clean and sanitize. This Lakeside cart has bumpers on its legs and handles to protect walls and furniture. This model is NSF listed. Lakeside offers an endless variety of customizable options with industry leading ship times. Made in the USA with unbeatable lead times!
Current availability as soon as 8 business days

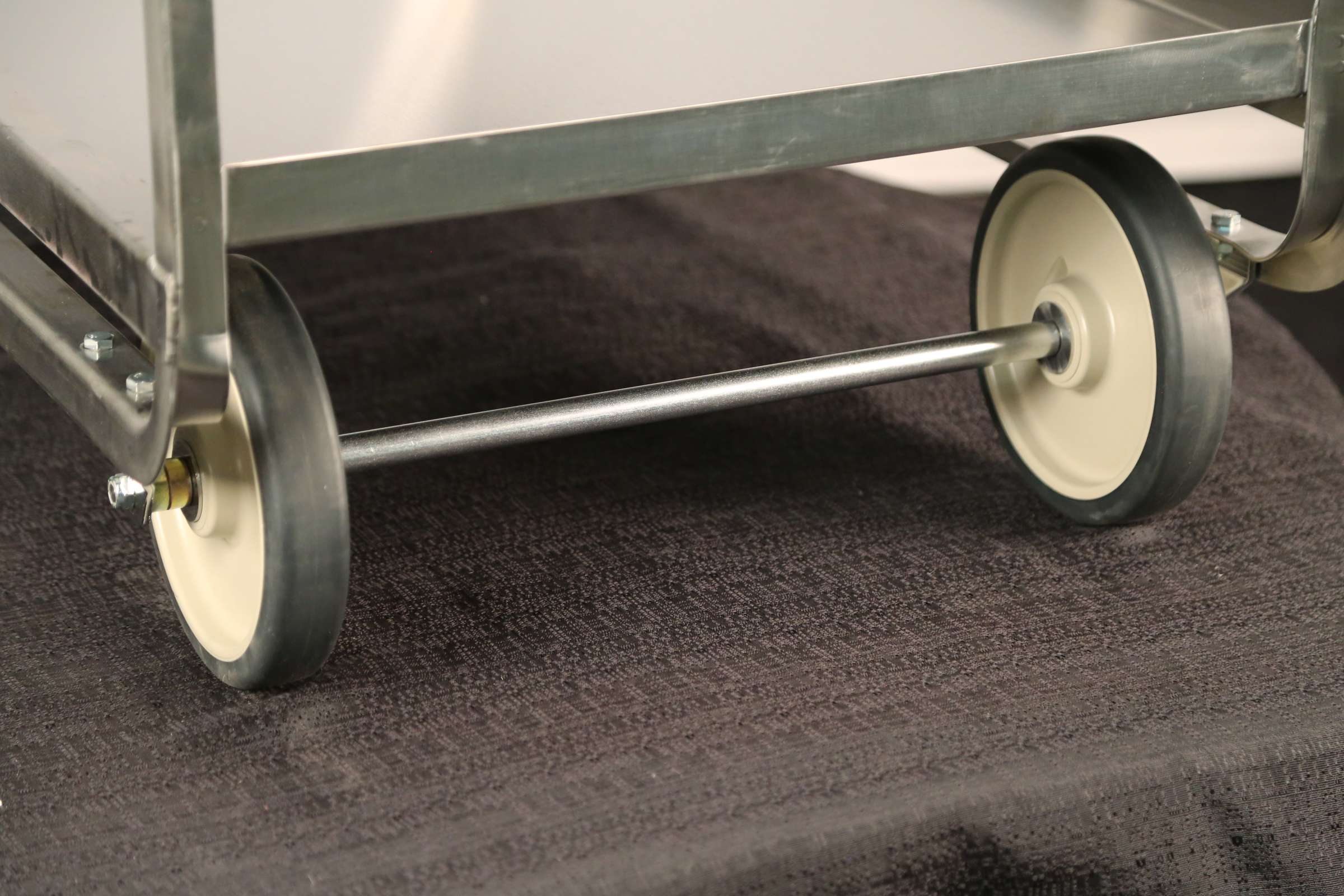

- Larger 8” (203) front wheels allow cart to transition over uneven surfaces with ease.
- Fixed front wheels help guide cart in a straight line, while making easier to navigate corners.
- Angled “u”-shaped frame design provides superior structural strength for larger loads.

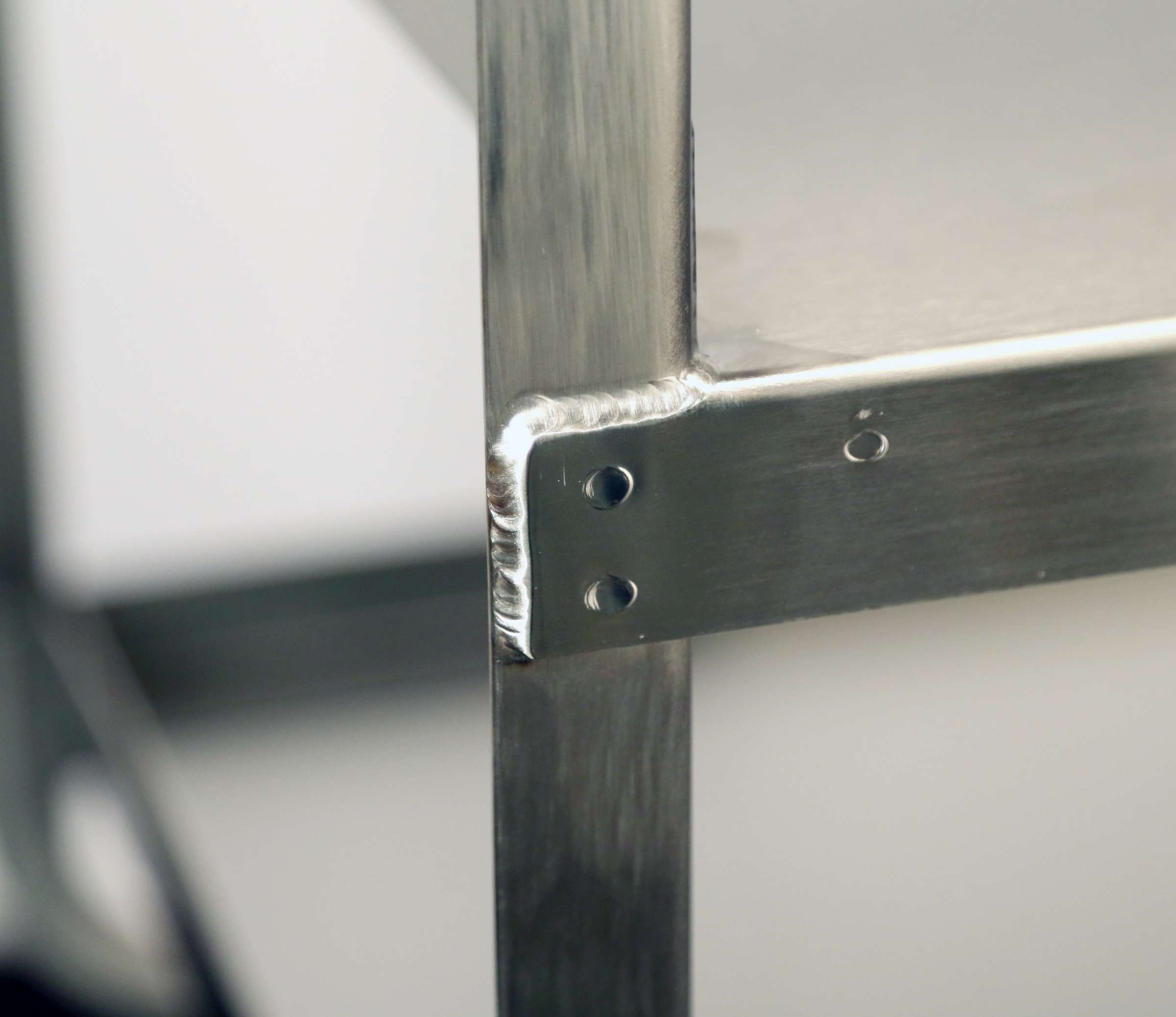

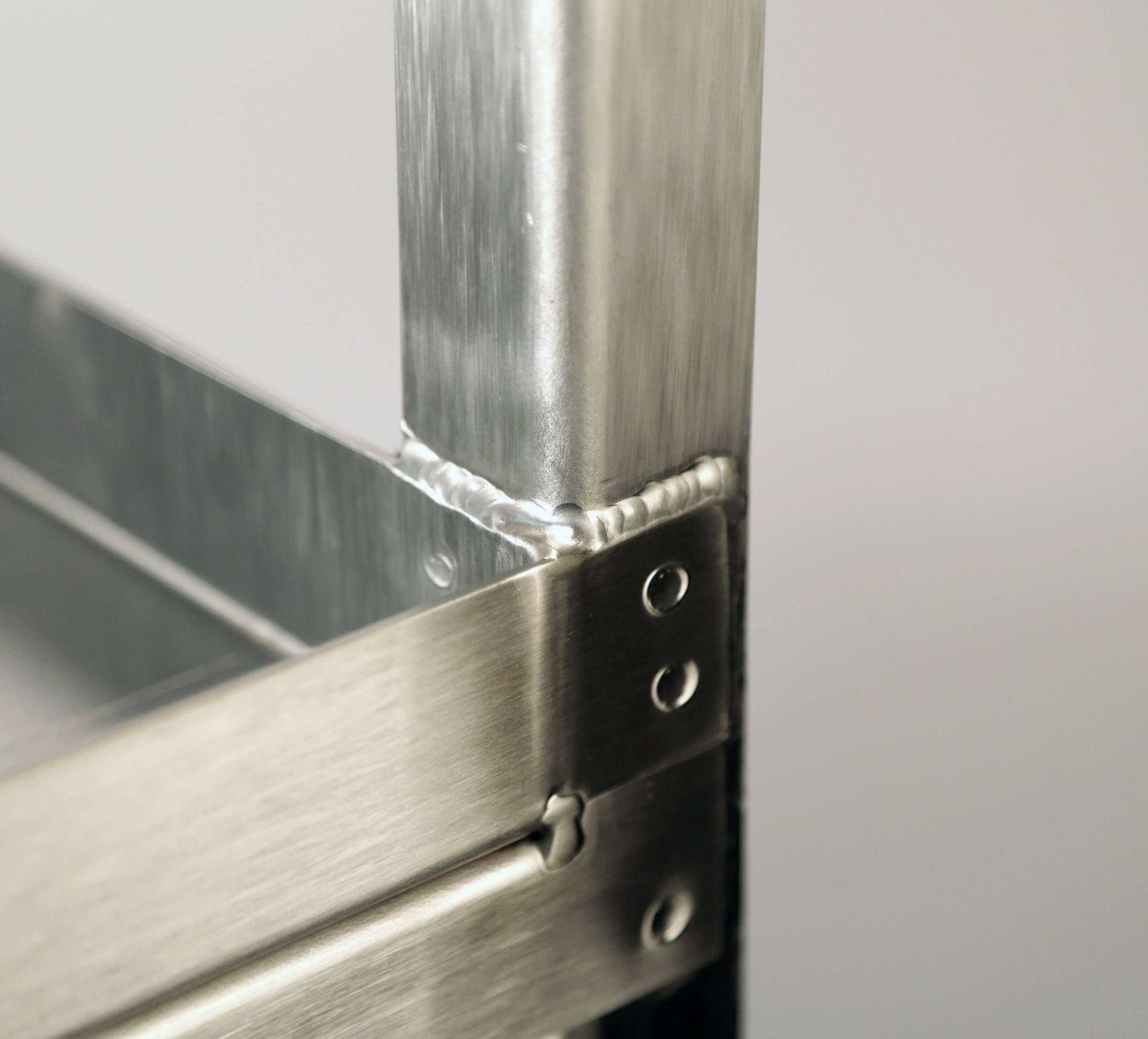

- All joints are full bead welded to better withstand heavy loads and frequent use.

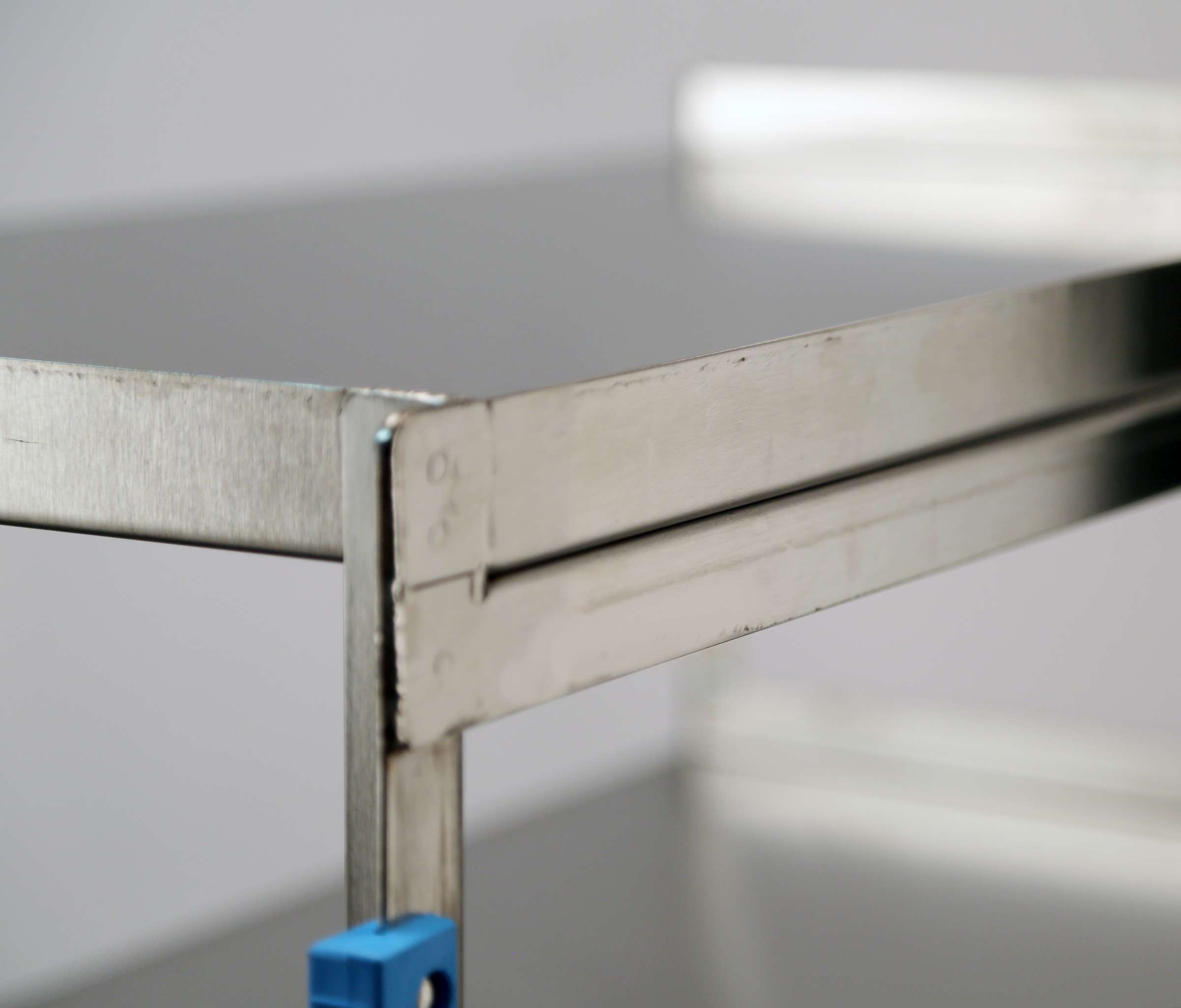

- Reinforced edges provides extra capacity for heavy loads.
- No-mark, extra load, cushion tread wheels absorb impact, reducing vibration and strain.
- Stainless steel is easy to clean and sanitize.

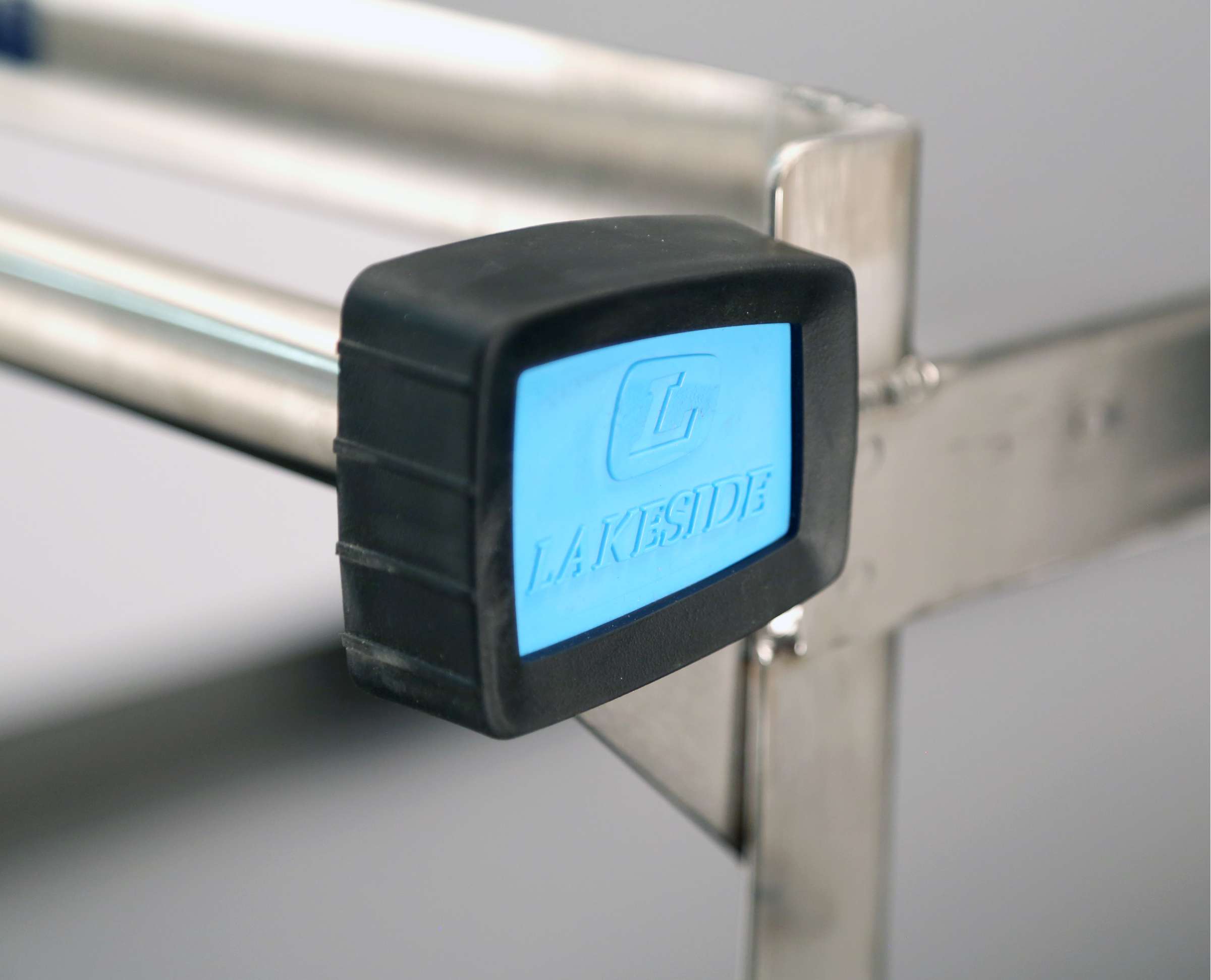

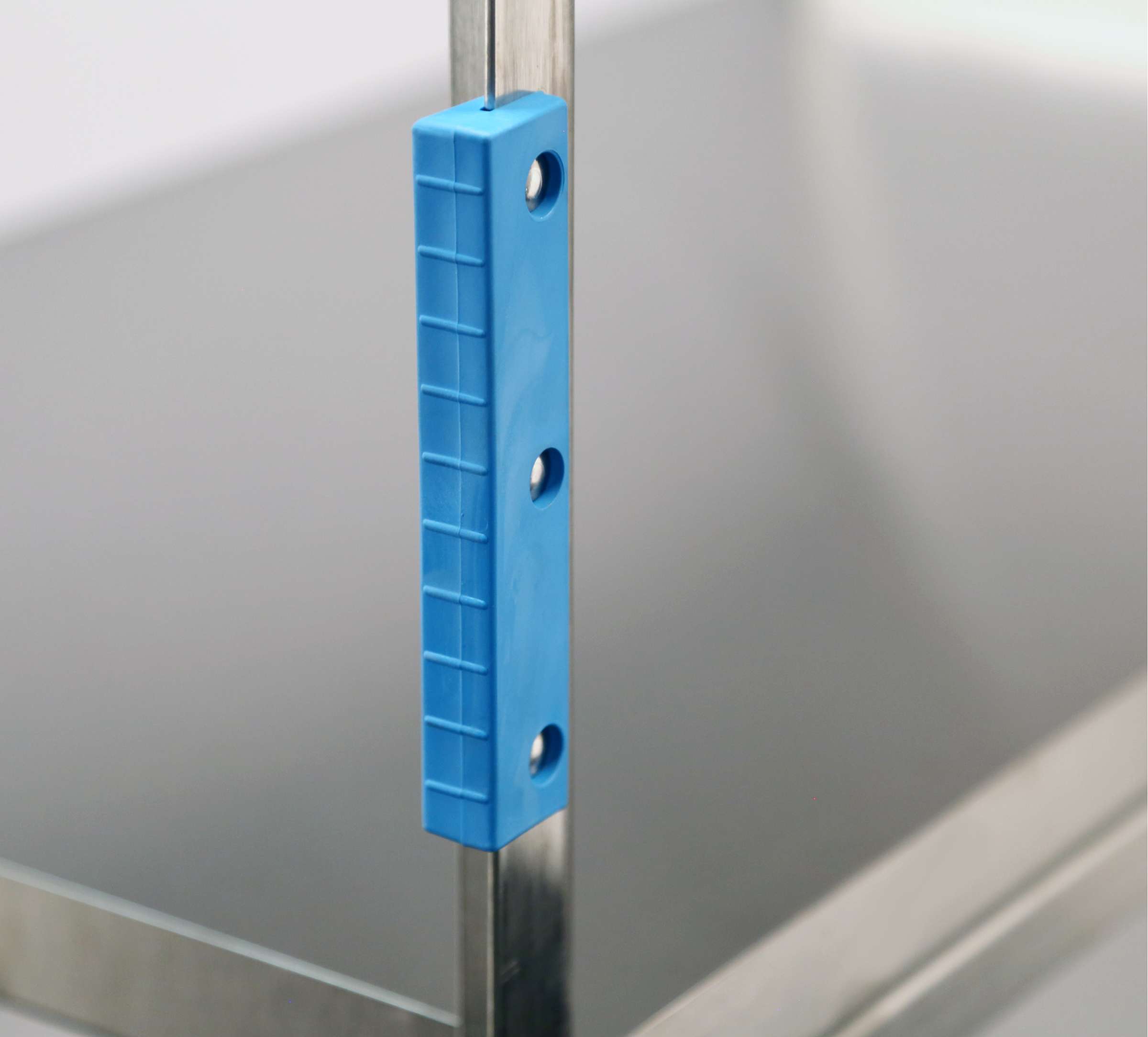

- Bumpers on legs and handles protect walls and furniture.
- This model is NSF listed.
Specifications
Collapse| Brand | Lakeside |
|---|---|
| Caster Size-Front (in) | 8 |
| Caster Size-Rear (in) | 5 |
| Caster Type | 2 Ea. Fixed, 2 Ea. Swivel, Extra-Load, No-Mark Polyurethane |
| Country of Origin | US |
| Ergonomic Design | Traditional |
| Frame Type | Formed Angle |
| Item Dimensions (L x W x H) | 42 in x 25.88 in x 37.38 in |
| Model | Traditional |
| NSF | Yes |
| Number of Shelves | 3 |
| Proposition 65 Warning | This product can expose you to wood dust and chemicals including chromium, which are known to the State of California to cause cancer. For more information, go to: www.P65Warnings.ca.gov. |
| Shelf Clearance (in) | 11.375 |
| Shelf Dimensions | 24 in x 36 in |
| Shipping Class | 125 |
| Shipping Dimensions | 46 × 29 × 41.5 in |
| Shipping Method | LTL |
| Shipping Weight | 133 lbs |
| Weight Capacity (lbs) | 1000 |

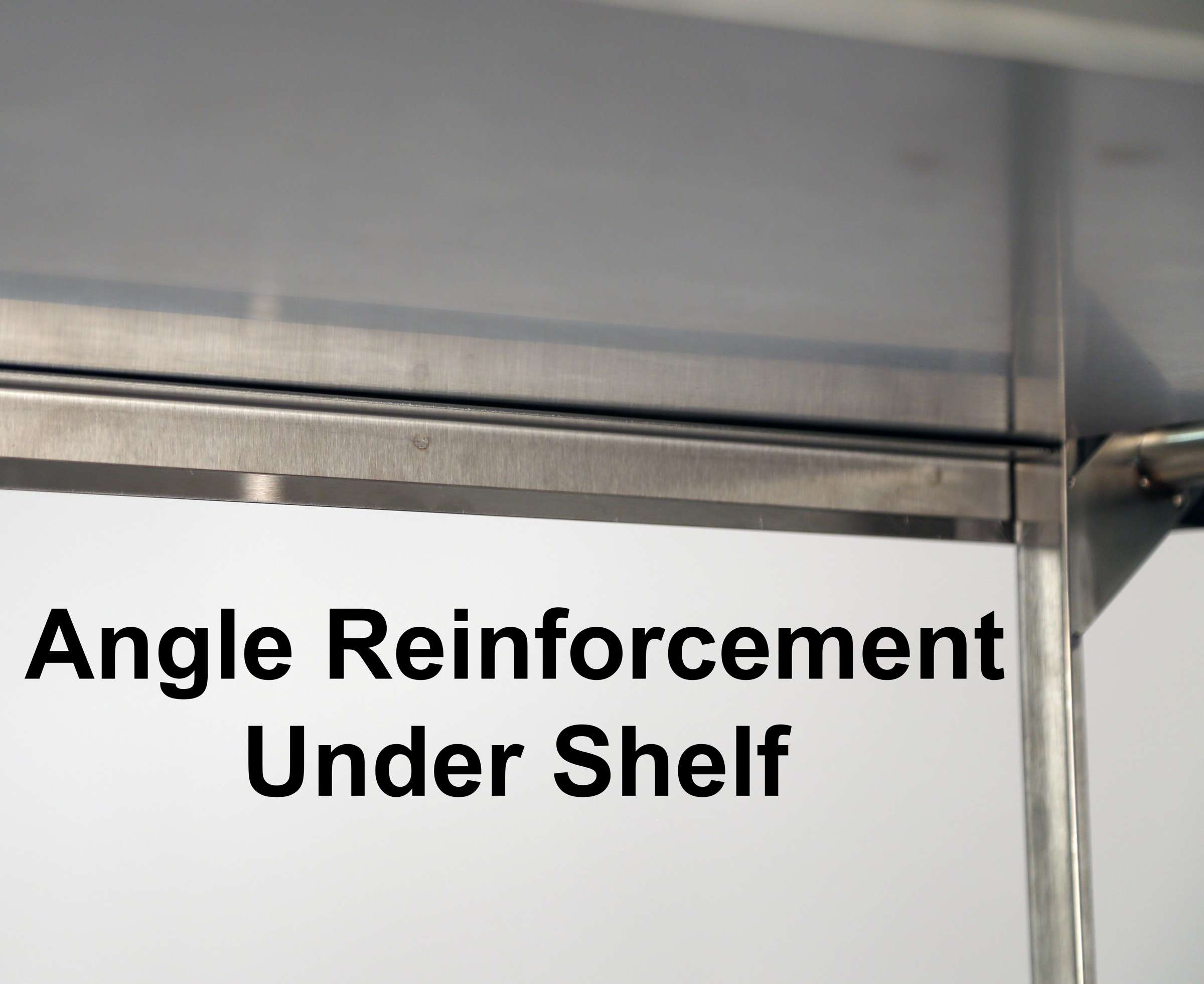

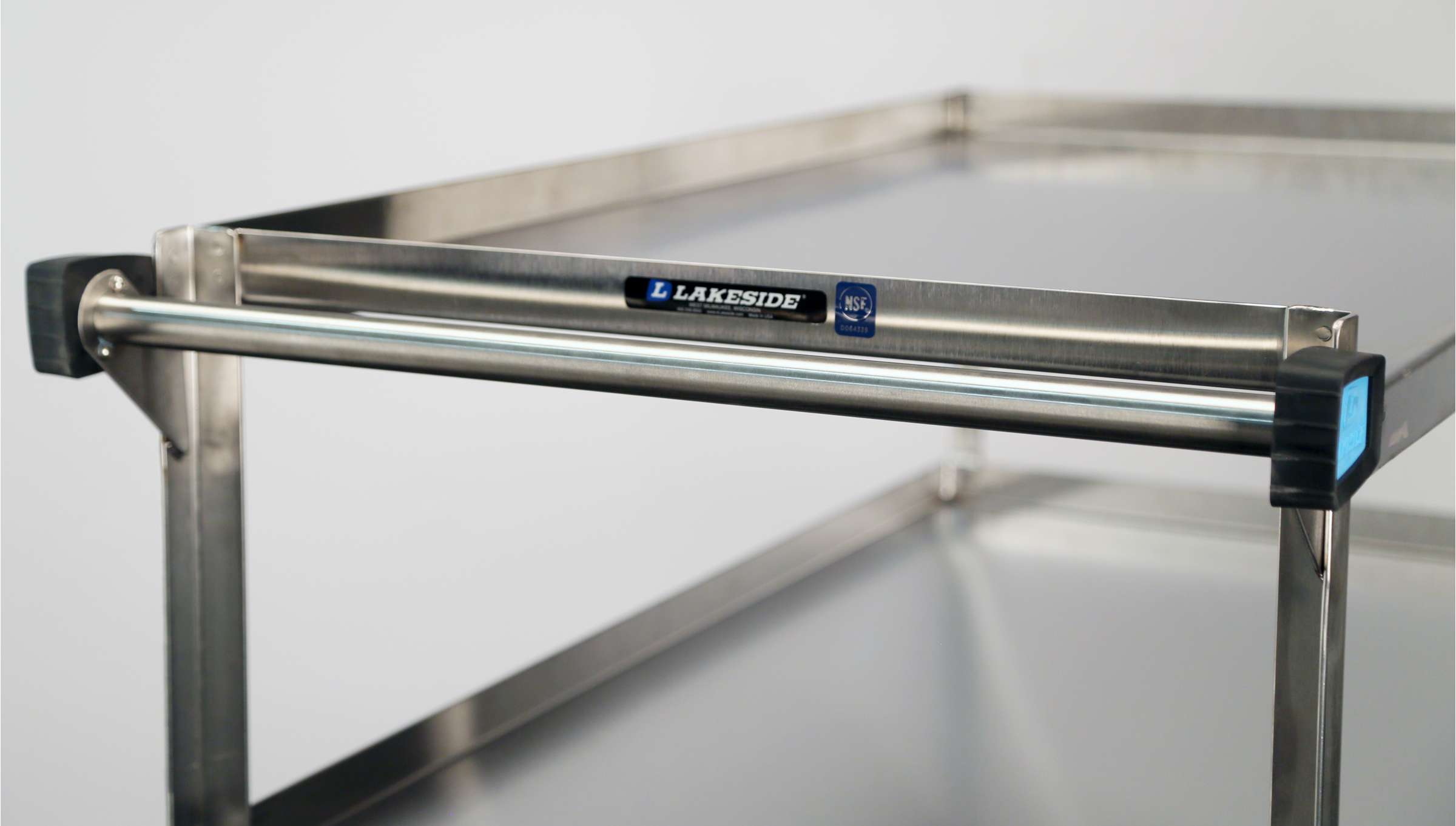

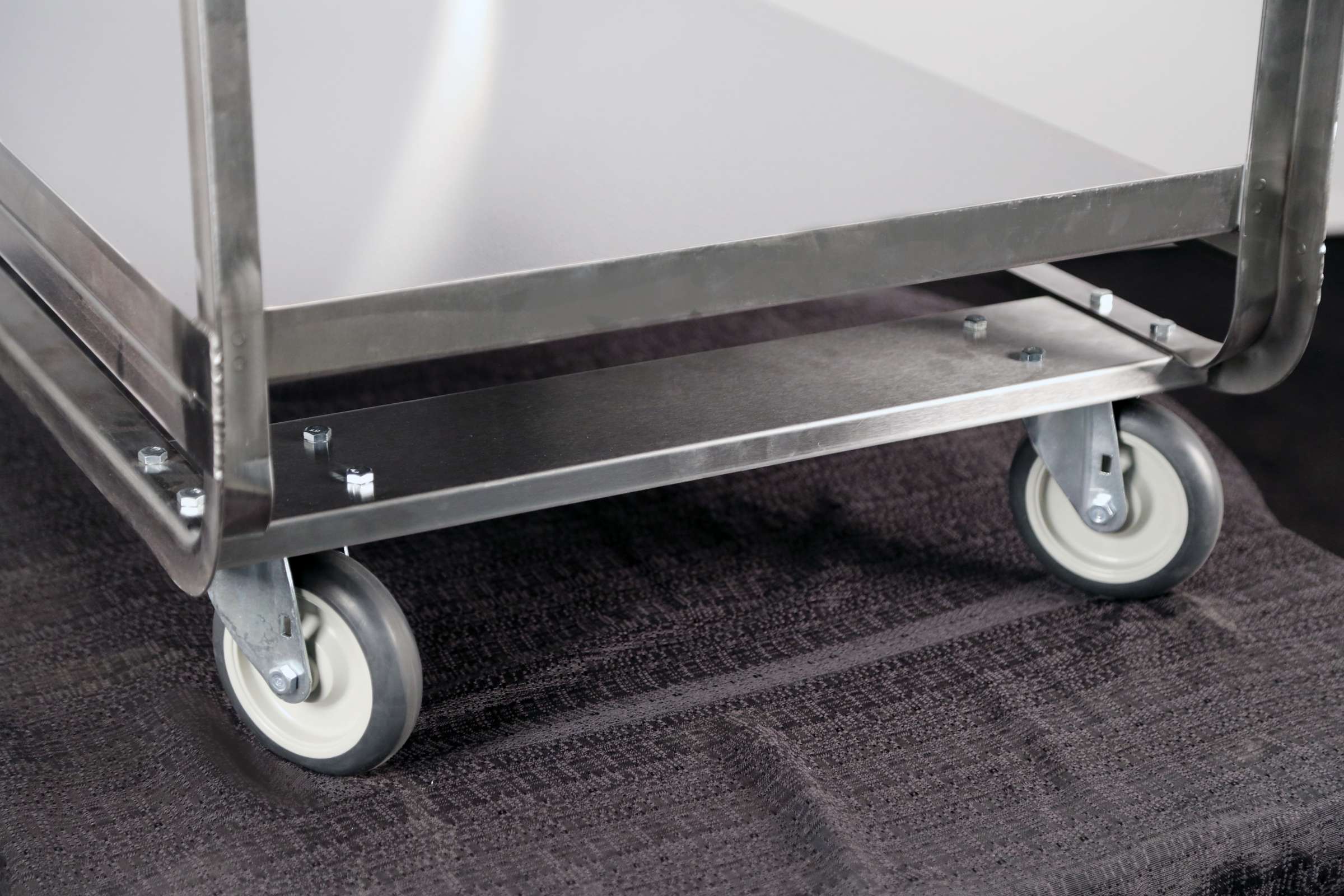

Product Specification: Unit shall be of fully welded stainless steel construction. Legs and frame shall be of U-frame design, eliminating the need for corner reinforcements. Leg/frame shall be 11-gauge angle stainless steel. Shelves shall be of 14-gauge stainless steel, and shall be continuously TIG welded to vertical leg frames. Shelves shall be reinforced front and back with 18-gauge angle welded to the shelf underside. Unit shall have two each 5" (127 mm) diameter extra-load swivel casters with 1-1/4" (32 mm) wide non-marking polyurethane wheels, and 2 each 8" diameter extra-load wheels mounted to a fixed axle. Swivel casters shall be plate type and shall be bolted to an 18-gauge 5" wide stainless steel cross member with a galvanized reinforcement. Unit shall have push handle made of 18 gauge 1" O.D stainless steel tubing. Handle mounting brackets shall be continuously TIG welded to vertical leg frame. Unit shall have two each bumpers mounted to handle ends and two each 6" (152 mm) bumpers riveted to front legs. Unit shall be NSF listed.
Durability Index
Collapse| Durability Index | |||||
| Maximum Weight | 300lbs / 135KG | 500lbs / 230KG | 700lbs / 320KG | 1000lbs / 450KG | 1500lbs / 680KG |
| Weight Visualization | 75 plates | 150 plates | 250 plates | 100 12oz. cans | 30 cases of wine |
| Vinyl Tile | |||||
| Indoor Concrete | |||||
| Ceramic Tile | |||||
| Carpet | |||||
| Outdoor Uneven | |||||
| Daily Hour Usage | Up to 3 | 4 to 9 | 9 to 12 | 10 to 18 | Up to 24 hours |
| Ideal Usage | Dining area bussing, set-up tray station, soiled dish station | Dining room bussing, set-up tray station, soiled dish station. | Receiving goods, moving loads for warewashing | Receiving dock and storage room, loading and moving dishes and flatware. | Casinos and correctional facilities, receiving dock and warehousing |
| Legs Steel Gauge | 20 | 16 | 11 | 11 | 11 or 14 |
| Shelf Steel Gauge | 22 | 20 | 18 | 14 | 14 |
| Caster Size | 3-1/2” to 4” | 4” to 5” | 5" to 8” | 5" to 8” | 6" to 8” |
Manuals & Documents
CollapseOptions & Accessories
CollapseStandard products are available in a wide variety of common caster and bumper configurations or commercial grade vinyl and laminate finishes. These options along with accessories are listed below. Please contact us if you would like to further modify or customize a product to meet your needs.
Factory Installed Options
2 brake and 2 no brake casters
Available Finish Options
Stainless Steel
Custom
CollapseChoose from a wide selection of proven product designs that can also be modified or customized to meet specific applications. Our experienced customer service team is ready to help with a quote today!
Design Your OwnCase Studies
Specimen Cart
The "Specimen Cart" was based on the Lakeside 711 Stainless Steel Utility Cart. It was customized to secure and carry a specimen rack without tipping or spillage.
Refreshment Cart
The "Refreshment Cart" was based on the Lakeside 958 Stainless Steel Utility Cart. It was used by a hospital to bring beverages and snack foods to multiple floors.
