Rest easy knowing your prep work is safely supported by a Lakeside®roll-in cooler rack.

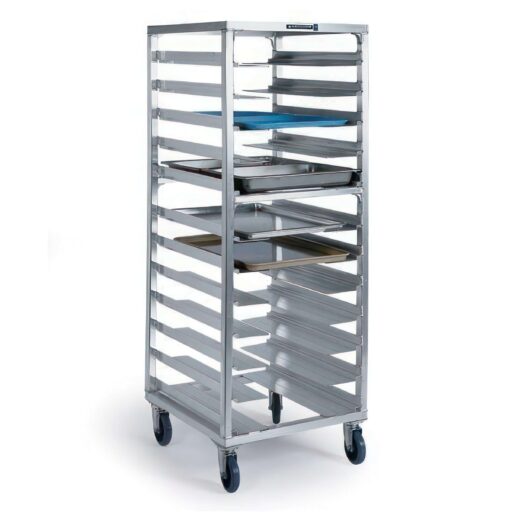

Rest easy knowing your prep work is safely supported by a Lakeside®roll-in cooler rack. The Lakeside 8529 Aluminum Sheet Pan Rack has an 18 Pan Capacity. Extra gussets are welded in all corners to prevent alignment "racking” and distortion, so your trays stay level and steady. The angle style ledges are continuously welded to the uprights to withstand rugged use. This unit's reinforced bottom design provides added durability during offsite transport. Accommodates 18" x 26" or 14" x 18" pans and trays. This model has angle-style ledges with a 3" spacing for 18 full-size pans. Nobody beats Lakeside's lead times. Made in the USA.
Current availability as soon as 18 business days
- Extra gussets are welded in all corners to prevent alignment "racking” and distortion, so your trays stay level and steady.
- Angle style ledges are continuously welded to the uprights to withstand rugged use.
- Reinforced bottom design provides added durability during offsite transport.
- Accommodates 18" x 26" or 14" x 18" pans and trays.
- Angle-style ledge with 3" spacing for 18 full-size pans.
Specifications
Collapse| Brand | Lakeside |
|---|---|
| Caster Size (in) | 5 |
| Caster Type | All swivel, No-Mark Polyurethane |
| Country of Origin | US |
| Item Dimensions (L x W x H) | 26 in x 20.5 in x 64 in |
| Ledge Spacing (in) | 3 |
| Ledge Type | Angle |
| Material | Aluminum |
| NSF | Yes |
| Pan Capacity | 18 |
| Proposition 65 Warning | This product can expose you to wood dust and chemicals including chromium, which are known to the State of California to cause cancer. For more information, go to: www.P65Warnings.ca.gov. |
| Shipping Class | 125 |
| Shipping Dimensions | 29 × 23 × 67 in |
| Shipping Method | LTL |
| Shipping Weight | 48 lbs |
Product Specification: Shall be constructed of hi-tensile, corrosion-resistant, rust proof, primary extruded aluminum, Type 6463-T5 alloy. All seams shall be heli-arc welded and sealed (no rivets). Tray ledges 1-¼” x 1-5/8” x .100 extruded aluminum welded to frame on 3” or 5” centers, with channel type ledges to be on 1½” centers. Unit shall have four horizontal supports located at the top and center of 1” x 1” x .070 wall aluminum tube. Corner gussets of 1-½” x 1-½” x 5/8” thick angle shall be welded to the inside angles (bottom side) where horizontal cross bracing meets vertical uprights with a 4½” continuous weld. Unit base shall be constructed of 1” x 1” x .070 wall tube welded into a rectangular frame (20-½” x 26”), with two extra laterals where caster mount reinforcement plates shall be inset. reinforcement caster plates (2-¾” x 4” x 3/8”), pre-tapped for ¼” bolts, shall be welded to this frame. Casters shall be plate mount type, with 5” diameter non-marking polyurethane wheel, full swivel design with sealed ball bearing races.
