Award-winning plate dispensing with the sturdiness of tubular frame design.
Award-winning plate dispensing with the sturdiness of tubular frame design. The Lakeside 8307 Mobile Plate Dispenser is a heated three-stack tubular frame that holds 6-5/8 to 7-1/4 inch plates. The lightweight open tubular frame design is for back-of-the-house applications. Adjusting the height level is easy and convenient, simply detach and attach springs as needed. The Easy-Glide™ design dispenses plates smoothly while preventing jams. All 4”swivel casters, 2 with brake, allows easy maneuverability. Each heated dispenser features its own thermostatic control. The extra load casters provide additional support for full dispensers. This model’s stainless steel material is easy to clean. Nobody beats Lakeside lead times. Made in the USA.
Current availability as soon as 9 business days
- Lightweight open tubular frame design for back-of-the-house applications.

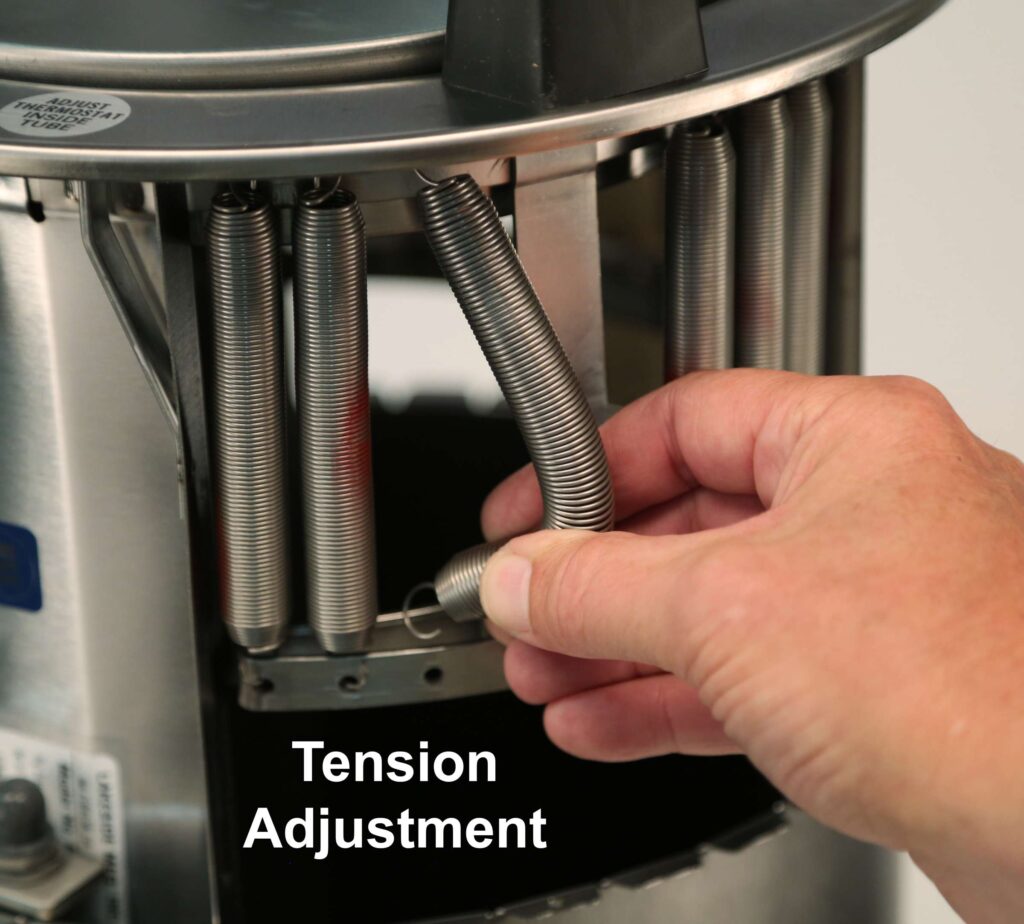

- Adjusting height level is easy and convenient. Simply detach and attach springs as needed.
- The Easy-Glide™ design dispenses plates smoothly while preventing jams.

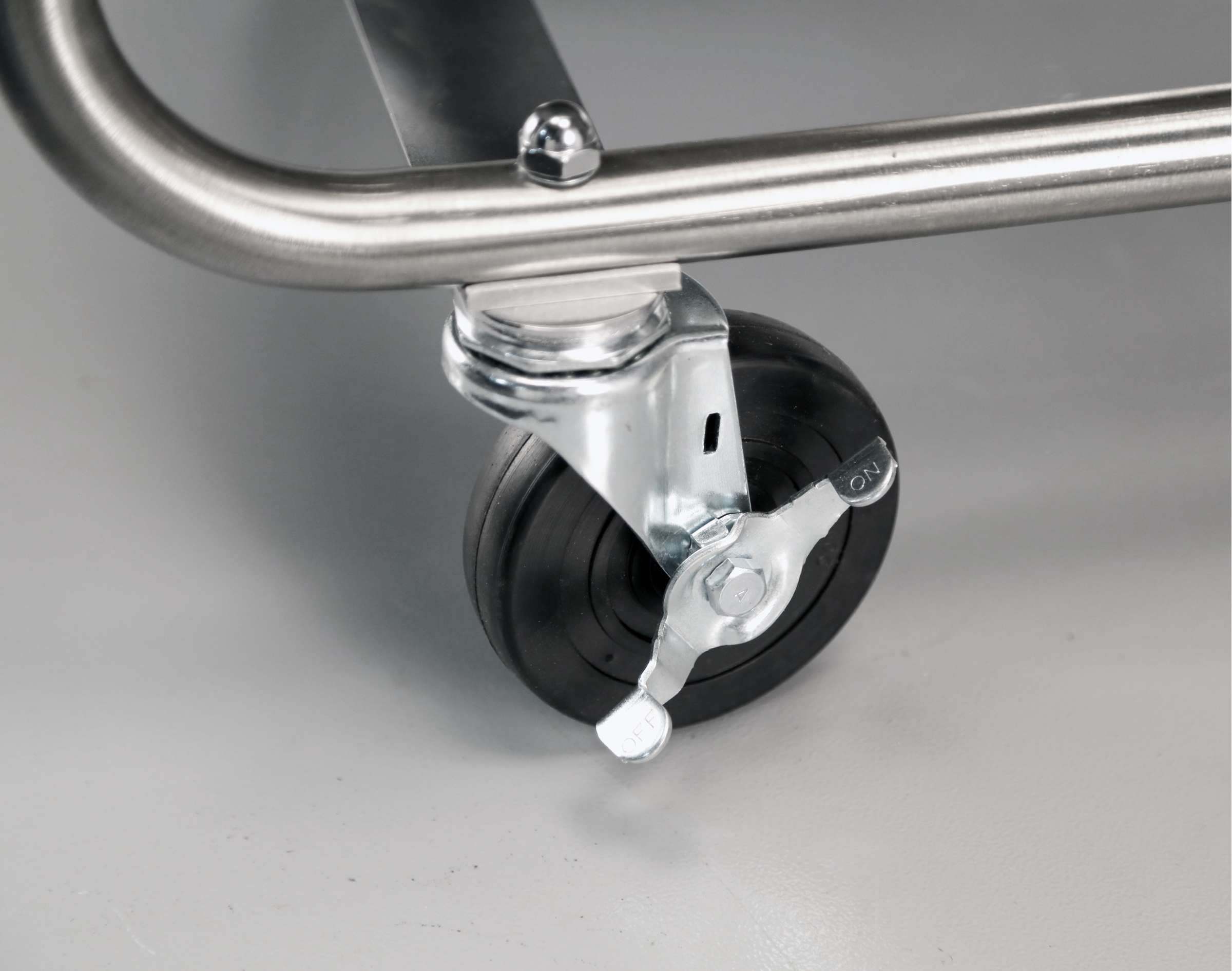

- All 4”swivel casters, 2 with brake, allow easy maneuverability.

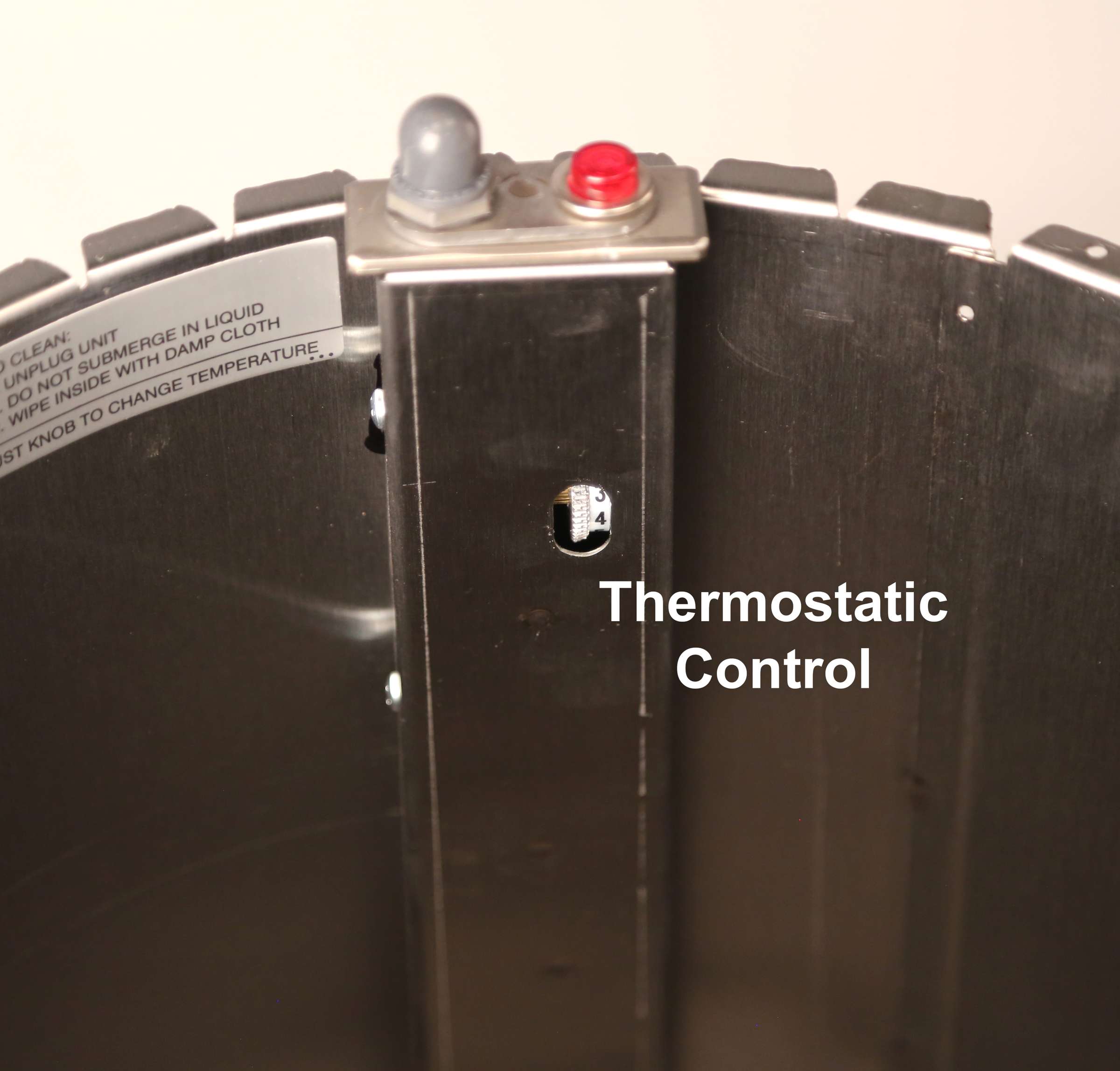

- Each heated dispenser features its own thermostatic control.
- Extra load casters provide additional support for full dispensers.
- Stainless steel material is easy to clean.
Specifications
Collapse| Accommodates Plate Size (in) | 7 |
|---|---|
| Adjust-a-Fit | No |
| Body Style | Tubular Frame |
| Brand | Lakeside |
| Caster Size (in) | 4 |
| Caster Type | All-Swivel 2 Ea. w/Brake |
| Country of Origin | US |
| Dish Shape | Round |
| Electrical Amps | 7.5 |
| Electrical Volts | 120VAC |
| Electrical Watts | 900 |
| Heating | Heated |
| Item Dimensions (L x W x H) | 52.5 in x 17.75 in x 38.31 in |
| Model | Tubular |
| NSF | Yes |
| Number of Stacks | 3 |
| Plate Size Range | 6 5/8 to 7 1/4 |
| Proposition 65 Warning | This product can expose you to wood dust and chemicals including chromium, which are known to the State of California to cause cancer. For more information, go to: www.P65Warnings.ca.gov. |
| Shipping Class | 92.5 |
| Shipping Dimensions | 41.5 × 18.5 × 41.5 in |
| Shipping Method | UPS/FedEx Oversized |
| Shipping Weight | 109 lbs |
| UL Listed | Yes |
Product Specification: Mobile Frame: Mobile frame shall be of 18-gauge wall stainless steel 1” tubing. Tubing frame shall be of “U-frame” design with bottom tie bars for extra strength. Units shall have 18-gauge top and bottom shelves to provide dispenser tube stability. Top and bottom shelves shall be bolted to tubular frame. Casters shall be 4” (102 mm) diameter extra-load swivel stem type (two with locking brake). Units shall be NSF listed.
Dispenser Tubes: Dispenser tubes shall be of welded stainless steel construction and shall drop into mobile unit top and bottom shelf openings. Dispensers shall be fully enclosed in 22-gauge stainless steel, shall hang from top shelf opening by an 18-gauge flange ring, and feature three each 22-gauge vertical side supports welded to 20-gauge bottom plate. Self-leveling dish carriage shall be of welded stainless steel construction and shall travel vertically in dispenser tube with nylon guides for smooth operation. Carriage shall have 22-gauge removable dish platform. Dispensers shall feature flange mounted perimeter extension springs, which are detachable from the dish carriage without tools to provide adjustment for different weight dishes. Each dispenser shall have a vertical stacking capacity of 25” (635 mm).

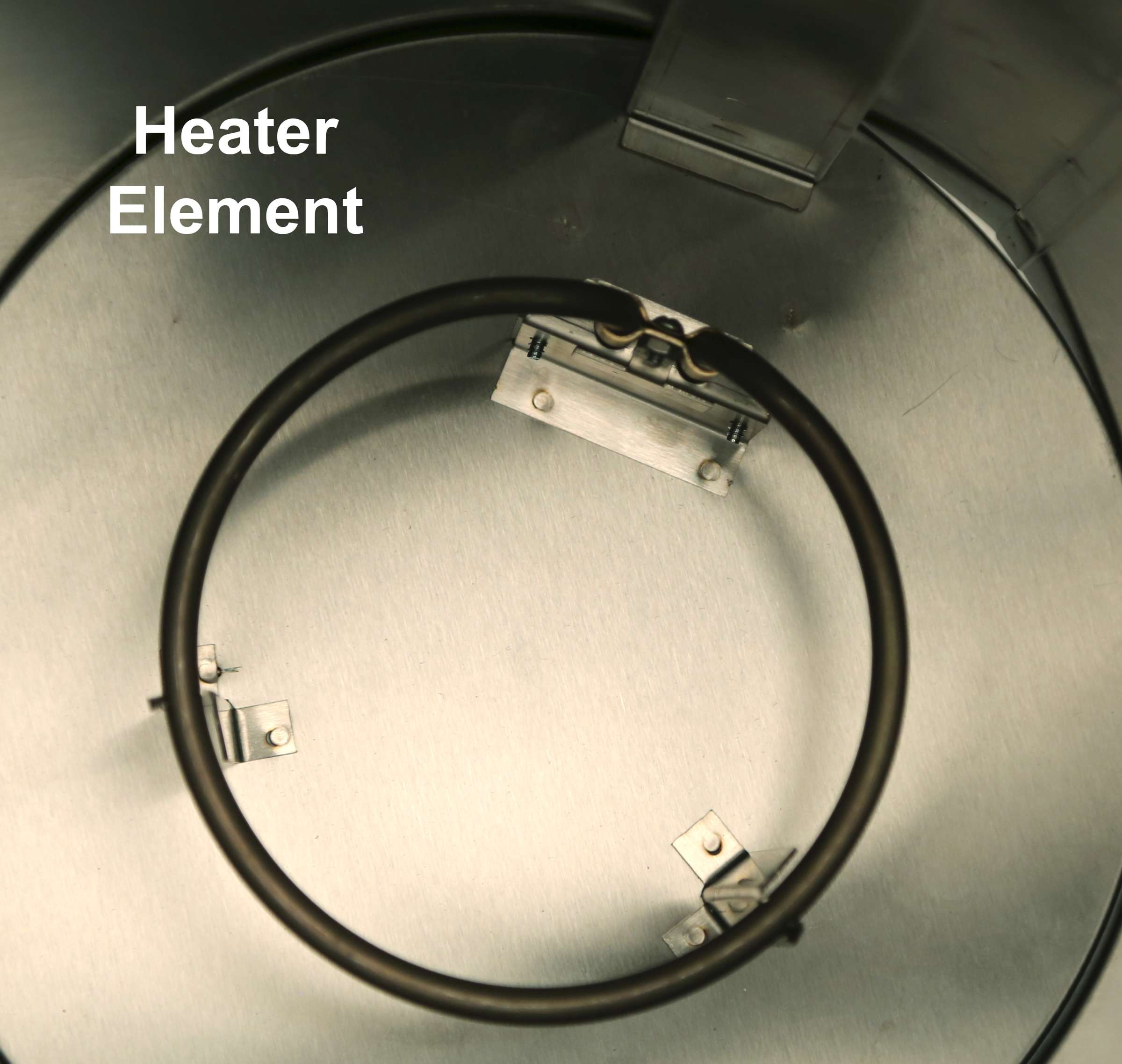

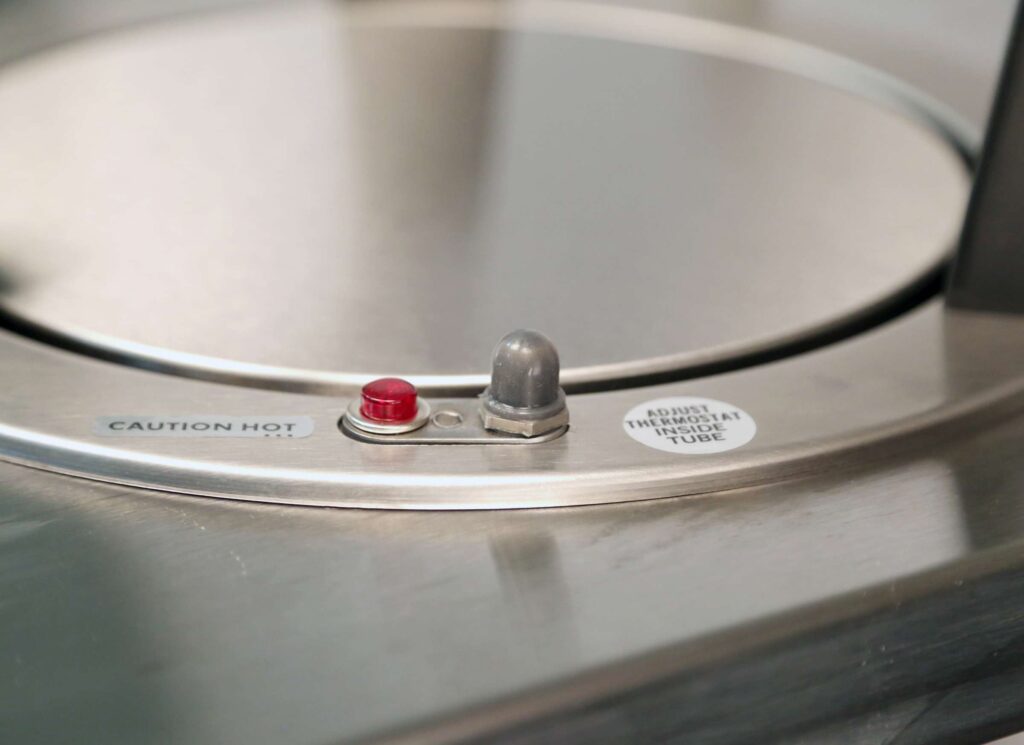

Heating System: Unit shall be 120 VAC 60 Hz and shall have 6’ (1829 mm) power supply cord with 5-15P (5-20P on Models 8409 and 8410) NEMA plug for 120 VAC. Mobile frame shall have electrical junction box mounted under bottom shelf, with hard wired power cable to each dispenser. Dispenser tubes shall have a circular bottom mounted 300 or 450 watt heater element to provide convection heat. Heating system shall feature thermostatic control in a tamper protective location with safe high-end shut off. Control shall have Infinite settings between low and high temperature cut-outs. Thermostat shall be field adjustable for average interior air temperature between 100°F (38°C) and 175°F (79°C) at middle adjustable thermostatic setting. On-off switch and power indicator light shall be mounted on top flange of dispenser. Average dish temperature rise of 40°F (22°C) above ambient shall be achieved within one hour of initial heating cycle at middle adjustable thermostatic setting. Mobile tubular frame and dispenser tubes shall be UL listed.
