This cantilever dispenser conveniently and ergonomically distributes trays to your customers.

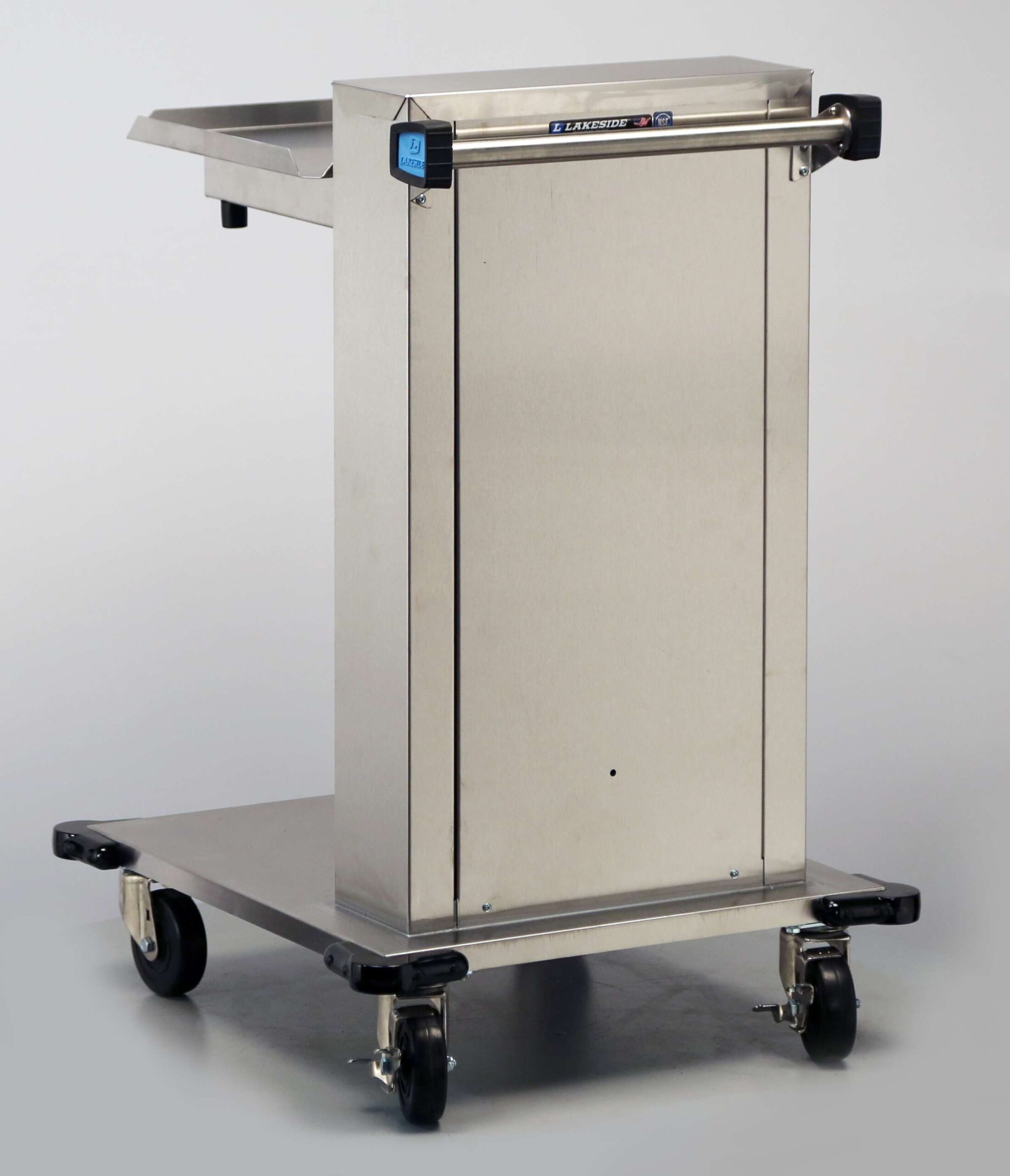

This cantilever dispenser conveniently and ergonomically distributes trays to your customers. The Lakeside 818 Mobile Cantilever Tray Dispenser is open with (1) platform that fits 14 x 18-in. trays and a 150 tray capacity. Open on three sides cantilever dispensing is easier to load, provides flexible storage and is a lighter design for easy transport. The spring tension keeps trays and racks at the proper height for dispensing to minimize back strain. Adjusting height levels is easy and convenient. Simply detach and attach springs as needed. The handy platform base stores used or empty trays or racks for added storage. All 4”swivel casters, 2 with brake, allow easy maneuverability. Stainless steel construction increases durability. The stainless steel material is easy to clean and sanitize. This unit has corner bumpers that protects walls and furnishings. Nobody beats Lakeside’s lead times. Made in the USA.
Current availability as soon as 8 business days
- Open on three sides cantilever dispensing is easier to load, provides flexible storage and is a lighter design for easy transport.
- Spring tension keeps trays and racks at the proper height for dispensing to minimize back strain.

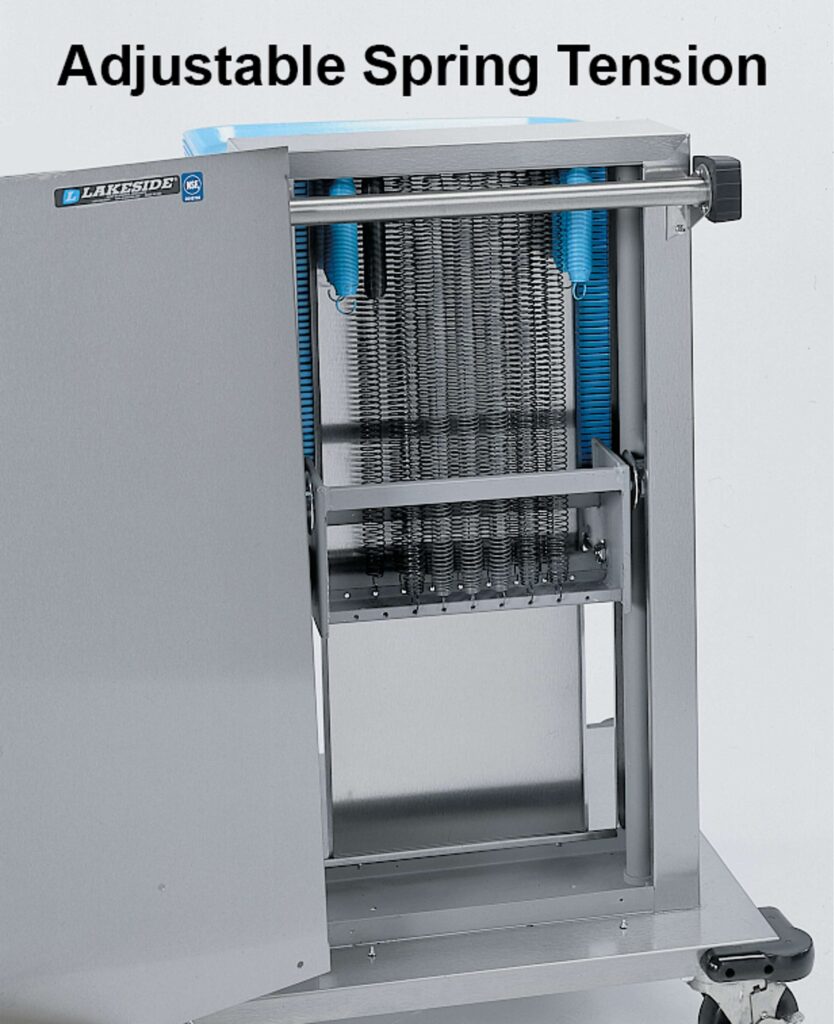

- Adjusting the height level is easy and convenient, simply detach and attach springs as needed.
- Handy platform base stores used or empty trays or racks for added storage.
- All 4” swivel casters, 2 with brake, allow easy maneuverability.
- Stainless steel construction increases durability.
- Stainless steel material is easy to clean and sanitize.
- Corner bumpers protect walls and furnishings.
- Corner bumpers protect walls and furnishings.
Specifications
Collapse| Brand | Lakeside |
|---|---|
| Cabinet Style | Open |
| Caster Size (in) | 4 |
| Caster Type | 2 Ea. w/Brake, All swivel |
| Country of Origin | US |
| Dispensing Size | 14 in x 18 in Trays |
| Item Dimensions (L x W x H) | 26.5 in x 23.5 in x 36.5 in |
| Model | Cantilever |
| NSF | Yes |
| Proposition 65 Warning | This product can expose you to wood dust and chemicals including chromium, which are known to the State of California to cause cancer. For more information, go to: www.P65Warnings.ca.gov. |
| Shipping Class | 92.5 |
| Shipping Dimensions | 29.5 × 27 × 40 in |
| Shipping Method | UPS/FedEx Oversized |
| Shipping Weight | 94 lbs |
| Style | Cantilever |
| Tray Capacity | 150 |
Product Specification: Shall be of all-welded stainless steel construction and shall accept trays or racks on a stainless steel spring-loaded, self-leveling carriage(s). Carriage(s) shall be cantilevered to a vertical support on two each 14-gauge arms and shall feature a bank of tension springs concealed inside the vertical support. Spring tension for carriage(s) shall be field adjustable without tools by hooking or unhooking springs to or from the carriage, providing proper dispensing level. Carriage frame movement shall feature roller bearing guides for smooth vertical operation. Carriage platform shall be of 18-gauge stainless steel and vertical support panels and top shall be of 20-gauge stainless steel. Unit base shall be of 18-gauge stainless steel and feature vinyl corner bumpers. Unit shall have four each extra-load 4” diameter casters, two each with brake. Unit shall be NSF listed.
