Convected air plate dispensers provide even heat distribution to ensure faster, consistent and efficient plate heating.
Convected air plate dispensers provide even heat distribution to ensure faster, more consistent, and efficient plate heating. The Lakeside 7512 Mobile Plate Dispenser is a three-stack convection heated NSF dispenser that holds 7 to 10-1/4 inch round plates. Even heat transfer to all plates helps the plates maintain safe food temperatures. The unique lid design holds in heat without gaskets, helping plates maintain heat. This model’s dispenser cabinet is fully insulated to conserve energy. Single heat control for 3 dispensers in a single compartment. Dispensers are self-lubricating for smooth, accident-free operation without maintenance. Self-leveling dispenser units are removable for convenient cleaning and tension adjustment. This unit’s push handle gives more control during transportation. All 5” swivel casters, 2 with brake, allow easy maneuverability. The stainless steel construction increases durability, and is easy to clean and sanitize. Each dispenser accommodates a 27” stack of plates with a diameter of 7 to 10 1⁄4 inch. Nobody beats Lakeside’s lead times. Made in the USA.
Current availability as soon as 14 business days
- Even heat transfer to all plates helps plates maintain safe food temperatures.
- Unique lid design holds in heat without gaskets, helping plates maintain heat.
- Dispenser cabinet is fully insulated to conserve energy.
- Single heat control for 3 dispensers in a single compartment.
- Dispensers are self-lubricating for smooth, accident-free operation without maintenance.

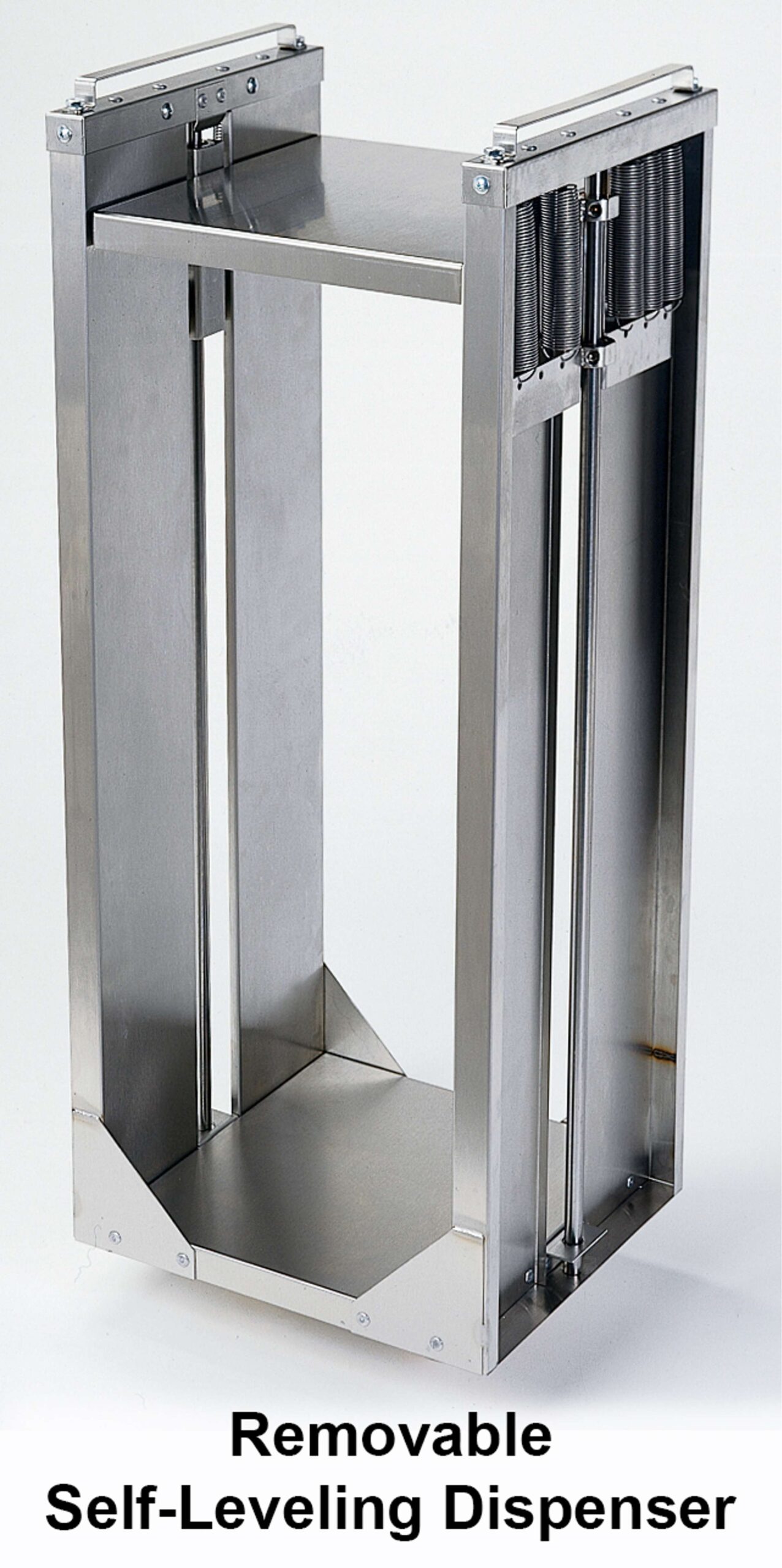

- Self-leveling dispenser units are removable for convenient cleaning and tension adjustment.
- Push handle for more control during transportation.
- All 5” swivel casters, 2 with brake, allow easy maneuverability.
- Stainless steel construction increases durability, and is easy to clean and sanitize.
- Each dispenser accommodates a 27” stack of plates with a diameter of 7 to 10 1⁄4”.
Specifications
Collapse| Accommodates Plate Size (in) | 10, 7, 7.5, 8, 8.5, 9, 9.5 |
|---|---|
| Adjust-a-Fit | No |
| Body Style | Cabinet |
| Brand | Lakeside |
| Caster Size (in) | 5 |
| Caster Type | All-Swivel 2 Ea. w/Brake |
| Country of Origin | US |
| Dish Shape | Round |
| Electrical Amps | 16.3 |
| Electrical Hertz | 60Hz |
| Electrical Volts | 208VAC, 220VAC |
| Electrical Watts | 3200 |
| Heating | Convection Heated |
| Item Dimensions (L x W x H) | 43.44 in x 23.75 in x 42.75 in |
| Item Weight | 1 lbs |
| Model | Convection |
| NSF | Yes |
| Number of Stacks | 3 |
| Plate Size Range | 7 to 10 1/4 |
| Proposition 65 Warning | This product can expose you to wood dust and chemicals including chromium, which are known to the State of California to cause cancer. For more information, go to: www.P65Warnings.ca.gov. |
| Shipping Class | 125 |
| Shipping Dimensions | 46 × 26 × 45 in |
| Shipping Method | LTL |
| Shipping Weight | 300 lbs |
| UL Listed | Yes |
Product Specification: CABINET: Exterior shall be constructed on 18-gauge 300 Series stainless steel. Inner wall of cabinet shall be constructed of .063 high-strength aluminum. All sides and top of cabinet shall be insulated with fiberglass for heat retention and energy efficiency. Cabinet lids shall feature hat channel design that does not require a gasket. The heating system shall be thermostatically controlled, using forced air with a 3200-watt element to heat the cabinet interior compartment. Unit shall be 208/220 VAC, 60 Hz and shall feature a 6´ (1829 mm) long 20 amp power cord with NEMA 6-20P plug. Cabinet shall be mounted on four 5” extra-load swivel casters (two with brake) with non-marking cushion tread wheel. Unit shall be UL and NSF listed.
DISPENSERS: Self-leveling dispensers shall be constructed of stainless steel with self-lubricating bearings that ride over vertical guide rods to prevent carriage binding. Self-leveling tension shall be adjusted without tools by hooking or unhooking tension springs from the carriage. Carriage shall have a vertical movement of 24” (610 mm), and shall accommodate a 27” (686 mm) high stack of plates that are between 7” and 10-1/4” in diameter. Dispensers shall feature lift-out handles for easy removal from cabinet for cleaning
and adjustment.
