Evenly heat pellets before serving to help maintain safe food temps throughout your meal delivery service.

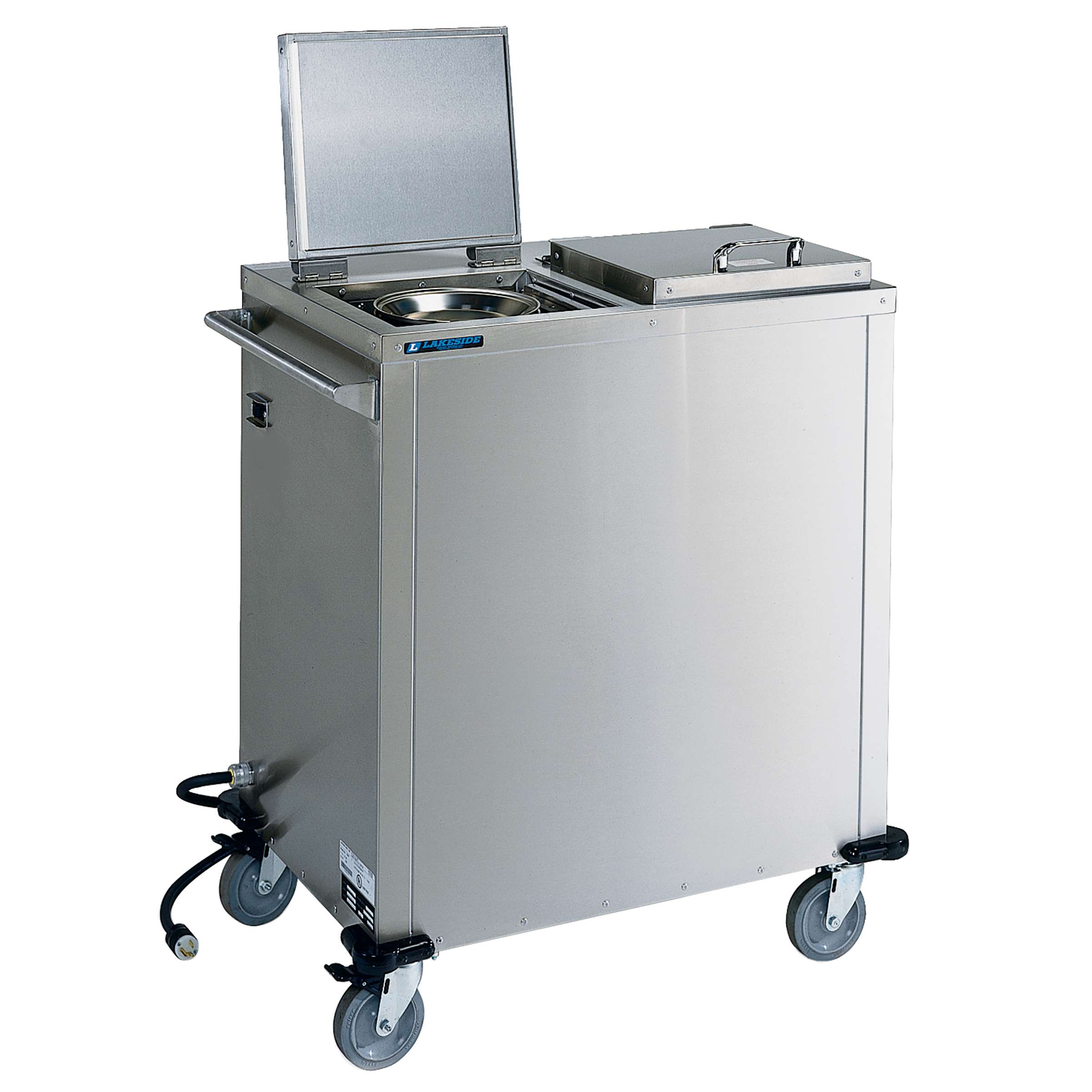

Evenly heat pellets before serving to help maintain safe food temps throughout your meal delivery service. The Lakeside 7501 Mobile Pellet Dispenser has (2) heated NSF self-leveling dispensers for (50) 7 to 10 1/4-in. pellets. The convected forced air heating ensures even heat transfer to all pellets to ensure each will maintain safe food temperatures. This unit’s unique lid design holds in heat without gaskets, so plates and pellets maintain heat. The dispenser cabinet is fully insulated to conserve energy. Single heat control for 2 dispensers in a single compartment. Dispensers are self-lubricating for smooth operation. The unit's thermostat temperature ranges from 250F-290F. All 5” swivel casters, 2 with brake, allow easy maneuverability. The stainless steel construction increases durability, easy to clean and sanitize. Each dispenser accommodates a 27” stack of pellets with a diameter of 7 to 10 1⁄4”.
Current availability as soon as 10 business days
- Convected forced air heating ensures even heat transfer to all pellets to ensure each pellet will maintain safe food temperatures.
- Unique lid design holds in heat without gaskets, so pellets maintain heat.
- Dispenser cabinet is fully insulated to conserve energy.
- Single heat control for 2 dispensers in a single compartment.
- Dispensers are self-lubricating for smooth operation.
- The unit's thermostat temperature ranges from 250F-290F.
- All 5” swivel casters, 2 with brake, allow easy maneuverability.
- Stainless steel construction increases durability, easy to clean and sanitize.
- Each dispenser accommodates a 27” stack of dishes or pellets with a diameter of 7 to 10 1⁄4”.
- Push handles both metal and plastic pellet systems for added flexibility/control.
Specifications
Collapse| Adjust-a-Fit | No |
|---|---|
| Brand | Lakeside |
| Caster Size (in) | 5 |
| Caster Type | 2 Ea. w/Brake, All swivel |
| Country of Origin | US |
| Electrical Amps | 16.3 |
| Electrical Hertz | 60Hz |
| Electrical Volts | 208VAC, 220VAC |
| Electrical Watts | 3200 |
| Heating | Convection Heated |
| Item Dimensions (L x W x H) | 33.38 in x 23.75 in x 42.75 in |
| Model | Convection |
| NSF | Yes |
| Number of Stacks | 2 |
| Plates / Pellets | Pellets |
| Power Source | Hard-Wired |
| Proposition 65 Warning | This product can expose you to wood dust and chemicals including chromium, which are known to the State of California to cause cancer. For more information, go to: www.P65Warnings.ca.gov. |
| Shipping Class | 125 |
| Shipping Dimensions | 38.5 × 38.5 × 50 in |
| Shipping Method | LTL |
| Shipping Weight | 260 lbs |
| UL Listed | Yes |
Product Specification: Cabinet: Exterior shall be constructed on 18-gauge 300 Series stainless steel. Inner wall of cabinet shall be constructed of .063 high-strength aluminum. All sides and top of cabinet shall be insulated with fiberglass for heat retention and energy efficiency. Cabinet lids shall feature hat channel design that does not require a gasket. The heating system shall be thermostatically controlled, using forced air with a 3200-watt element to heat the cabinet interior compartment. Unit shall be 208/220 VAC, 60 Hz and shall feature a 6´ (1829 mm) long 20 amp power cord with NEMA 6-20P plug. Cabinet shall be mounted on four 5” extra-load swivel casters (two with brake) with non-marking cushion tread wheel. Unit shall be UL and NSF listed.

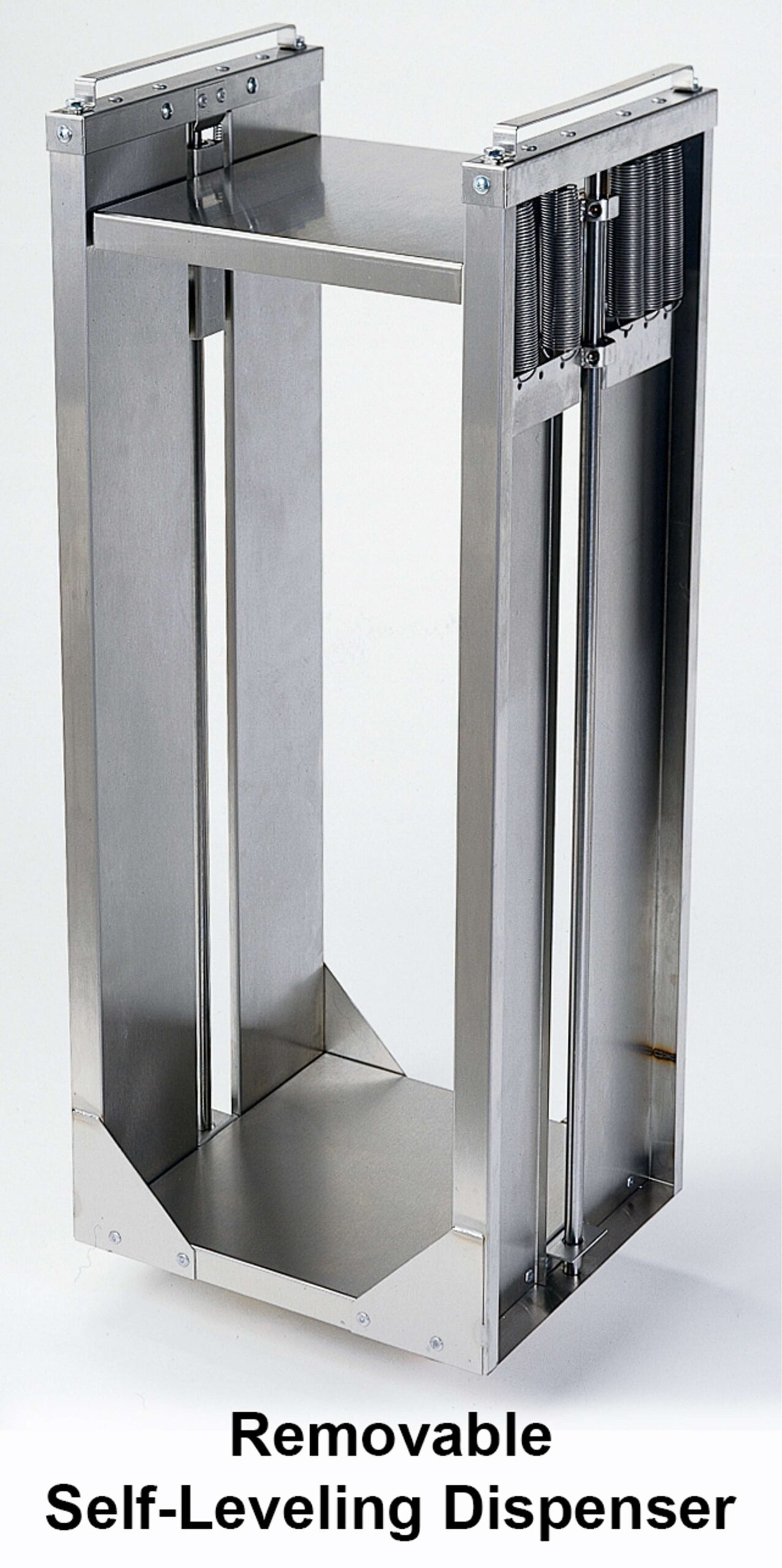

Dispensers: Self-leveling dispensers shall be constructed of stainless steel with self-lubricating bearings that ride over vertical guide rods to prevent carriage binding. Self-leveling tension shall be adjusted without tools by hooking or unhooking tension springs from the carriage. Carriage shall have a vertical movement of 24” (610 mm), and shall accommodate a 27” (686 mm) high stack of pellet bases that are between 7” and 10-1/4” in diameter. Dispensers shall feature lift-out handles for easy removal from cabinet for cleaning and adjustment.
