Guard rail carts reduce spills and breakage when transporting items that could easily tumble off shelves.

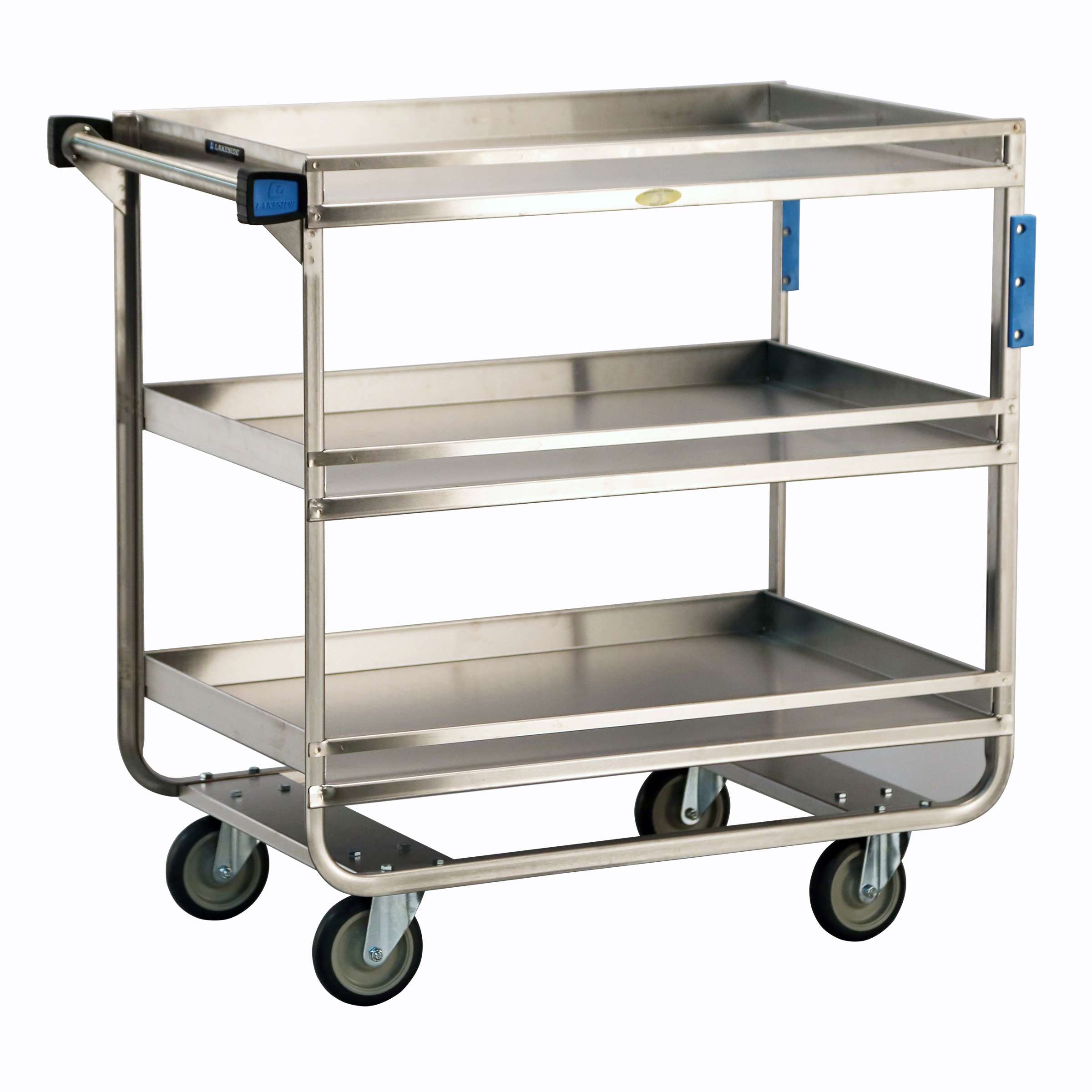

Guard Rail Utility Carts by Lakeside Manufacturing eliminate spills and breakage during transport of items that could easily tumble off the shelves. The Lakeside 730 Guard Rail Utility Cart with (3) shelves measuring 21" x 33" has a weight capacity of 700-Lb. This utility cart's front rails on all three of its shelves prevent items from falling during transport. This Lakeside cart's all-swivel casters provide ultimate maneuverability, while its tubular push handle comfortably guides the cart with ease. This cart's all-welded construction for a stronger structure and easier-to-clean surface. This Lakeside cart's stainless steel is easy to clean and sanitize, while its bumpers on legs and handles protect walls and furniture. Customize your design with Lakeside cart experts. Unbeatable lead times. Made in the USA.
Current availability as soon as 9 business days

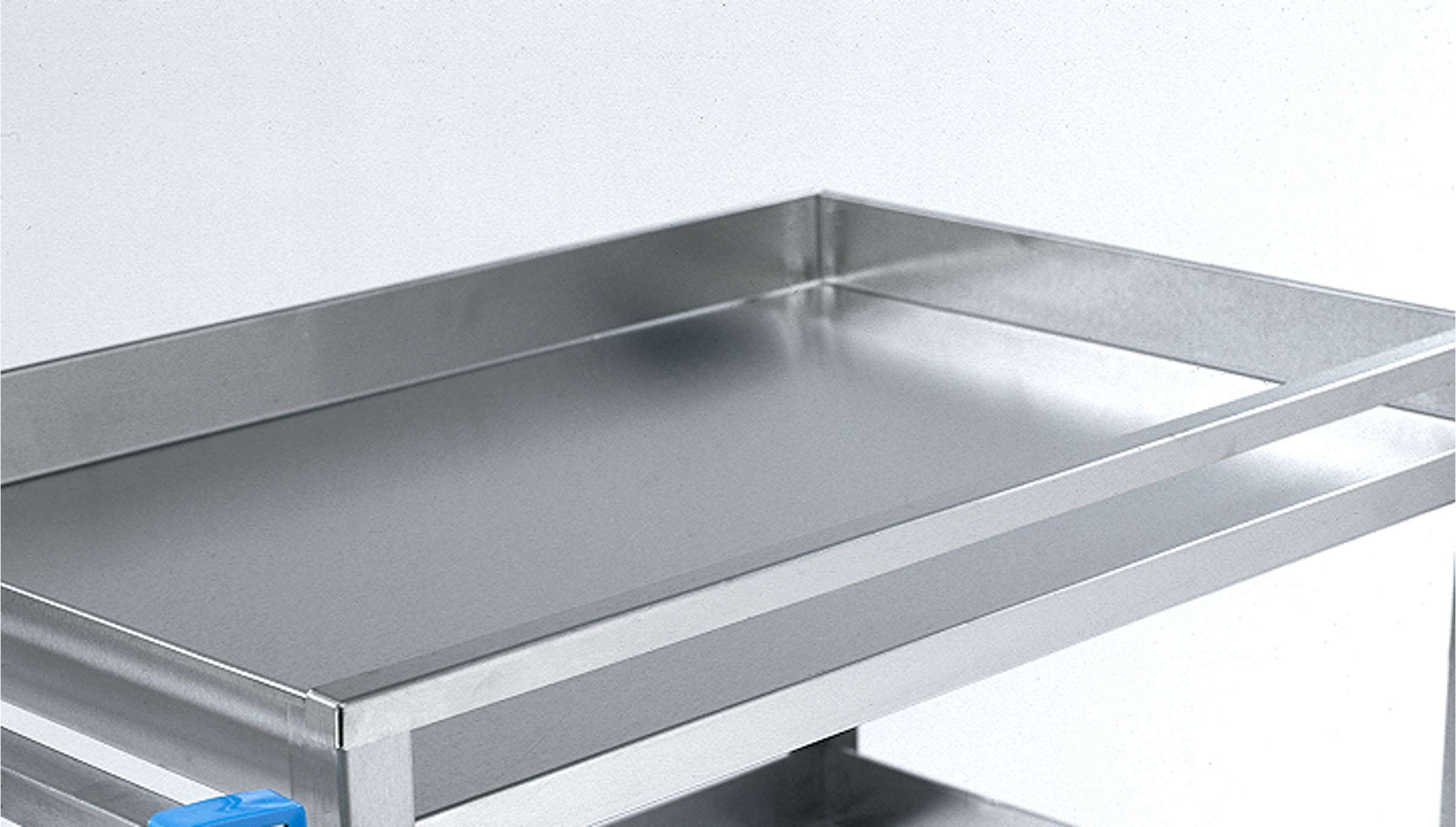

- Front rails on all three shelves prevent items from falling during transport.

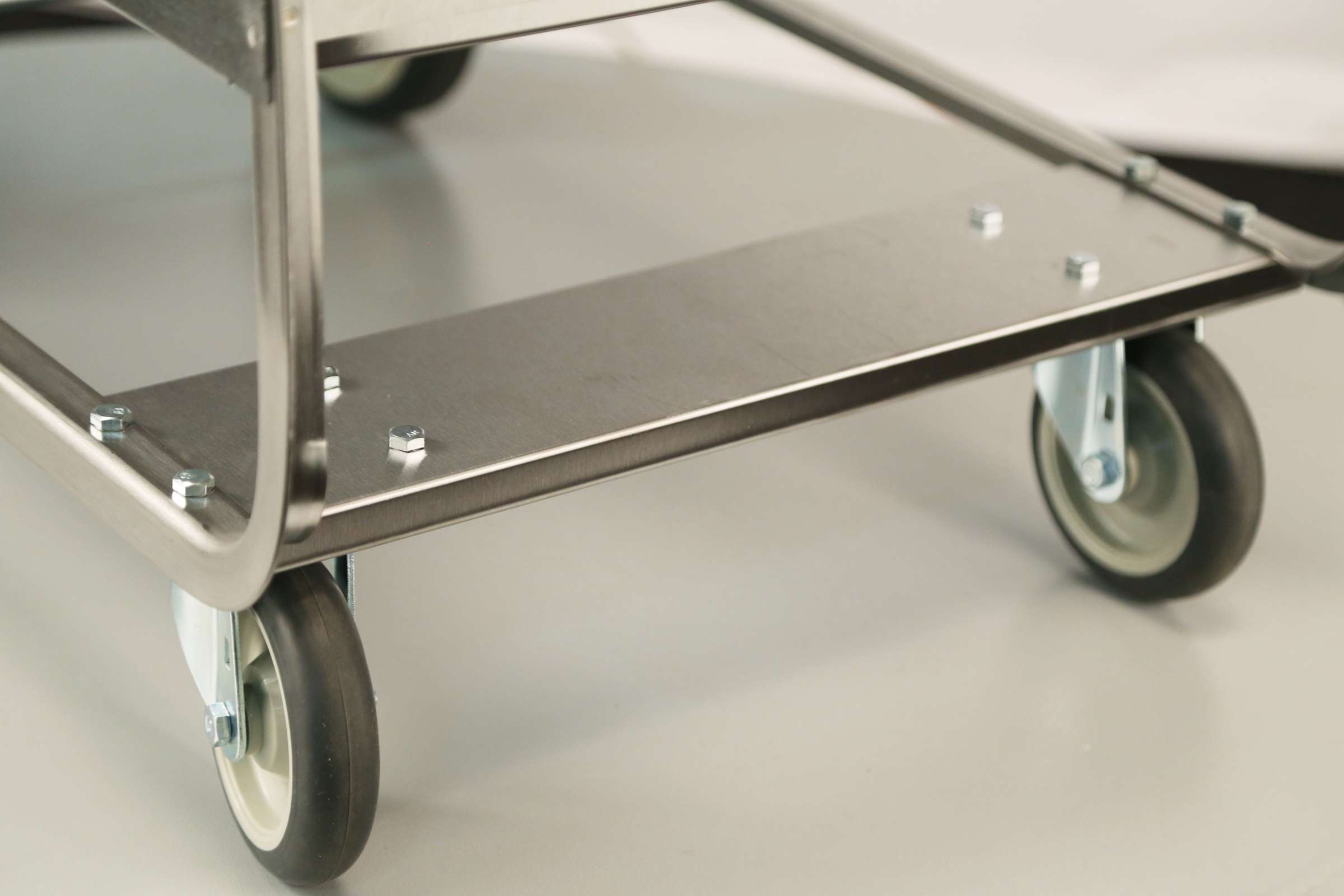

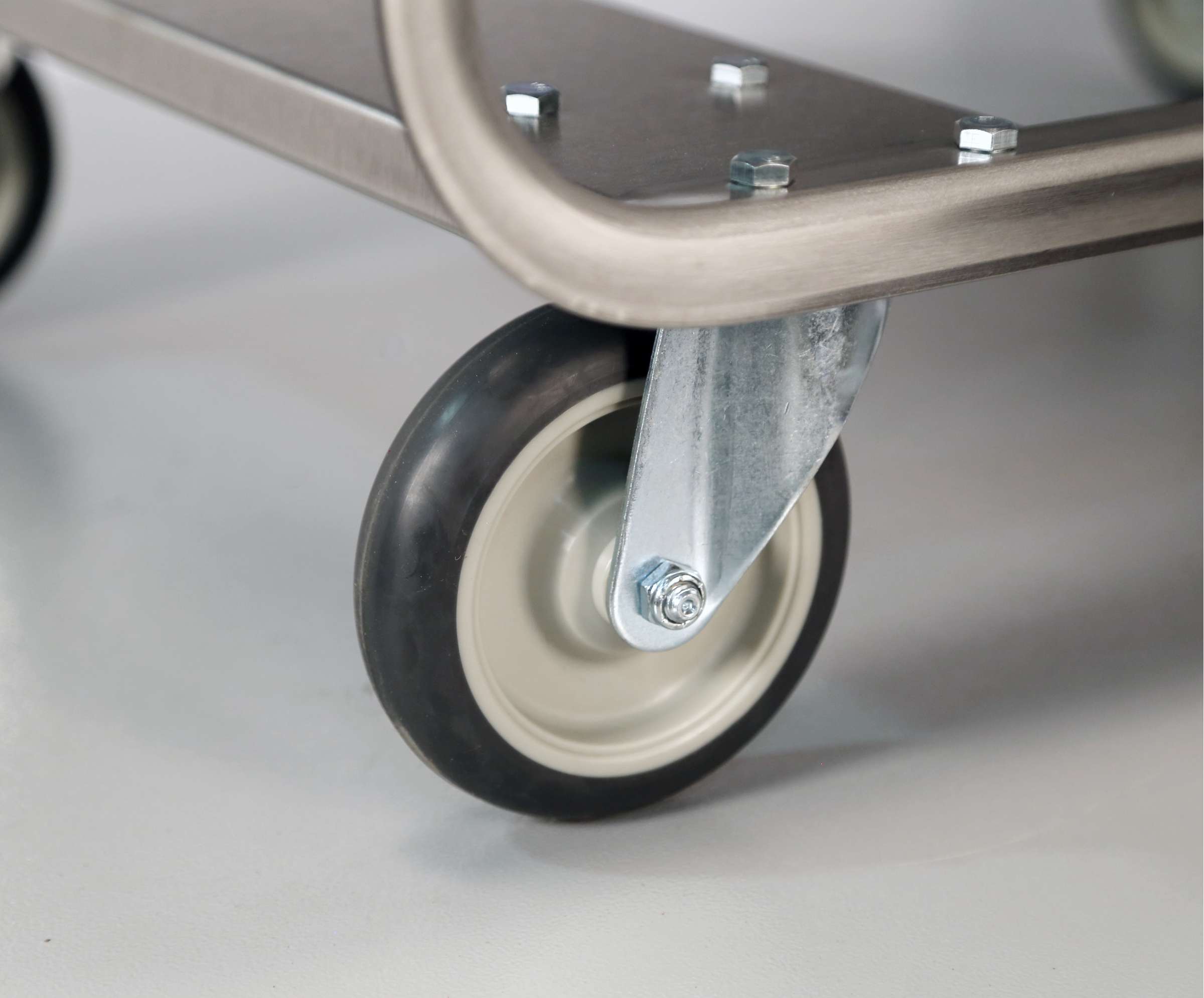

- All-swivel casters provide ultimate maneuverability.
- Tubular push handle for comfortably guiding cart with ease.
- All-welded construction for a stronger structure and easier-to-clean surface.
- Stainless steel is easy to clean and sanitize.

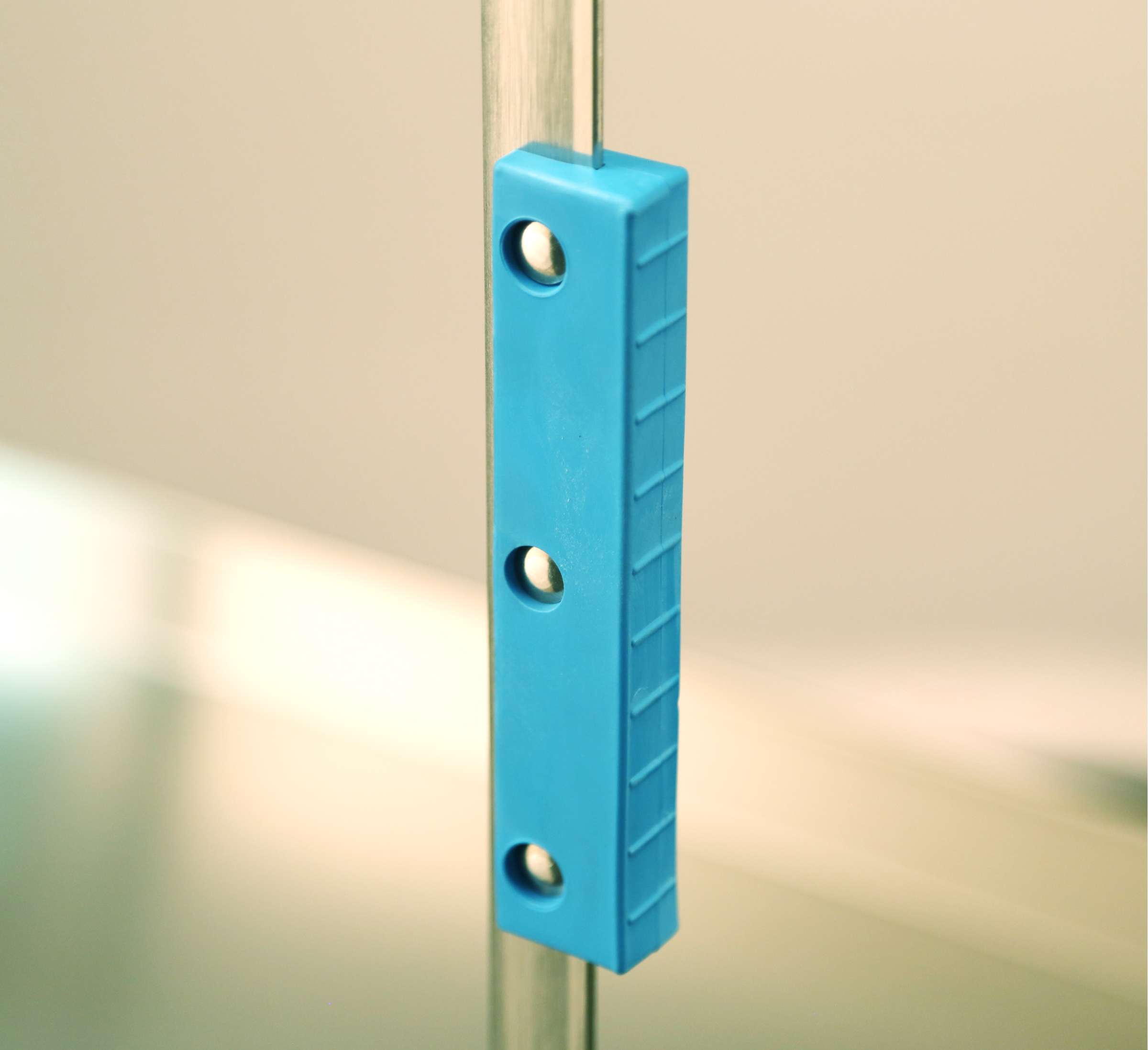

- Bumpers on legs and handles protect walls and furniture.
Specifications
Collapse| Brand | Lakeside |
|---|---|
| Caster Size (in) | 5 |
| Caster Type | All swivel |
| Country of Origin | US |
| Item Dimensions (L x W x H) | 38.63 in x 22.38 in x 37.25 in |
| Model | Guard Rail |
| NSF | No |
| Number of Shelves | 3 |
| Proposition 65 Warning | This product can expose you to wood dust and chemicals including chromium, which are known to the State of California to cause cancer. For more information, go to: www.P65Warnings.ca.gov. |
| Shelf Clearance (in) | 9.375 |
| Shelf Dimensions | 21 in x 33 in |
| Shipping Class | 125 |
| Shipping Dimensions | 43 × 26.5 × 41.5 in |
| Shipping Method | LTL |
| Shipping Weight | 78 lbs |
| Weight Capacity (lbs) | 700 |
Product Specification: Unit shall be Lakeside Model 730 and shall have stainless steel resistance spot welding to fasten shelves, guard rail and handle to frame with a weight capacity of 700-Lb. (136 kg). This cart shall have 3 ea. open shelves measuring 21" x 33" and be constructed of 18-gauge stainless steel. Shelves shall have 9-3/8" clearance and be reinforced with a hemmed front. Shelves shall have guard rail on open edge of top and middle shelf, and on all 4 sides of bottom shelf. Guard rail shall be constructed of 16-gauge stainless steel. All-welded angle legs shall be constructed of 11-gauge stainless steel. Unit shall have a stainless steel tubular handle welded to frame, and shall have corner bumpers mounted to front legs and ends of push handle. Bottom corners shall be rounded. Four each 5" double race, double-ball bearing swivel casters shall be mounted to the dolly frame. Unit shall be listed as heavy-duty. Made in USA.

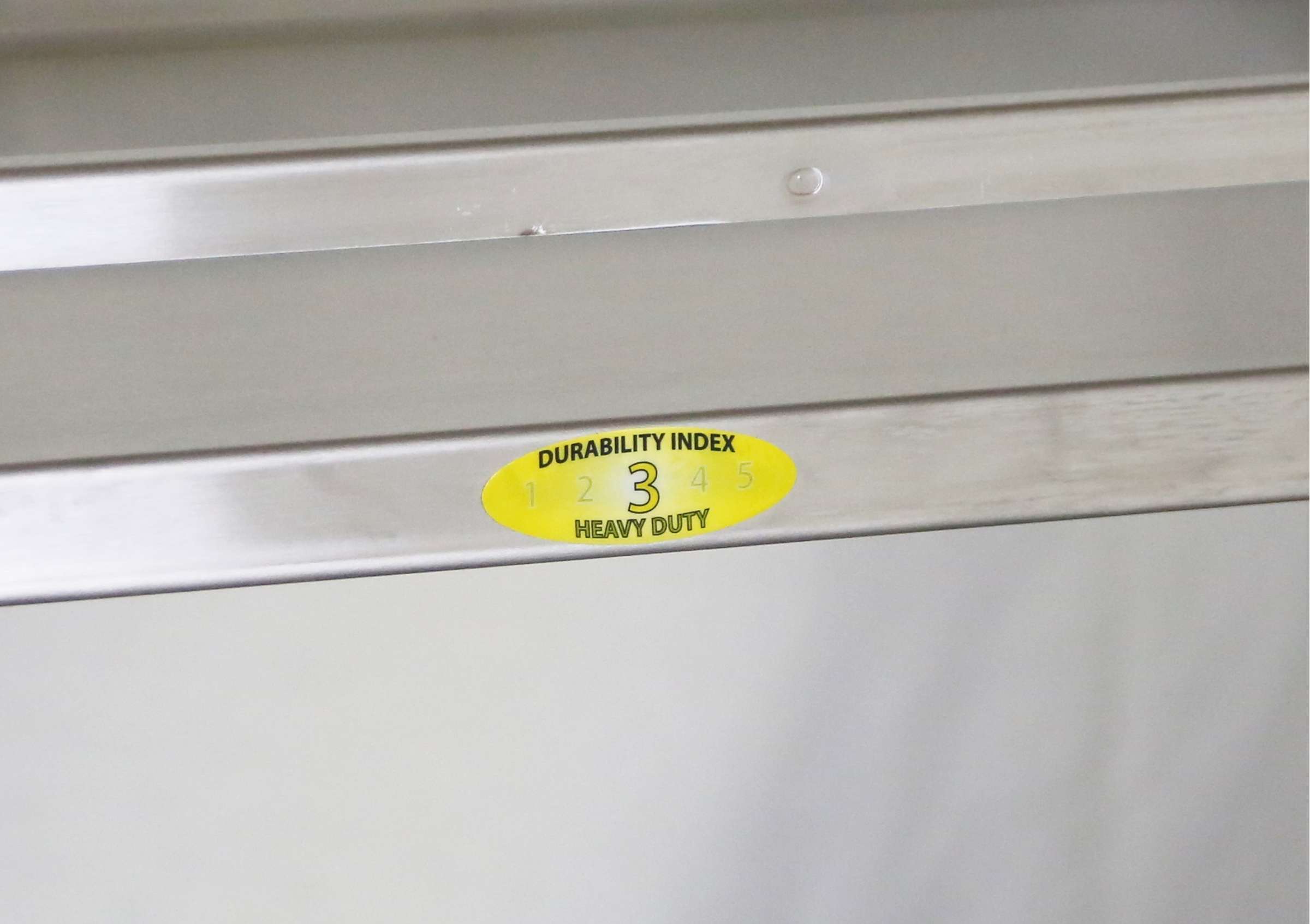

Durability Index
Collapse| Durability Index | |||||
| Maximum Weight | 300lbs / 135KG | 500lbs / 230KG | 700lbs / 320KG | 1000lbs / 450KG | 1500lbs / 680KG |
| Weight Visualization | 75 plates | 150 plates | 250 plates | 100 12oz. cans | 30 cases of wine |
| Vinyl Tile | |||||
| Indoor Concrete | |||||
| Ceramic Tile | |||||
| Carpet | |||||
| Outdoor Uneven | |||||
| Daily Hour Usage | Up to 3 | 4 to 9 | 9 to 12 | 10 to 18 | Up to 24 hours |
| Ideal Usage | Dining area bussing, set-up tray station, soiled dish station | Dining room bussing, set-up tray station, soiled dish station. | Receiving goods, moving loads for warewashing | Receiving dock and storage room, loading and moving dishes and flatware. | Casinos and correctional facilities, receiving dock and warehousing |
| Legs Steel Gauge | 20 | 16 | 11 | 11 | 11 or 14 |
| Shelf Steel Gauge | 22 | 20 | 18 | 14 | 14 |
| Caster Size | 3-1/2” to 4” | 4” to 5” | 5" to 8” | 5" to 8” | 6" to 8” |
Manuals & Documents
CollapseOptions & Accessories
CollapseStandard products are available in a wide variety of common caster and bumper configurations or commercial grade vinyl and laminate finishes. These options along with accessories are listed below. Please contact us if you would like to further modify or customize a product to meet your needs.
Available Finish Options
Stainless Steel
Custom
CollapseChoose from a wide selection of proven product designs that can also be modified or customized to meet specific applications. Our experienced customer service team is ready to help with a quote today!
Design Your Own
