Lakeside 6820

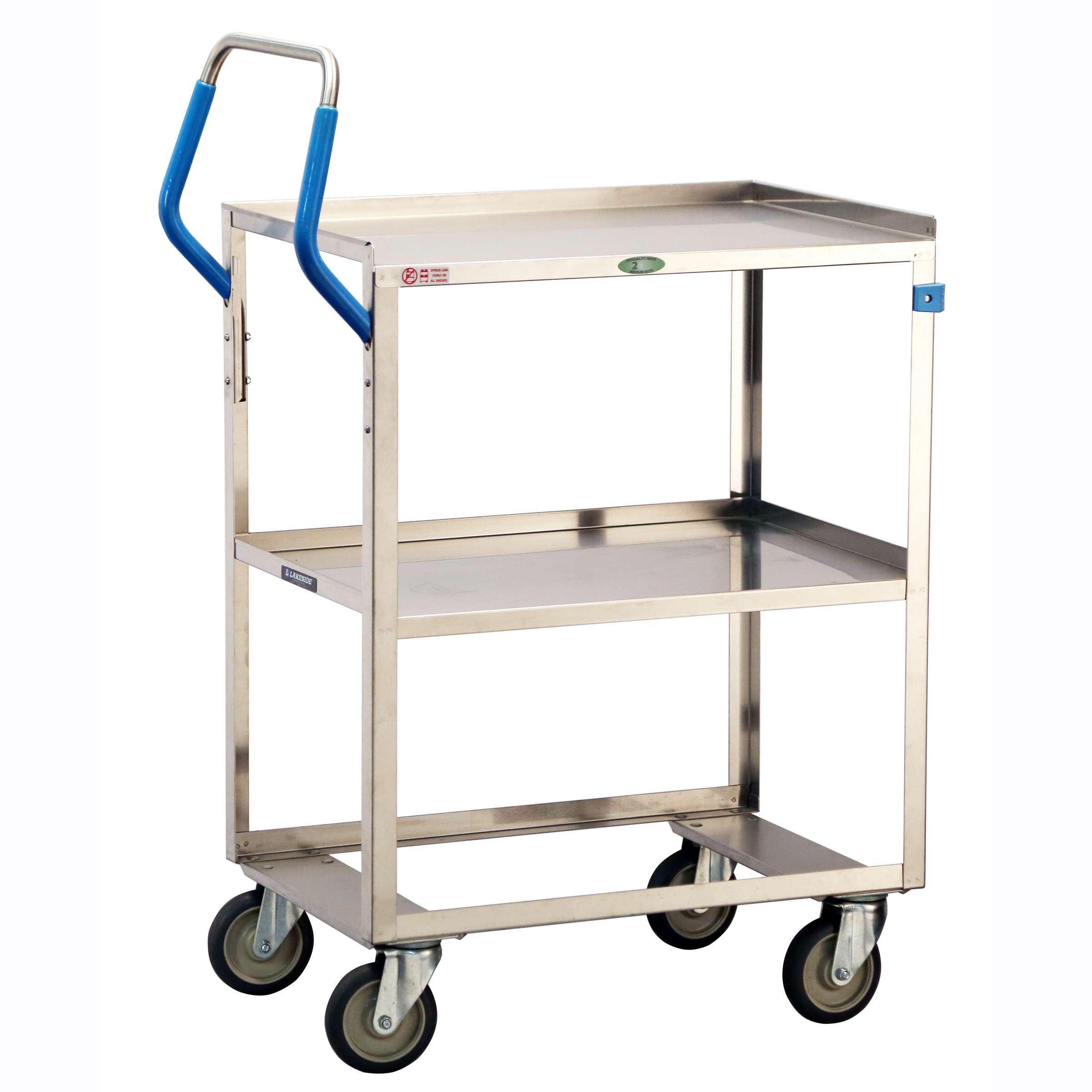

Ergo-One System Utility Cart, 2 Shelf: 21″ x 35″, 500-Lb. Capacity

This ergonomic cart with vertical handles features a safety zone designed to accommodate the human body during loading and unloading.

Ergo-One System Utility Carts by Lakeside Manufacturing were designed to reduce injuries caused by improper pushing, lifting and loading. The Lakeside 6800 Ergo-One System Utility Cart with (2) shelves measuring 21" x 35" has a weight capacity of 500-Lb. This foodservice utility cart's shelf heights are within a “Safety Zone” that is the proper range for loading and unloading, bottom shelf is 20” (508) from the floor. This Lakeside cart's impact-absorbing, no-mark cushion-tread wheels absorb impact, reducing vibration and strain. This utility cart's 20-gauge stainless steel top shelf and 24-gauge stainless steel bottom shelf are reinforced for added strength, while its all welded construction is durable for structural strength and easier-to-clean surface. This Lakeside cart's stainless steel construction is easy to clean and sanitize. Its ergonomic vertical handle helps prevent wrist, arm and shoulder strains when pushing. This cart's leg bumpers protect walls and furniture, while its reinforced stainless steel shelves and all welded construction. Lakeside has the widest selection on the market and offers custom solutions. Industry leading ship times from Lakeside’s US factory. Made in the USA. The SAFETY Zone: Ergonomics is the term defining work methods and tools designed to accommodate the human body. Ergo-One System carts are designed to be “body friendly.” to help prevent injuries resulting from repetitive loading and unloading. Ergo-One shelf heights are in the “safety zone” – the bottom shelf is 20" (508 mm) from the floor; the top shelf is 34-1/8" to 353/4" (867 mm) from the floor.
4
Day
Current availability as soon as 4 business days

  • Shelf heights are within a “Safety Zone” that is the proper range for loading and unloading, bottom shelf is 20” (508) from the floor.

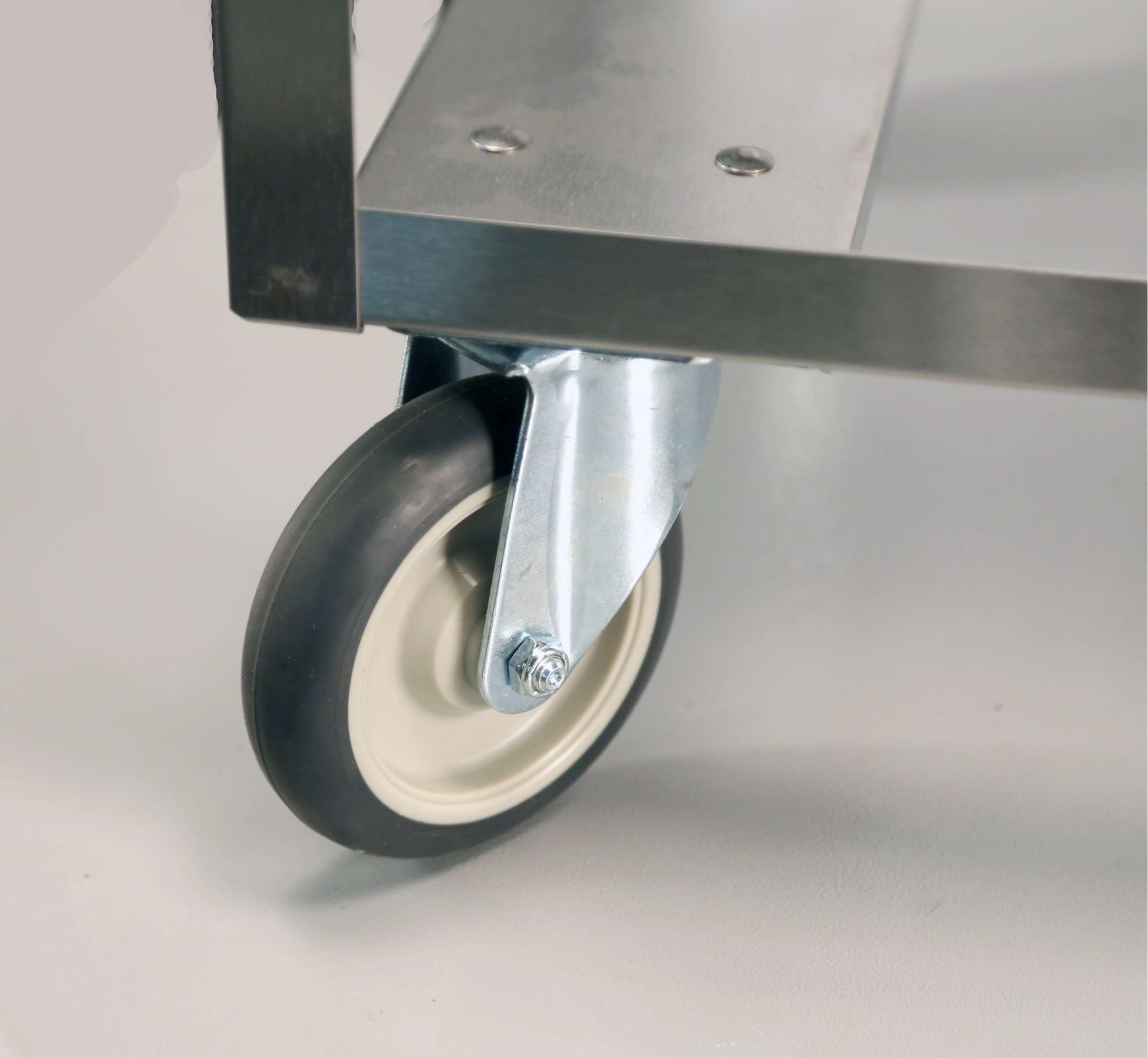

  • No-mark cushion-tread wheels absorb impact, reducing vibration and strain.
  • 20-gauge stainless steel top shelf and 24-gauge stainless steel bottom shelf are reinforced for added strength.
  • All welded construction is durable for structural strength and easier-to-clean surface.
  • Stainless steel is easy to clean and sanitize.

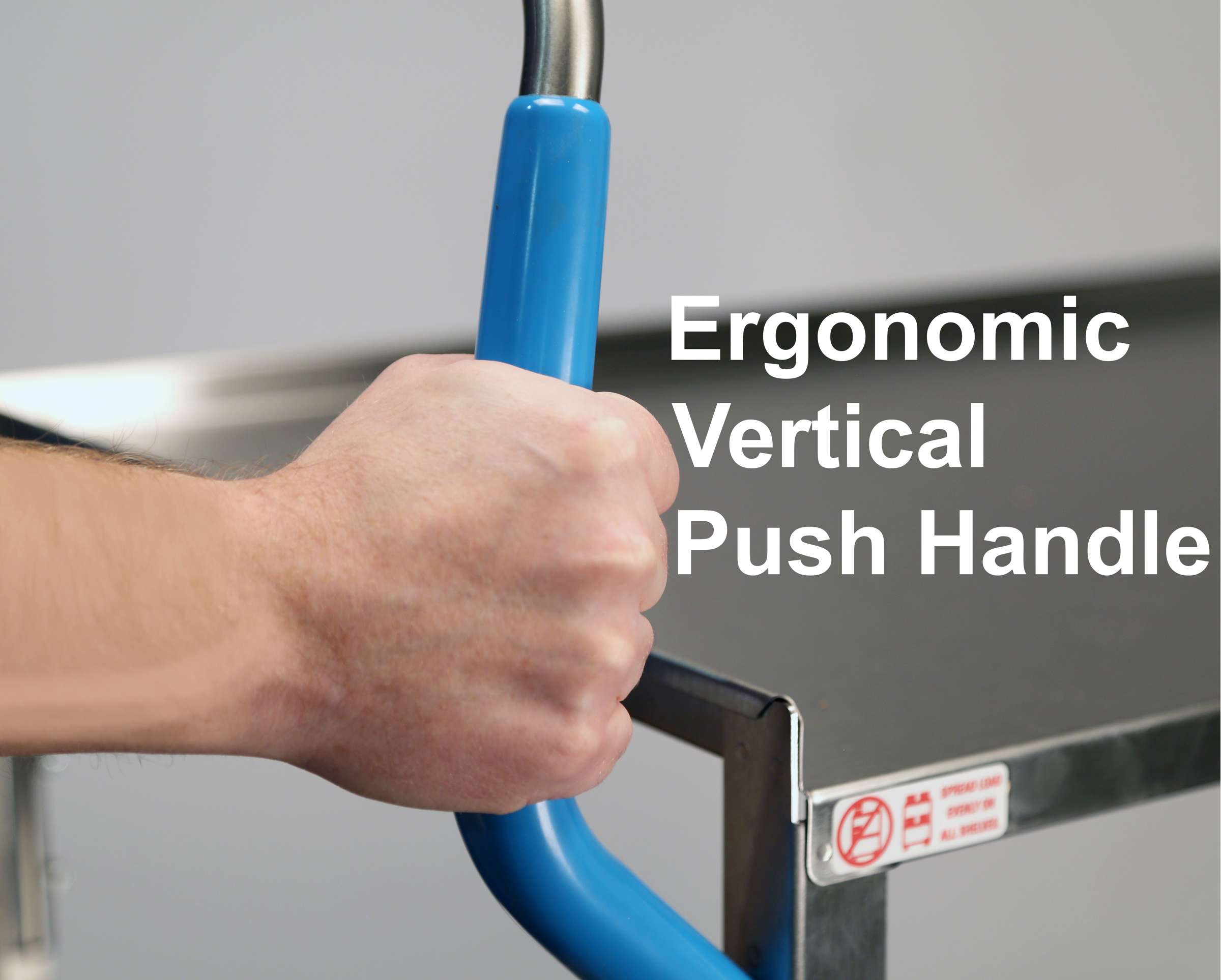

  • Ergonomic vertical handle helps prevent wrist, arm and shoulder strains when pushing.
  • Leg bumpers protect walls and furniture.
  • Reinforced stainless steel shelves and all welded construction.

Specifications

Collapse
Brand

Lakeside

Caster Size (in)

5

Caster Type

All swivel, No-Mark Polyurethane

Country of Origin

US

Ergonomic Design

Ergonomically Engineered

Frame Type

Angle Leg

Item Dimensions (L x W x H) 39.13 in x 22 in x 44.38 in
Material

Stainless Steel

Model

Ergo-One

NSF

No

Number of Shelves

2

Proposition 65 Warning This product can expose you to wood dust and chemicals including chromium, which are known to the State of California to cause cancer. For more information, go to: www.P65Warnings.ca.gov.
Shelf Clearance (in)

14.5

Shelf Dimensions

21 in x 35 in

Shipping Class 125
Shipping Dimensions 39.5 × 25 × 40.5 in
Shipping Method

LTL

Shipping Weight 59 lbs
Weight Capacity (lbs)

500

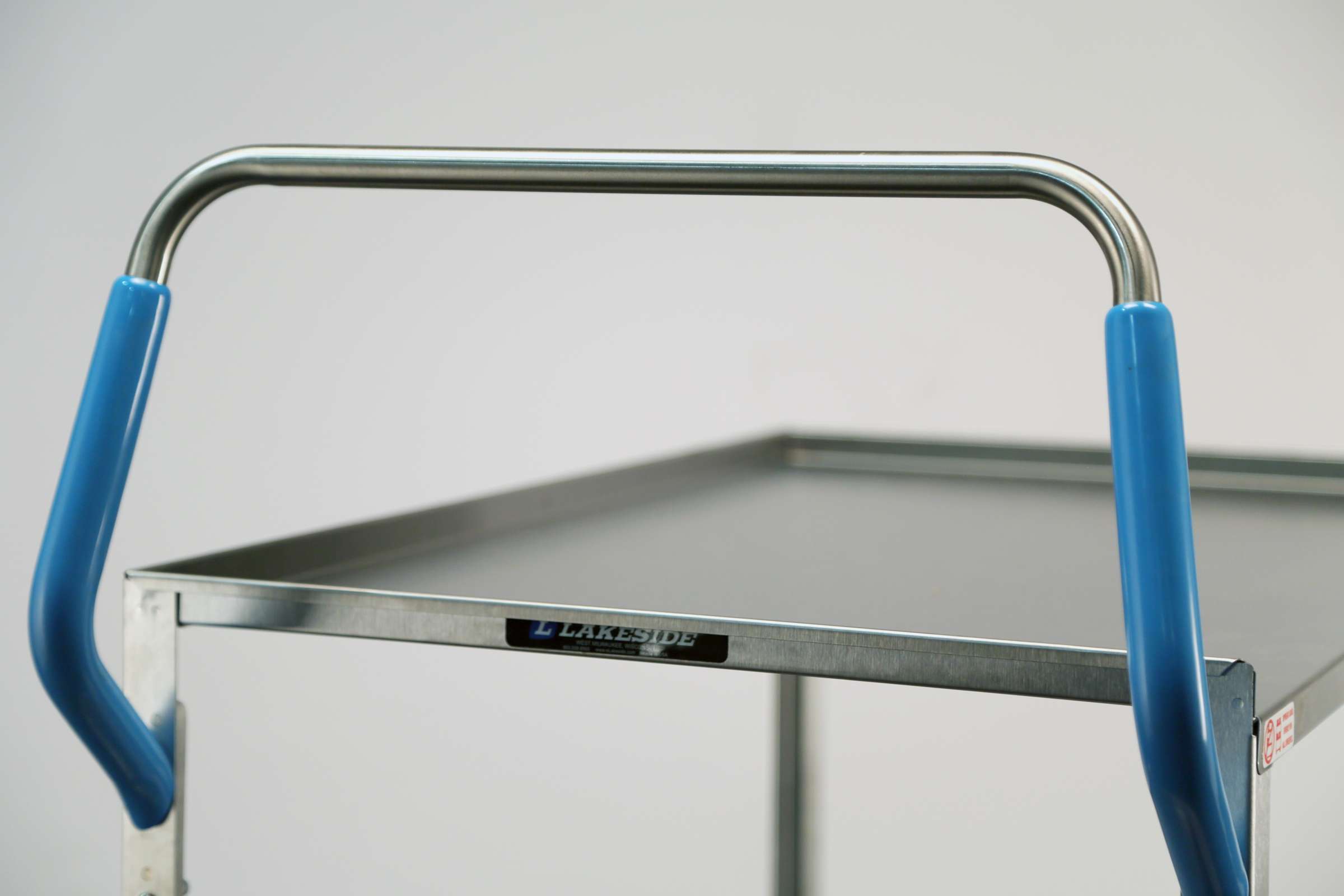

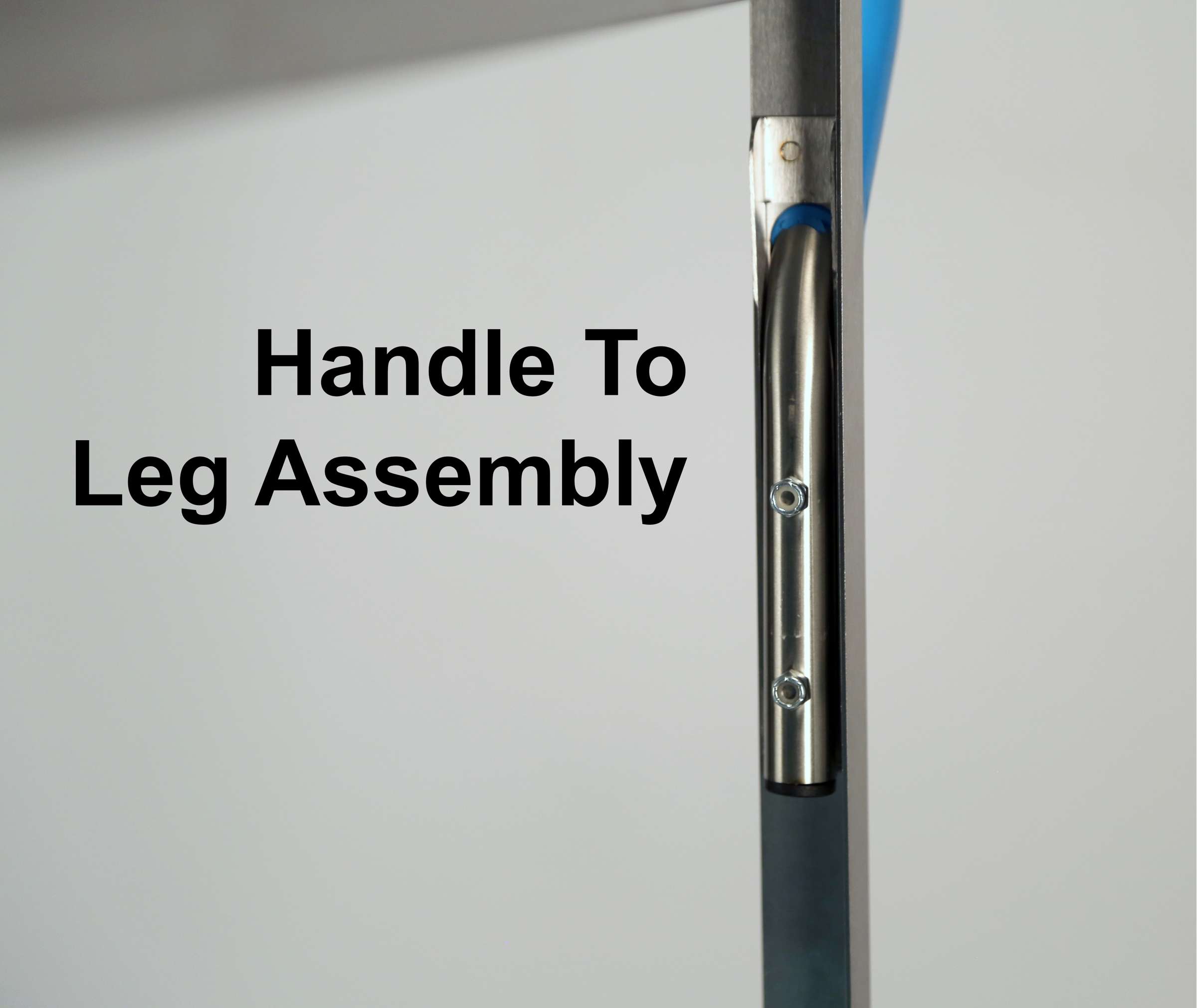

Product Specification: Unit shall be of fully welded unitized construction with an overall carrying capacity of 500 lb. (230 kg). Corner legs shall be of 16-gauge angle stainless steel. Shelves shall be of 20-gauge stainless steel with long shelf edges double hemmed for extra strength and shall be electronically spot welded to upright legs at all points. Top shelf shall have 16-gauge angle reinforcements welded to long shelf edges. Bottom shelf shall be positioned no closer than 20" (508 mm) from the floor surface, and top shelf shall be positioned no higher than 36" (914 mm)from the floor surface. Push handles shall be of ergonomic vertical design and shall feature 8" (203 mm) range grip height. Unit shall have corner bumpers mounted to front legs. Four each 5" (127 mm) swivel casters with non-marking polyurethane wheels shall be mounted to cross members of 18-gauge stainless steel.

Durability Index

Collapse
Durability Index





Maximum Weight300lbs / 135KG500lbs / 230KG700lbs / 320KG1000lbs / 450KG1500lbs / 680KG
Weight Visualization75 plates150 plates250 plates100 12oz. cans30 cases of wine
Vinyl Tile
Indoor Concrete
Ceramic Tile
Carpet
Outdoor Uneven
Daily Hour UsageUp to 34 to 99 to 1210 to 18Up to 24 hours
Ideal UsageDining area bussing, set-up tray station, soiled dish stationDining room bussing, set-up tray station, soiled dish station.Receiving goods, moving loads for warewashingReceiving dock and storage room, loading and moving dishes and flatware.Casinos and correctional facilities, receiving dock and warehousing
Legs Steel Gauge20161/8" Stainless Steel1/8" Stainless Steel1" Square or 1/8" Stainless Steel
Shelf Steel Gauge2220181414
Caster Size3-1/2” to 4”4” to 5”5" to 8”5" to 8”6" to 8”

Options & Accessories

Collapse

Standard products are available in a wide variety of common caster and bumper configurations or commercial grade vinyl and laminate finishes. These options along with accessories are listed below. Please contact us if you would like to further modify or customize a product to meet your needs.

Available Finish Options

Stainless Steel

Custom

Collapse

Choose from a wide selection of proven product designs that can also be modified or customized to meet specific applications. Our experienced customer service team is ready to help with a quote today!

Design Your Own
