Lakeside 6005

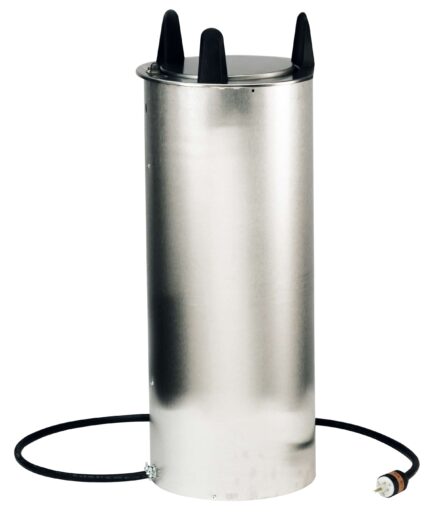

Drop In Plate Dispenser, Shielded, Heated for 5-1/8 to 5-3/4 Inch Plates

Fits into counter cutout for attractive hidden dispensing with quick and easy access.

Lakeside 6005 Drop In Plate Dispenser, Shielded, Heated for 5-1/8 to 5-3/4 Inch Plates fits into counter cutout for attractive hidden dispensing with quick and easy access. Heated and shielded to protect against contaminates and plate chipping, accommodates 5-1/8” to 5-3/4” (130 to 146) round dish sizes. Self-Leveling Dispensers: Adjusting height level is easy and convenient. Simply detach and attach springs as needed with no tools required. The Easy-Glide™ design dispenses plates smoothly while preventing jams. Heated with adjustable thermostatic control to heat dishes (thermostat min- 100° F, max- 175° F). Stainless steel material is durable and easy to clean and sanitize. Self-leveling dispensers have a 25”(635) stacking height capacity. Heated models include 5' (1524) cord with L5-15P NEMA twist lock plug for 120 V. Dish dispensers accommodate a variety of 5-1/8 to 5-3/4 inch dish sizes, including plates and bowls. Made in the USA.
8
Day
Current availability as soon as 8 business days
NSF
UL Listed

  • Heated and shielded to protect against contaminates and plate chipping, accommodates 5-1/8” to 5-3/4” (130 to 146) round dish sizes
  • Self-Leveling Dispensers: Adjusting height level is easy and convenient. Simply detach and attach springs as needed with no tools required
  • The Easy-Glide™ design dispenses plates smoothly while preventing jams.
  • Heated with adjustable thermostatic control to heat dishes (thermostat min- 100° F, max- 175° F)
  • Stainless steel material is durable and easy to clean and sanitize
  • Self-leveling dispensers have a 25”(635) stacking height capacity.
  • Heated models include 5' (1524) cord with L5-15P NEMA twist lock plug for 120 V.
  • Dish dispensers accommodate a variety of 5-1/8 to 5-3/4 inch dish sizes, including plates and bowls.
  • Made in the USA

Specifications

Collapse
Accommodates Plate Size (in)

5.5

Adjust-a-Fit

No

Brand

Lakeside

Country of Origin

US

Dish Shape

Round

Dispense Height

Standard

Electrical Amps

2.5

Electrical Hertz

60Hz

Electrical Volts

120VAC

Electrical Watts

300

Heating

Heated

Item Dimensions (L x W x H) 9 in x 9 in x 28 in
Model

Shielded

NSF

Yes

Plate Size Range

5 1/8 to 5 3/4

Proposition 65 Warning This product can expose you to wood dust and chemicals including chromium, which are known to the State of California to cause cancer. For more information, go to: www.P65Warnings.ca.gov.
Shipping Class 92.5
Shipping Dimensions 14 × 14 × 34 in
Shipping Method

UPS/FedEx

Shipping Weight 19 lbs
UL Listed

Yes

Product Specification: Unit shall be of welded stainless steel construction. Dispensers shall hang from surface opening by an 18-gauge flange ring and feature three each 22-gauge vertical side supports welded to 20-gauge bottom plate. Self-leveling dish carriage shall be of welded stainless steel construction and shall travel vertically in dispenser tube with nylon guides for smooth operation. Carriage shall have 22-gauge removable dish platform. Unit shall feature flange mounted perimeter extension springs, which are detachable from the dish carriage to provide adjustment without tools for different weight dishes. Unit shall have a vertical stacking capacity of 26" (660 mm). Unit shall be NSF listed. Heated Models Only: Unit shall be 120 VAC 60 Hz and shall have 5´ (1524 mm) power supply cable with L15-5P NEMA twist lock plug for 120 VAC. Dispenser tubes shall be fully enclosed in 22-gauge stainless steel, and have a circular bottom mounted 300 or 450 watt heater element to provide convection heat. Heating system shall feature thermostatic control in a tamper protective location with safe high-end shut-off. Control shall have Infinite settings between low and high temperature cutouts. Thermostat shall be field adjustable for average interior air temperature between 100° F (38°C) and 180° F (82° C) at middle adjustable thermostatic setting. On-off switch and power indicator light shall be mounted on top flange of dispenser. Average dish temperature rise of 40° F (22° C) above ambient shall be achieved within one hour of initial heating cycle at middle adjustable thermostatic setting. Unit shall be UL listed.
