This NSF certified cart’s U frame construction adds greater strength and durability for all purposes, back-of-the-house chores.

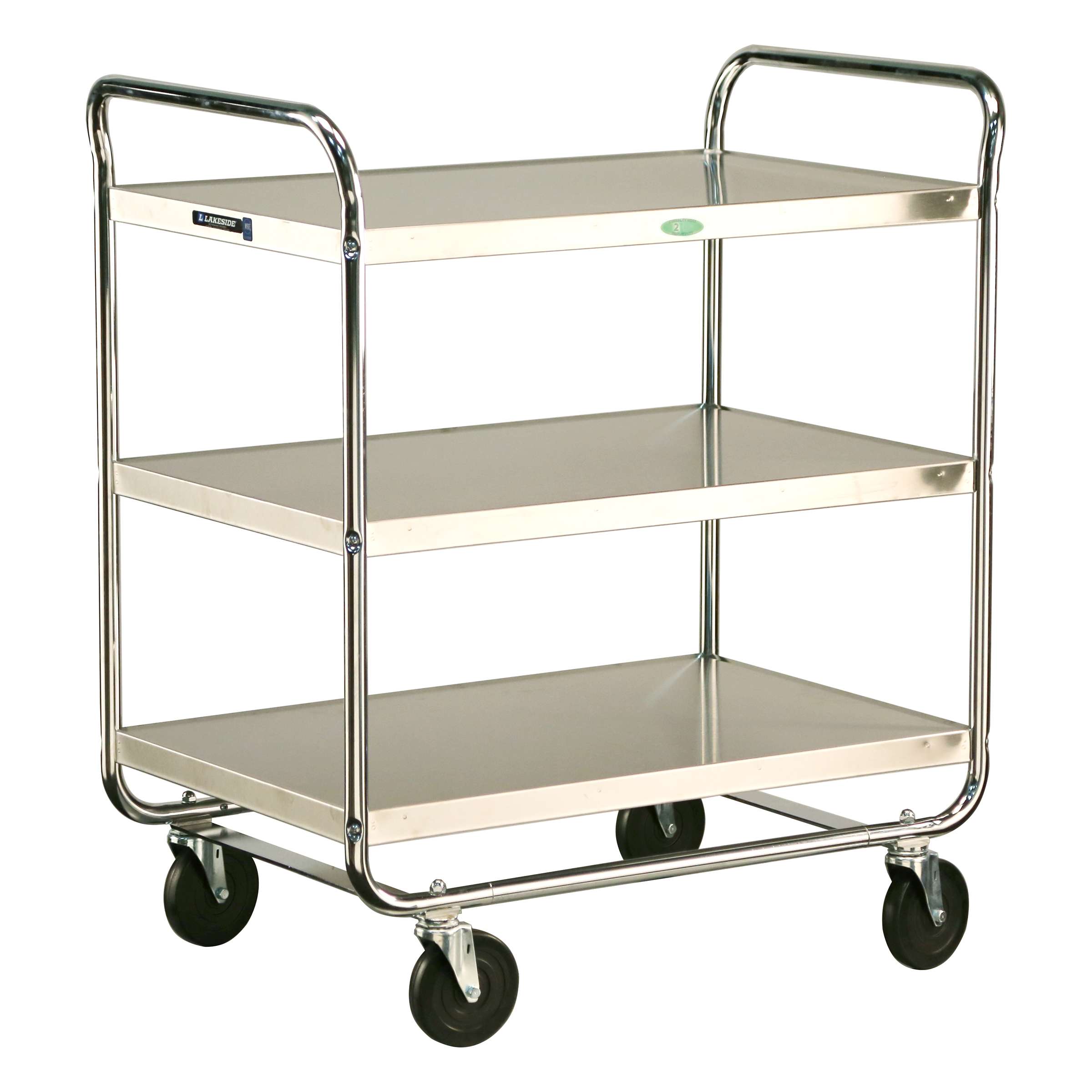

Tubular Utility Carts by Lakeside Manufacturing are ideal for dining area bussing, set-up, tray or soiled dish station, medium duty transport, and storage. The Lakeside 493 Tubular Utility Cart with (3) shelves measuring 21" x 33" has a weight capacity of 500-Lb. This Lakeside cart's dual handles allow for pushing from either end when narrow spaces restrict turns, while its 1" thick tubing supplies longer lasting durability. This utility cart's U-shaped chrome plated frame with integrated handles increases structural strength, and its reinforced edges provide extra strength for heavy loads. This foodservice utility cart's all-swivel casters maneuver smoothly with less strain. Its 20-gauge stainless steel shelves have reinforced edges for heavy loads and load drops. This cart's legs are 16-gauge stainless steel for increased stability when hauling across long distances. Its stainless steel is easy to clean and sanitize. This model is NSF listed. Standard, modified, and custom options available from Lakeside's USA factory. Nobody beats Lakeside lead times!
Current availability as soon as 3 business days
- Dual handles allow for pushing from either end when narrow spaces restrict turns.
- 1" thick tubing supplies longer lasting durability.

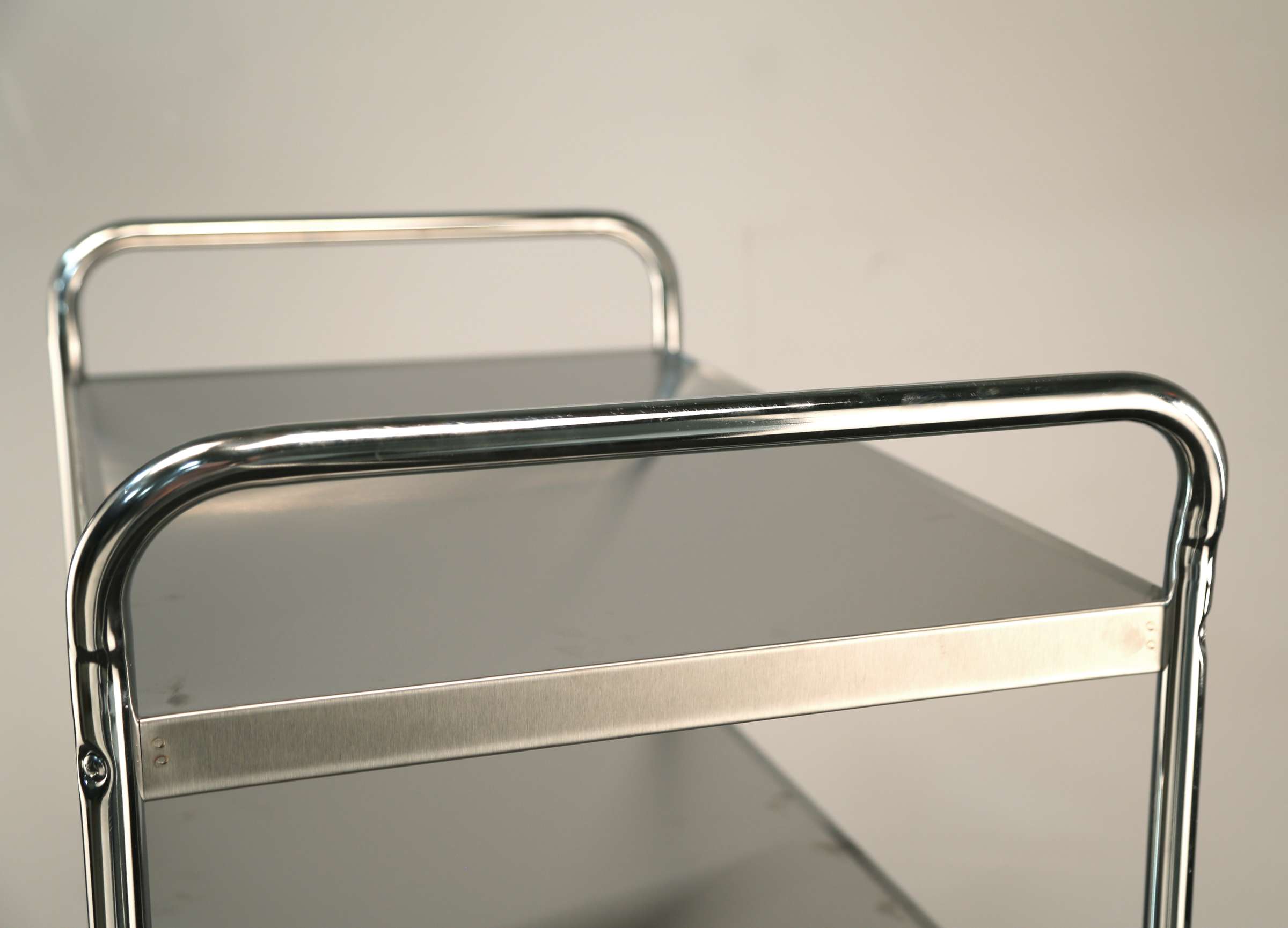

- U-shaped chrome plated frame with integrated handles increases structural strength.

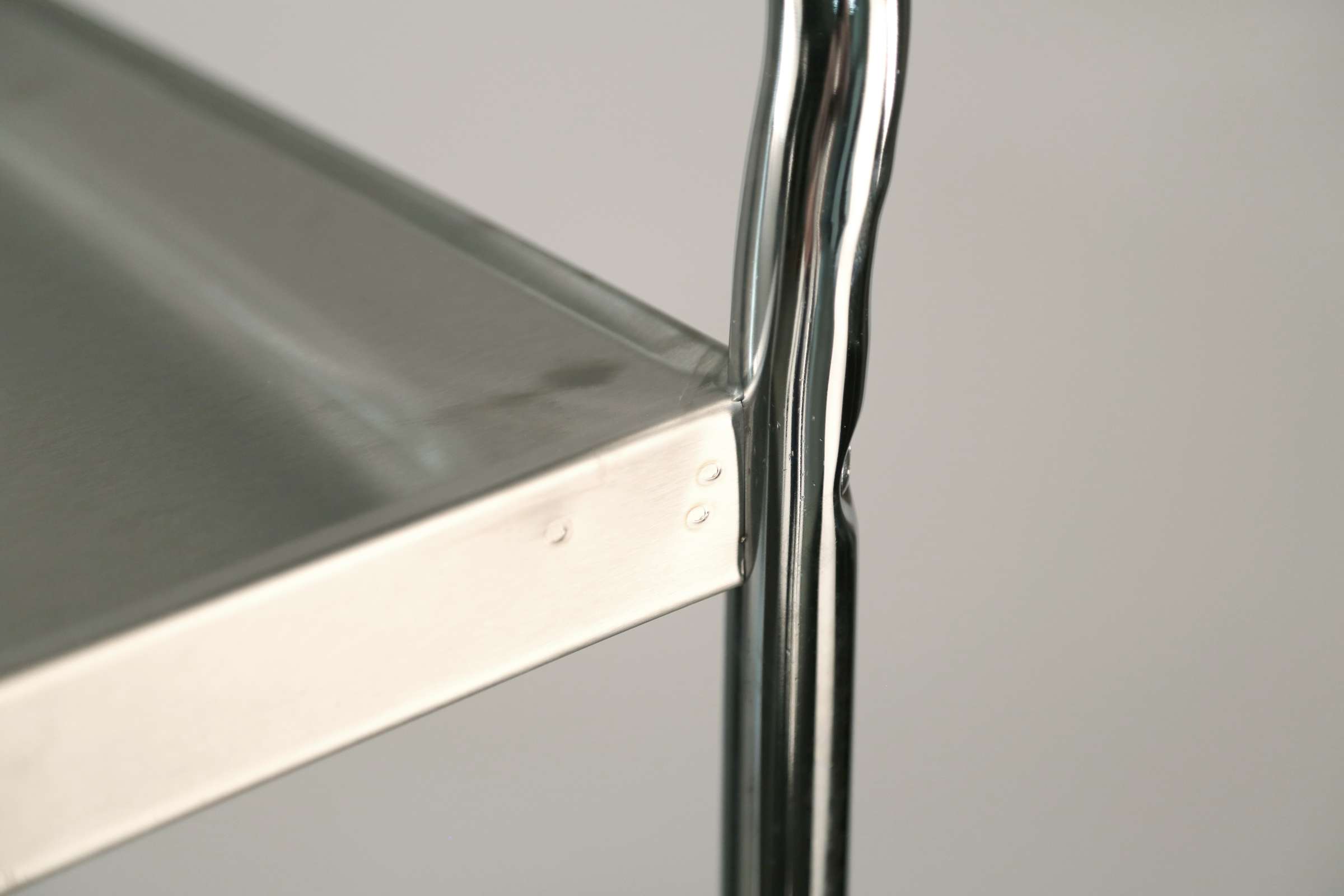

- Reinforced edges provide extra strength for heavy loads.

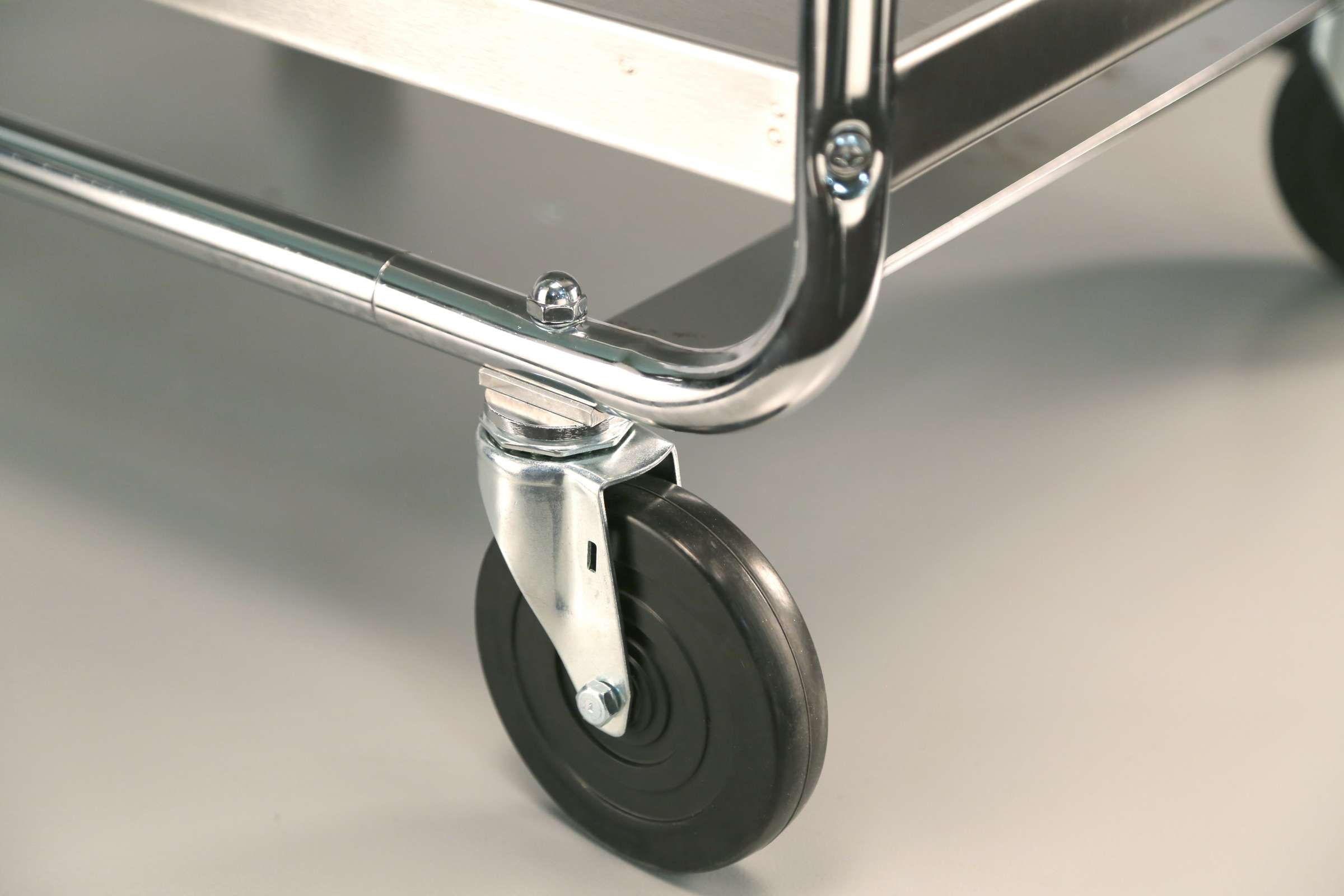

- All-swivel casters maneuver smoothly with less strain.
- 20-gauge stainless steel shelves have reinforced edges for heavy loads and load drops. Legs are 16 gauge stainless steel.
- Stainless steel is easy to clean and sanitize.
- This model is NSF listed.
Specifications
Collapse| Brand | Lakeside |
|---|---|
| Caster Size (in) | 5 |
| Caster Type | All swivel |
| Country of Origin | US |
| Ergonomic Design | Traditional |
| Frame Type | Tubular Frame |

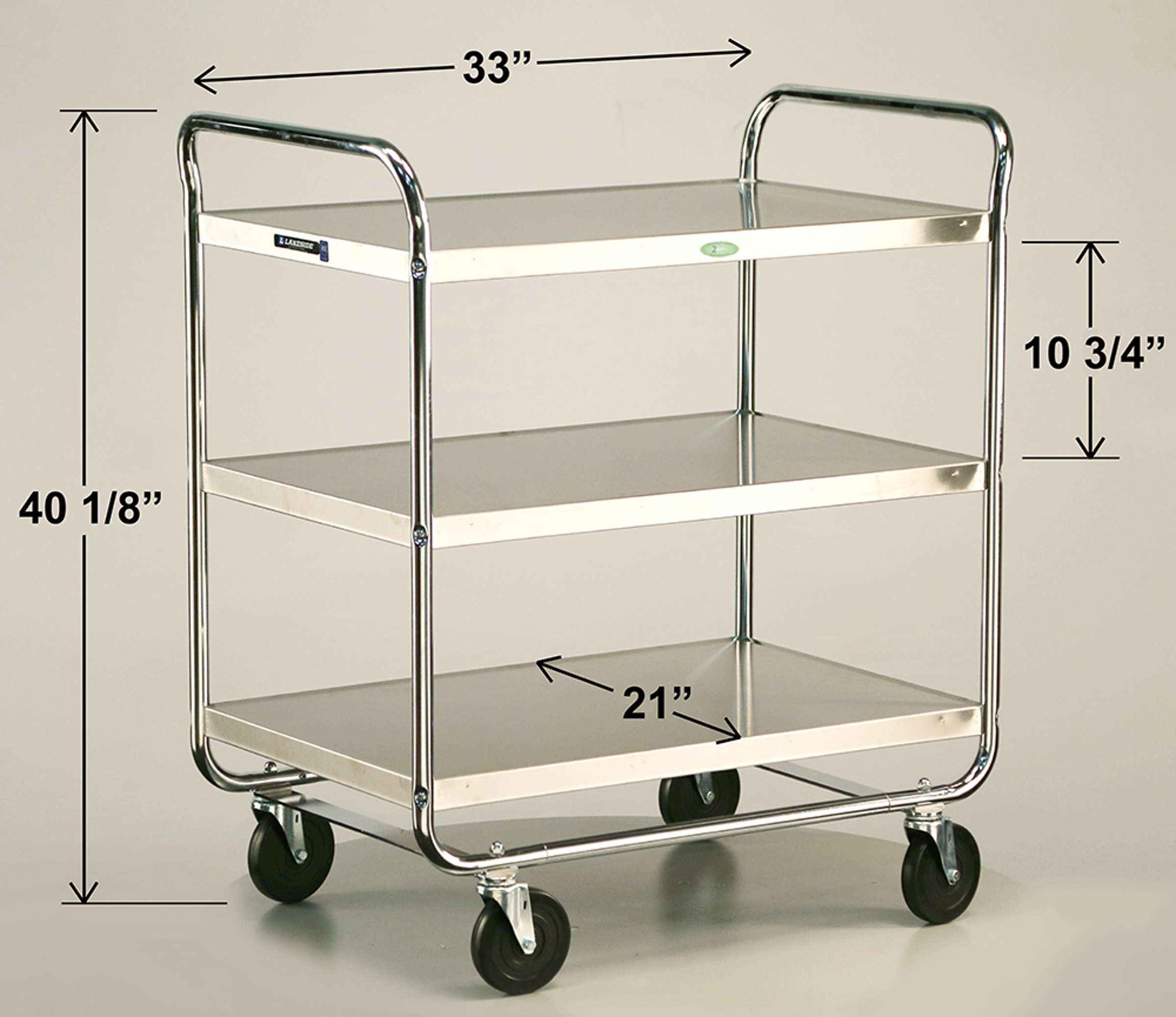

| Item Dimensions (L x W x H) | 36 in x 23 in x 40.13 in |
| Model | Tubular |
| NSF | Yes |
| Number of Shelves | 3 |
| Proposition 65 Warning | This product can expose you to wood dust and chemicals including chromium, which are known to the State of California to cause cancer. For more information, go to: www.P65Warnings.ca.gov. |
| Shelf Clearance (in) | 10.75 |
| Shelf Dimensions | 21 in x 33 in |
| Shipping Class | 125 |
| Shipping Dimensions | 39.5 × 26 × 44.5 in |
| Shipping Method | LTL |
| Shipping Weight | 65 lbs |
| Weight Capacity (lbs) | 500 |
Product Specification: Unit shall be Lakeside Model 493 and shall have stainless steel shelves secured to tubular legs with screw and nut with a weight capacity of 500-Lb. (136 kg). This cart shall have 3 ea. open shelves measuring 21" x 33" and be constructed of 20-gauge stainless steel. Shelves shall have 10-3/4” clearance with reinforced edges. U-frame shall have 18-gauge 1” thick chrome plated round tubing forming integrated push handle on two ends. Bottom corners shall be rounded. Four each 5" swivel stem casters shall be secured through holes on bottom tube with acorn nut. Unit shall be listed as medium duty. Unit shall be NSF listed. Made in USA.
Durability Index
Collapse| Durability Index | |||||
| Maximum Weight | 300lbs / 135KG | 500lbs / 230KG | 700lbs / 320KG | 1000lbs / 450KG | 1500lbs / 680KG |
| Weight Visualization | 75 plates | 150 plates | 250 plates | 100 12oz. cans | 30 cases of wine |
| Vinyl Tile | |||||
| Indoor Concrete | |||||
| Ceramic Tile | |||||
| Carpet | |||||
| Outdoor Uneven | |||||
| Daily Hour Usage | Up to 3 | 4 to 9 | 9 to 12 | 10 to 18 | Up to 24 hours |
| Ideal Usage | Dining area bussing, set-up tray station, soiled dish station | Dining room bussing, set-up tray station, soiled dish station. | Receiving goods, moving loads for warewashing | Receiving dock and storage room, loading and moving dishes and flatware. | Casinos and correctional facilities, receiving dock and warehousing |
| Legs Steel Gauge | 20 | 16 | 11 | 11 | 11 or 14 |
| Shelf Steel Gauge | 22 | 20 | 18 | 14 | 14 |
| Caster Size | 3-1/2” to 4” | 4” to 5” | 5" to 8” | 5" to 8” | 6" to 8” |
Manuals & Documents
CollapseOptions & Accessories
CollapseStandard products are available in a wide variety of common caster and bumper configurations or commercial grade vinyl and laminate finishes. These options along with accessories are listed below. Please contact us if you would like to further modify or customize a product to meet your needs.
Available Finish Options
Stainless Steel
Custom
CollapseChoose from a wide selection of proven product designs that can also be modified or customized to meet specific applications. Our experienced customer service team is ready to help with a quote today!
Design Your Own
