Multi-Shelf carts have multiple shelves that keep trays and supplies organized in a compact footprint.

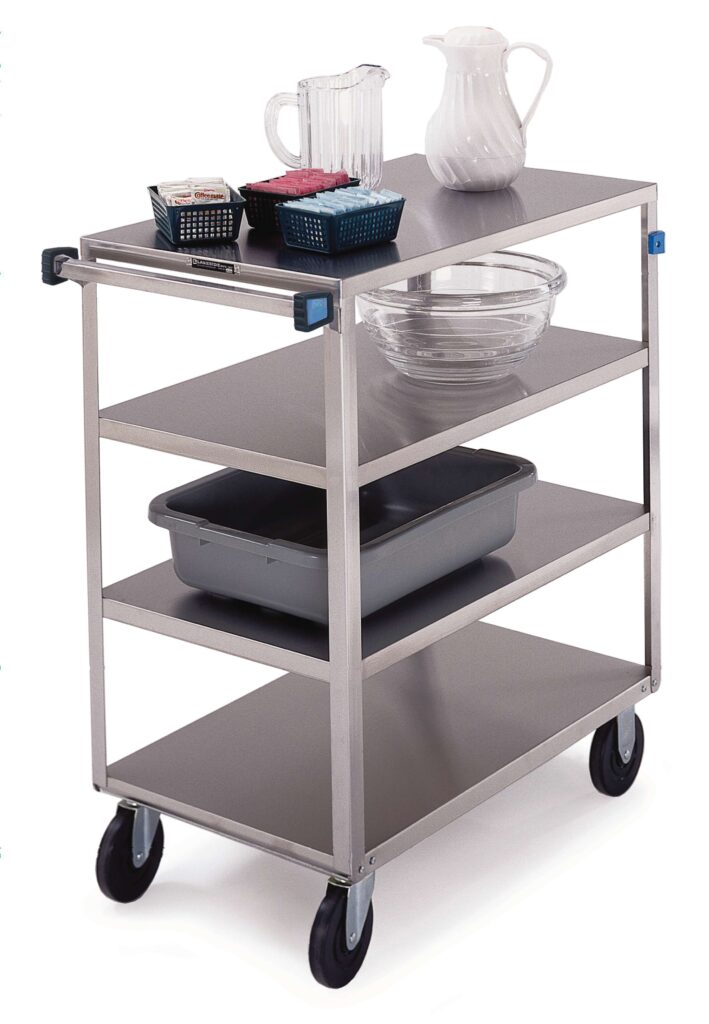

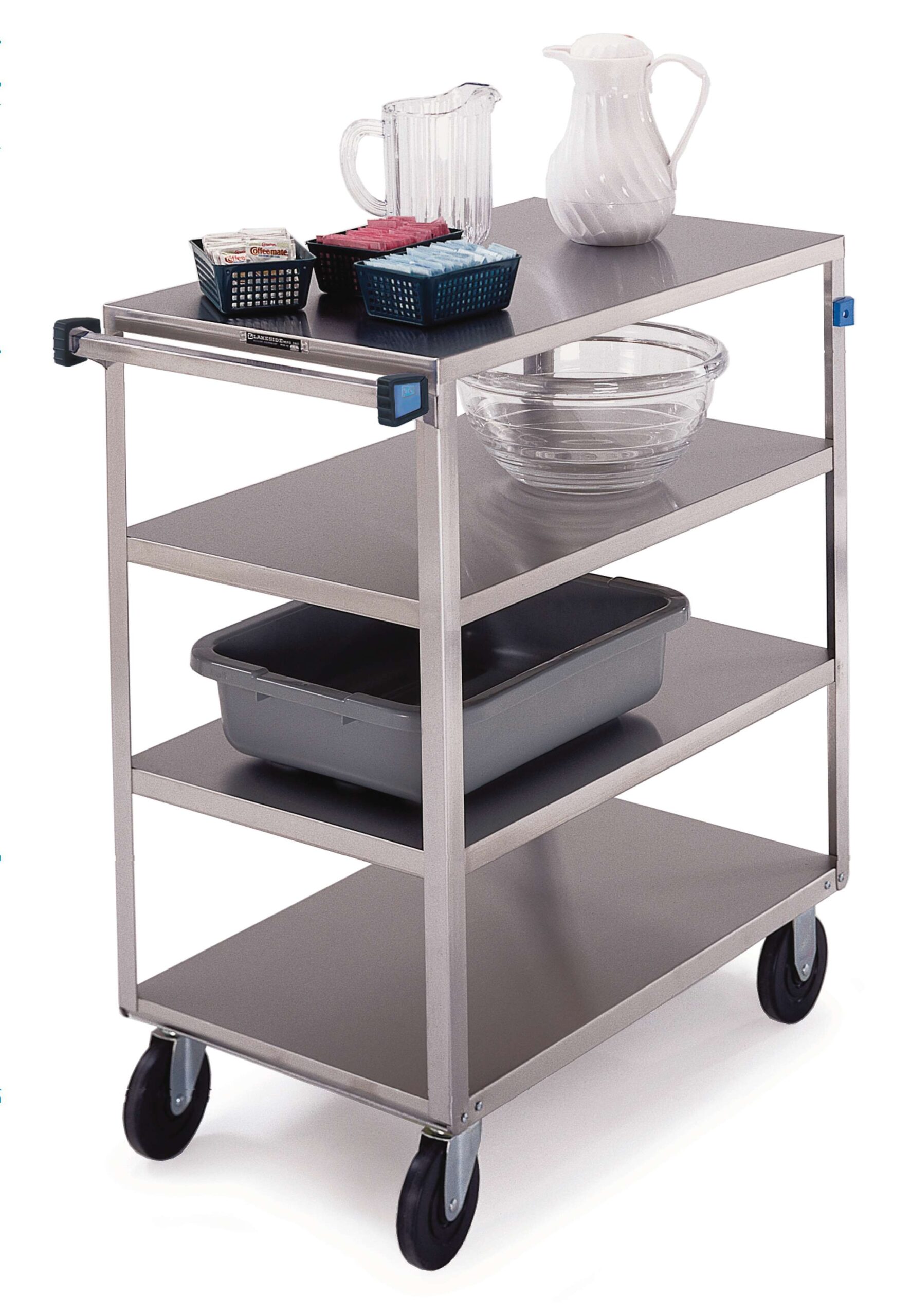

Multi-Shelf Carts by Lakeside Manufacturing are built for keeping trays and supplies organized in a compact footprint. The Lakeside 353 Multi-Shelf Cart with (4) shelves measuring 18" x 31" has a weight capacity of 500-Lb. This cart's compact size allows for easy maneuvering, while all of its shelf edges are down for easy loading and unloading from all sides. This Lakeside cart's all-welded angle leg construction makes for a stronger structure and easier-to-clean surface. Its stainless steel construction is easy to clean and sanitize. This foodservice cart's no-mark cushion-tread casters absorb impact for quieter operation. This cart's bumpers on its legs and handles protect walls and furniture. Equipped with 2 fixed and 2 swivel 5” casters to guide cart in a straight line, while making turns easier. Lakeside has the widest selection of carts on the market. Unbeatable lead times. Made in the USA.
Current availability as soon as 8 business days
- Compact size allows for easy maneuvering.
- All shelf edges down for easy loading and unloading from all sides.

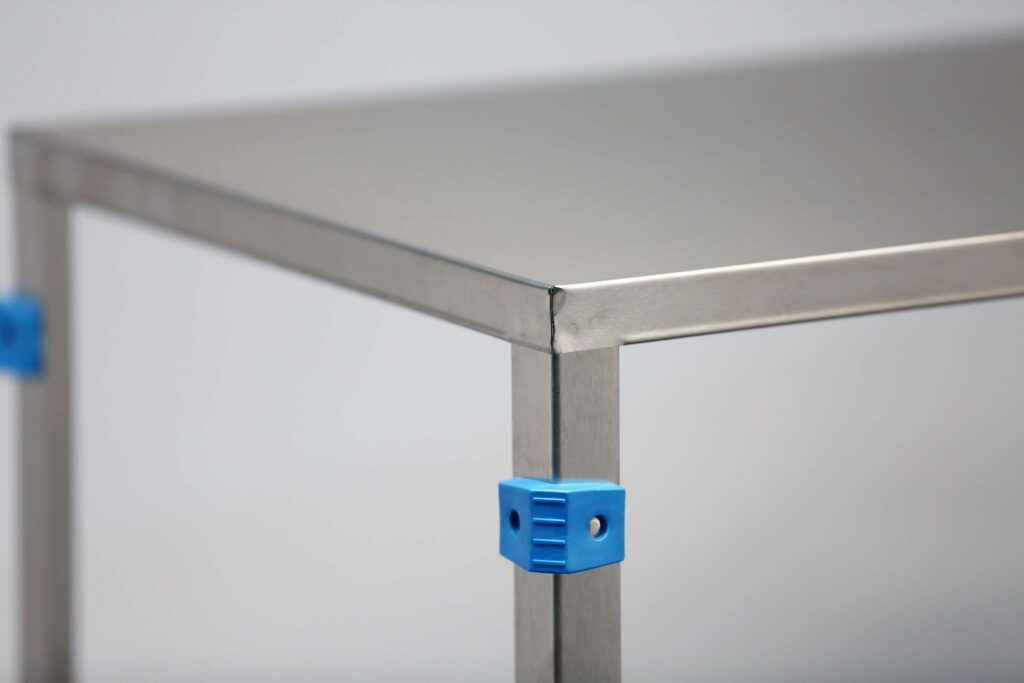

- All-welded angle leg construction for a stronger structure and easier-to-clean surface.
- Stainless steel is easy to clean and sanitize.
- No-mark cushion-tread casters absorb impact for quieter operation.
- Bumpers on legs and handles protect walls and furniture.
- 2 fixed and 2 swivel 5” casters guide cart in a straight line, while making turns easier.
- Extended handle allows for easy maneuvering in tight spaces when precision is required.
Specifications
Collapse| Brand | Lakeside |
|---|---|
| Caster Size (in) | 5 |
| Caster Type | 2 Ea. Fixed, 2 Ea. Swivel |
| Country of Origin | US |
| Item Dimensions (L x W x H) | 35 in x 19.38 in x 36.88 in |
| Model | Multi-Shelf |
| NSF | No |
| Number of Shelves | 4 |
| Proposition 65 Warning | This product can expose you to wood dust and chemicals including chromium, which are known to the State of California to cause cancer. For more information, go to: www.P65Warnings.ca.gov. |
| Shelf Clearance (in) | 8.75 |
| Shelf Dimensions | 18 in x 31 in |
| Shelf Edges | All Shelf Edges Down |
| Shipping Class | 125 |
| Shipping Dimensions | 39.5 × 23.5 × 41 in |
| Shipping Method | LTL |
| Shipping Weight | 57 lbs |
| Weight Capacity (lbs) | 500 |
Product Specification: Unit shall be Lakeside Model 353 and shall have stainless steel resistance spot welding to fasten shelves and handle to frame with a weight capacity of 500-Lb. (227 kg). This cart shall have 4 ea. open shelves measuring 18" x 31" and be constructed of 20-gauge stainless steel. Shelves shall have 8-3/4" clearance and be reinforced with a hemmed front. Shelves shall have all edges down. All-welded angle legs shall be constructed of 16-gauge stainless steel. Unit shall have a stainless steel push handle welded to frame, and shall have corner bumpers mounted to front legs and ends of push handle. Unit shall have an independent galvanized steel dolly frame fastened to the bottom with 8 screws. Bottom corners shall be rounded. Two swivel, two fixed 5" double race, double-ball bearing casters shall be mounted to the dolly frame. Casters shall be of no-mark, cushion-tread. Unit shall be listed as medium duty. Made in USA.
Durability Index
Collapse| Durability Index | |||||
| Maximum Weight | 300lbs / 135KG | 500lbs / 230KG | 700lbs / 320KG | 1000lbs / 450KG | 1500lbs / 680KG |
| Weight Visualization | 75 plates | 150 plates | 250 plates | 100 12oz. cans | 30 cases of wine |
| Vinyl Tile | |||||
| Indoor Concrete | |||||
| Ceramic Tile | |||||
| Carpet | |||||
| Outdoor Uneven | |||||
| Daily Hour Usage | Up to 3 | 4 to 9 | 9 to 12 | 10 to 18 | Up to 24 hours |
| Ideal Usage | Dining area bussing, set-up tray station, soiled dish station | Dining room bussing, set-up tray station, soiled dish station. | Receiving goods, moving loads for warewashing | Receiving dock and storage room, loading and moving dishes and flatware. | Casinos and correctional facilities, receiving dock and warehousing |
| Legs Steel Gauge | 20 | 16 | 11 | 11 | 11 or 14 |
| Shelf Steel Gauge | 22 | 20 | 18 | 14 | 14 |
| Caster Size | 3-1/2” to 4” | 4” to 5” | 5" to 8” | 5" to 8” | 6" to 8” |
Manuals & Documents
CollapseOptions & Accessories
CollapseStandard products are available in a wide variety of common caster and bumper configurations or commercial grade vinyl and laminate finishes. These options along with accessories are listed below. Please contact us if you would like to further modify or customize a product to meet your needs.
Factory Installed Options
2 brake and 2 no brake casters
Available Finish Options
Stainless Steel
Custom
CollapseChoose from a wide selection of proven product designs that can also be modified or customized to meet specific applications. Our experienced customer service team is ready to help with a quote today!
Design Your Own
