Transport up to 3X More and Make 3X Fewer Trips when Towing Multiple Push-Pull Utility Carts
Push-Pull Utility Carts by Lakeside Manufacturing provide flexibility of pushing and safely pulling actions when hauling heavy-duty loads. The Lakeside 163421 Push-Pull Utility Cart with (3) shelves measuring 21" x 33" has a weight capacity of 700-Lb. The Lakeside cart's swing-out handle allows for safe pushing or pulling action, while its hinged handle locks securely in the upright position for conventional pushing action. This utility cart's all-welded stainless steel construction is easy to clean and sanitize. This foodservice cart on wheels is equipped with 5” cushion tread casters, 2 ea. fixed, 2 ea. swivel with brake for smooth maneuverability. This cart's durable 700-Lb. carrying capacity allows for easy transport of heavy-duty loads over long distances. It provides full visibility when pulling cart to ensure operator safety. This cart is offered with an optional on-board hitch bar system that allows for towing of multiple carts. This multifunctional piece of equipment that helps save money, time, and space. Easy to load and unload. Push or pull loads for ultimate flexibility. Endless variety of customizable options. Lakeside has unbeatable lead times. Made in the USA.
- Push or pull, and optionally tow multiple utility carts, for ultimate flexibility
- Save labor and make fewer trips by towing multiple carts using optional on-board hitch bar system
- Stay out in front while pulling for full visibility of the path ahead and safe navigation of crowded spaces
- Take full strides with the swing-out handle and reduce ankle contact while pulling
- Swing-out handle with integrated latch lowers for pulling and towing multiple carts

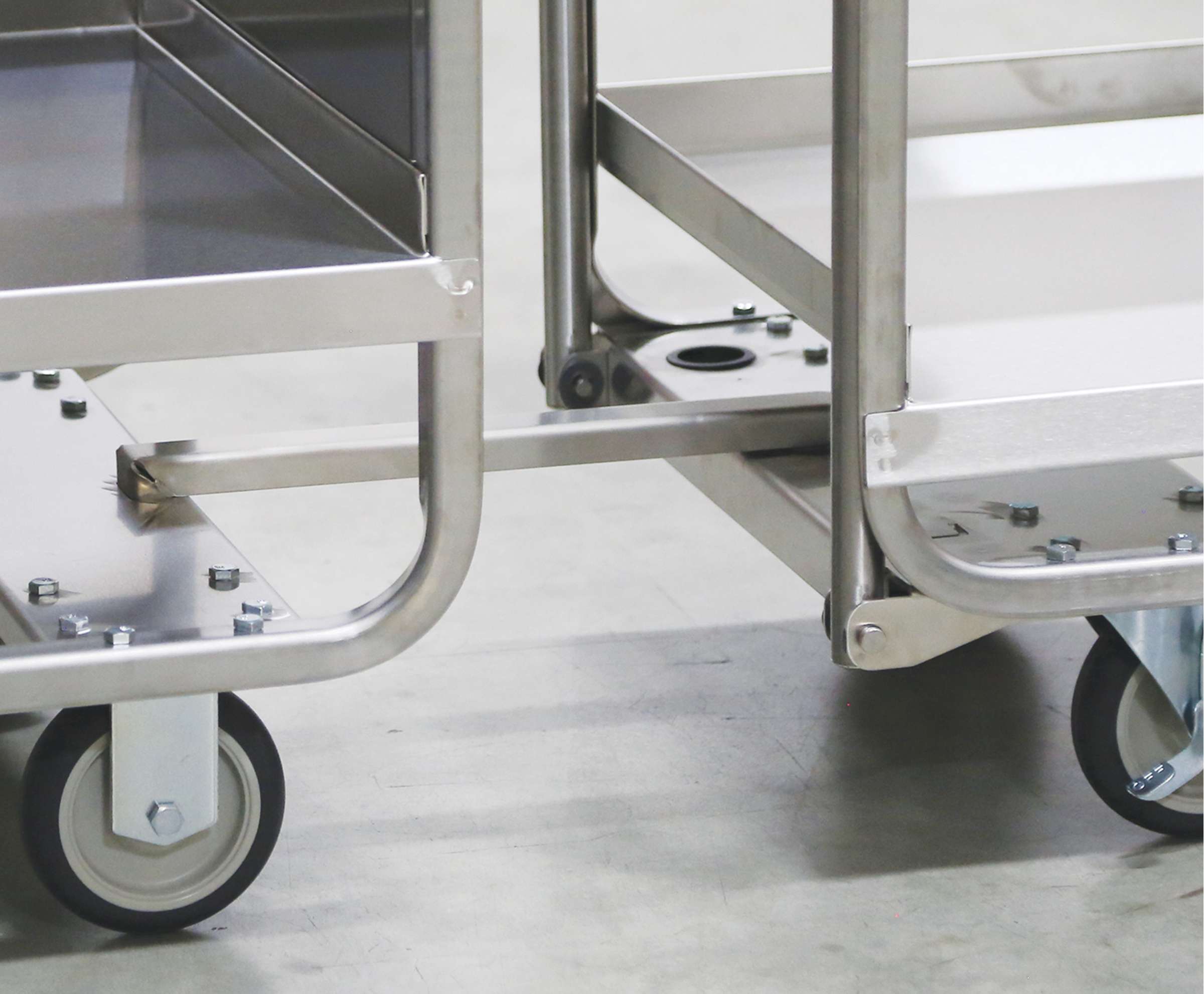

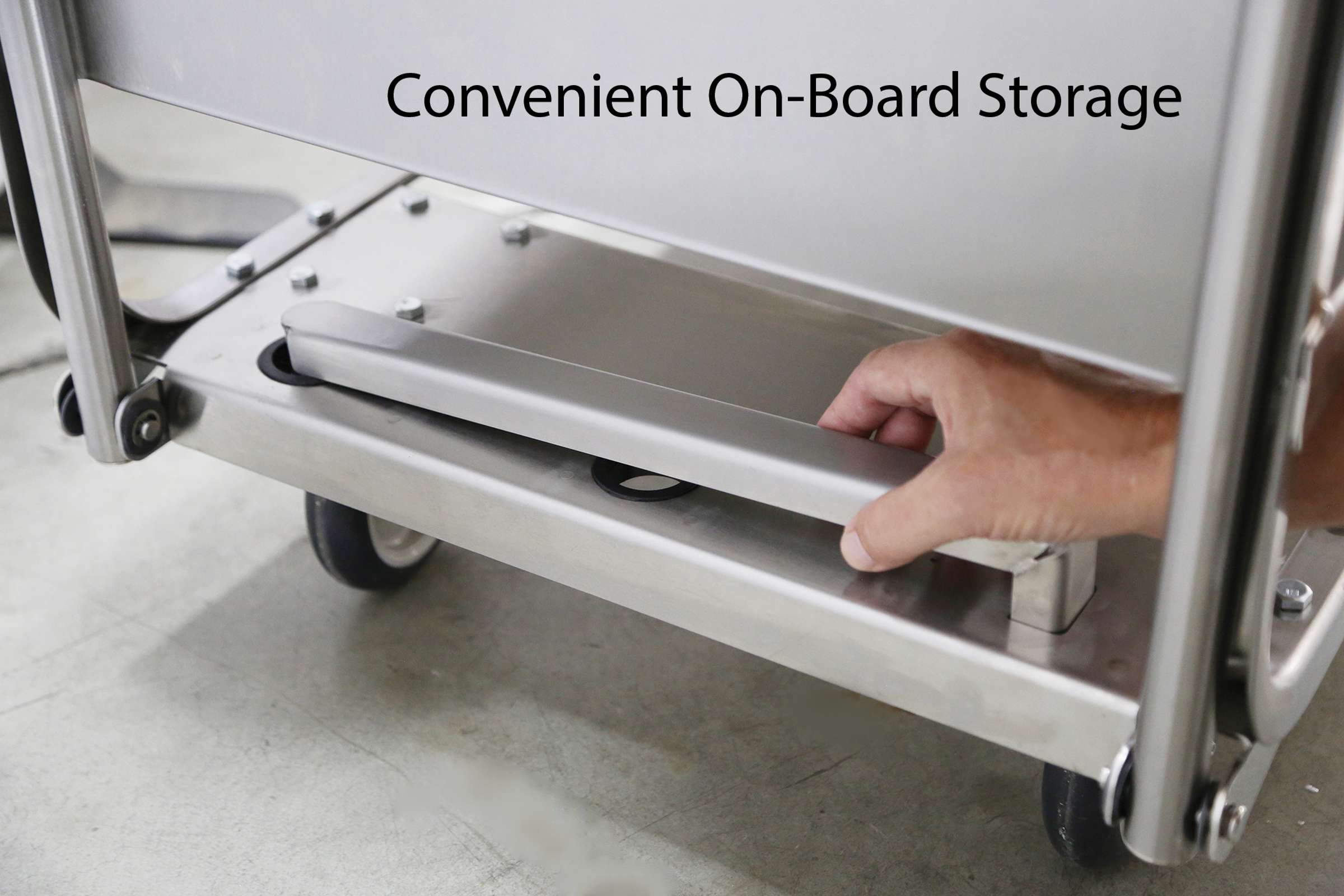

- On-board hitch bar system includes hitch receiver bushing to reduce friction and component wear, plus convenient on-board storage for the optional drawbar when not in use

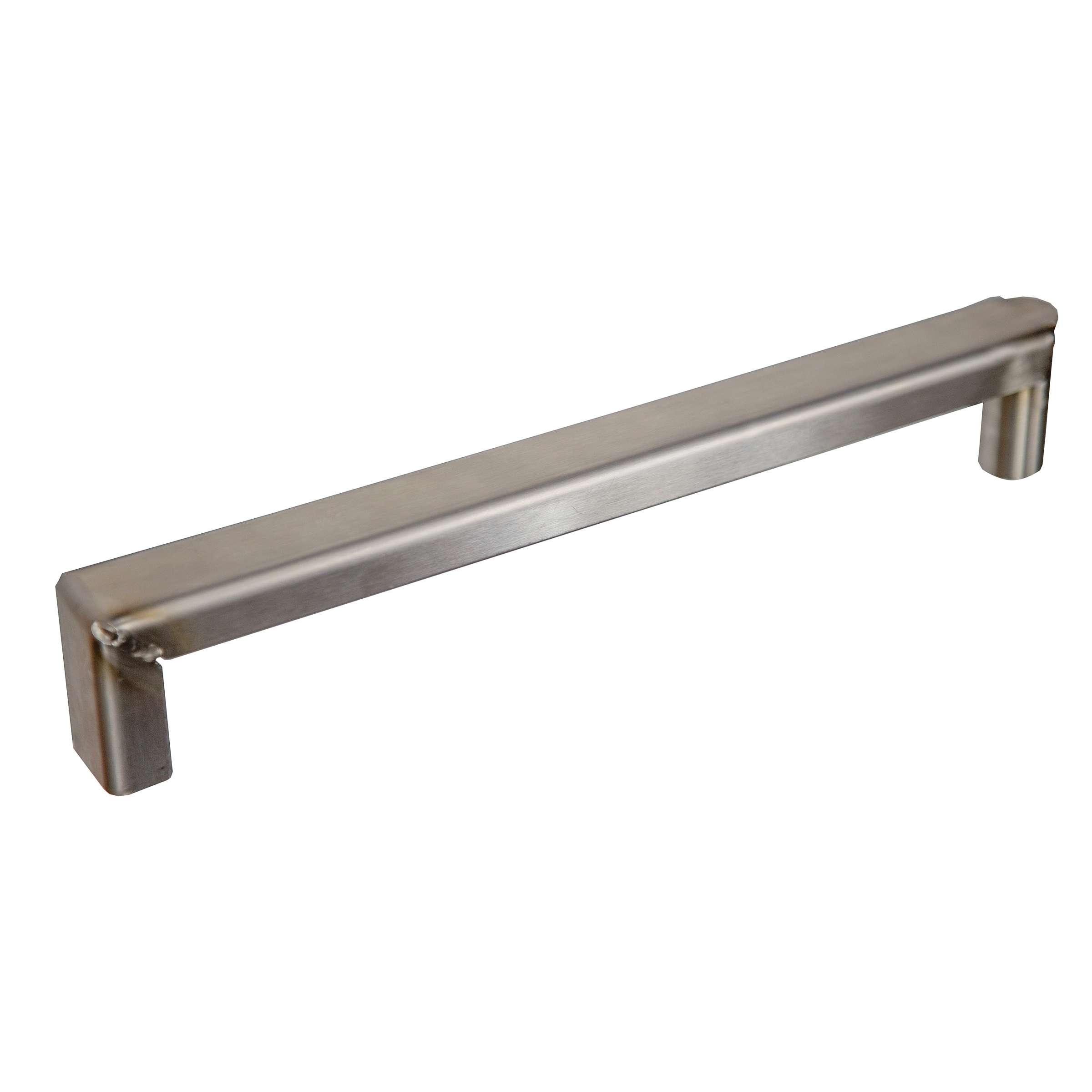

- Optional #169168 Stowable Drawbar with on-board storage required to connect multiple Push-Pull carts.
- Available as Trailing Cart # 169167 without swing-out handle for dedicated towing applications
- All-welded stainless steel construction is easy to clean and sanitize
- Durable 700 lb. (300 kg) capacity is ideal for the continuous moving of heavy loads over most standard floor surfaces
Specifications
Collapse| Brand | Lakeside |
|---|---|
| Caster Size (in) | 5 |
| Caster Type | 2 Ea. Swivel W/ Brake, 2 Ea. Fixed |
| Country of Origin | US |
| Handles | 1 |
| Item Dimensions (L x W x H) | 38 in x 21 in x 41.75 in |
| Material | Stainless Steel |
| Model | Push-Pull |
| NSF | No |
| Number of Shelves | 3 |
| Proposition 65 Warning | This product can expose you to wood dust and chemicals including chromium, which are known to the State of California to cause cancer. For more information, go to: www.P65Warnings.ca.gov. |
| Shelf Clearance (in) | 11-1/3 |
| Shelf Dimensions | 21 in x 33 in |
| Shipping Class | 100 |
| Shipping Dimensions | 42.5 × 26 × 40.5 in |
| Shipping Method | LTL |
| Shipping Weight | 125 lbs |
| Weight Capacity (lbs) | 700 |
Product Specification: Lakeside model 163421 is of welded stainless steel U-frame construction. Shelves are 18-gauge and U-frame is 1" x 1" x 1/8" angle stainless steel. Full-height tubular handle is hinged at the bottom to swing out for pulling action, and locks in upright position for pushing action. Optional on-board hitch bar system connects frame cross members to allow for towing of multiple carts. Casters are 5" (2 ea. fixed and 2 ea. swivel with brake) non-marking with cushion tread, fastened to reinforced 18-gauge stainless steel cross members for extra strength.
Durability Index
Collapse| Durability Index | |||||
| Maximum Weight | 300lbs / 135KG | 500lbs / 230KG | 700lbs / 320KG | 1000lbs / 450KG | 1500lbs / 680KG |
| Weight Visualization | 75 plates | 150 plates | 250 plates | 100 12oz. cans | 30 cases of wine |
| Vinyl Tile | |||||
| Indoor Concrete | |||||
| Ceramic Tile | |||||
| Carpet | |||||
| Outdoor Uneven | |||||
| Daily Hour Usage | Up to 3 | 4 to 9 | 9 to 12 | 10 to 18 | Up to 24 hours |
| Ideal Usage | Dining area bussing, set-up tray station, soiled dish station | Dining room bussing, set-up tray station, soiled dish station. | Receiving goods, moving loads for warewashing | Receiving dock and storage room, loading and moving dishes and flatware. | Casinos and correctional facilities, receiving dock and warehousing |
| Legs Steel Gauge | 20 | 16 | 1/8" Stainless Steel | 1/8" Stainless Steel | 1" Square or 1/8" Stainless Steel |
| Shelf Steel Gauge | 22 | 20 | 18 | 14 | 14 |
| Caster Size | 3-1/2” to 4” | 4” to 5” | 5" to 8” | 5" to 8” | 6" to 8” |
