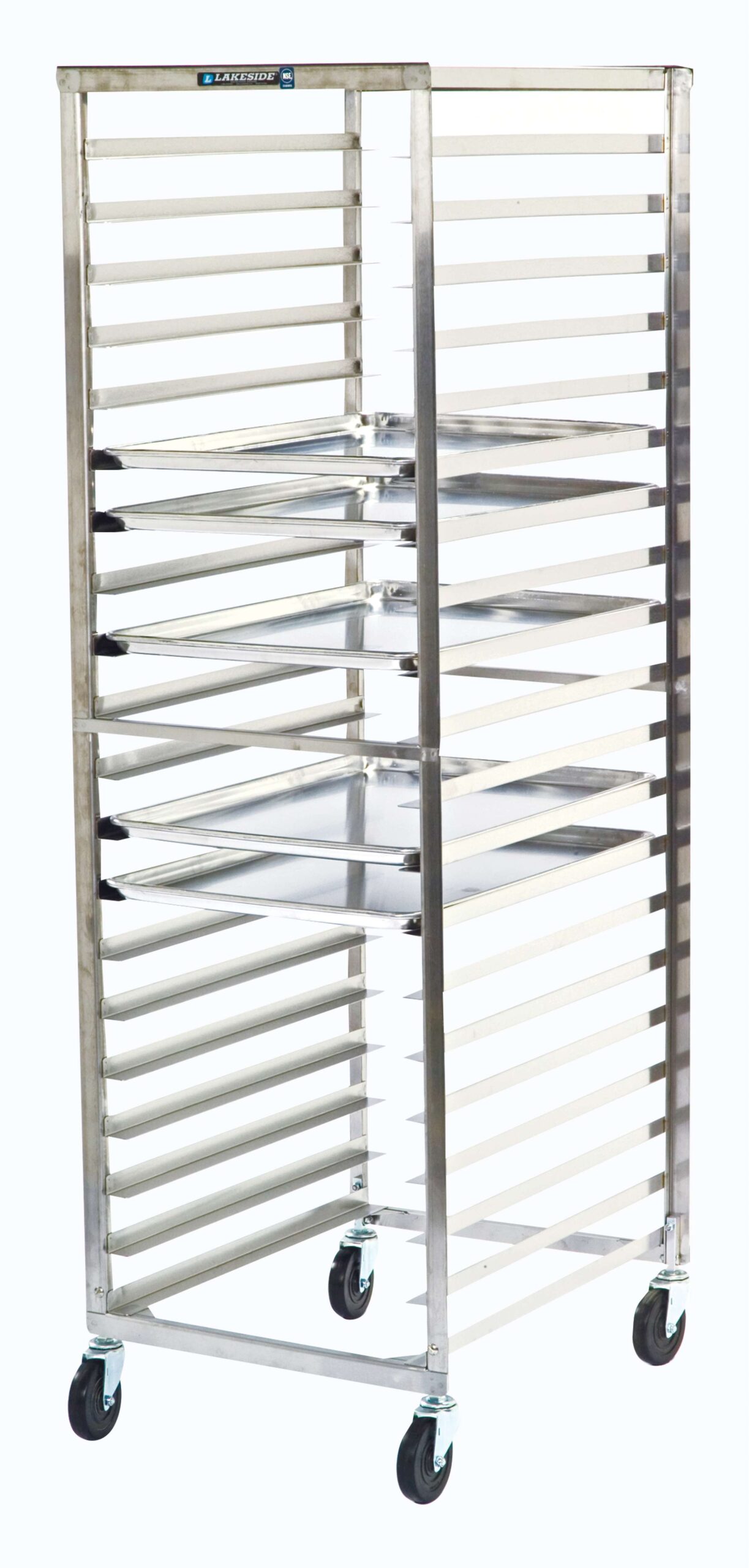

Economy Series Narrow Opening Sheet Pan Racks and Tray Racks Include 4" Corner Stem Casters and the Choice of Channel Style Ledges or Angle Style Ledges
Durability and storage efficiency will have you relying on these racks for years! Economy series narrow opening sheet pan and tray racks include 4" corner stem casters and the choice of Channel Style Ledges or angle style ledges. The Lakeside 136 Sheet Pan Rack has a 20 full-size pan capacity and angle style ledges with 3" spacing. The angle style ledges are welded to the uprights to withstand continual use, tie bars are also welded to the uprights for added integrity. This unit has 4-inch all swivel, corner mount stem type casters for upright stability and increased maneuverability. All-welded stainless steel construction is easy to clean and sanitize and provides longer life. Ships fully assembled for immediate use right out of the carton, made in the USA. Choose an angle style ledge when your pans are slightly smaller than 18" (457).
Current availability as soon as 8 business days

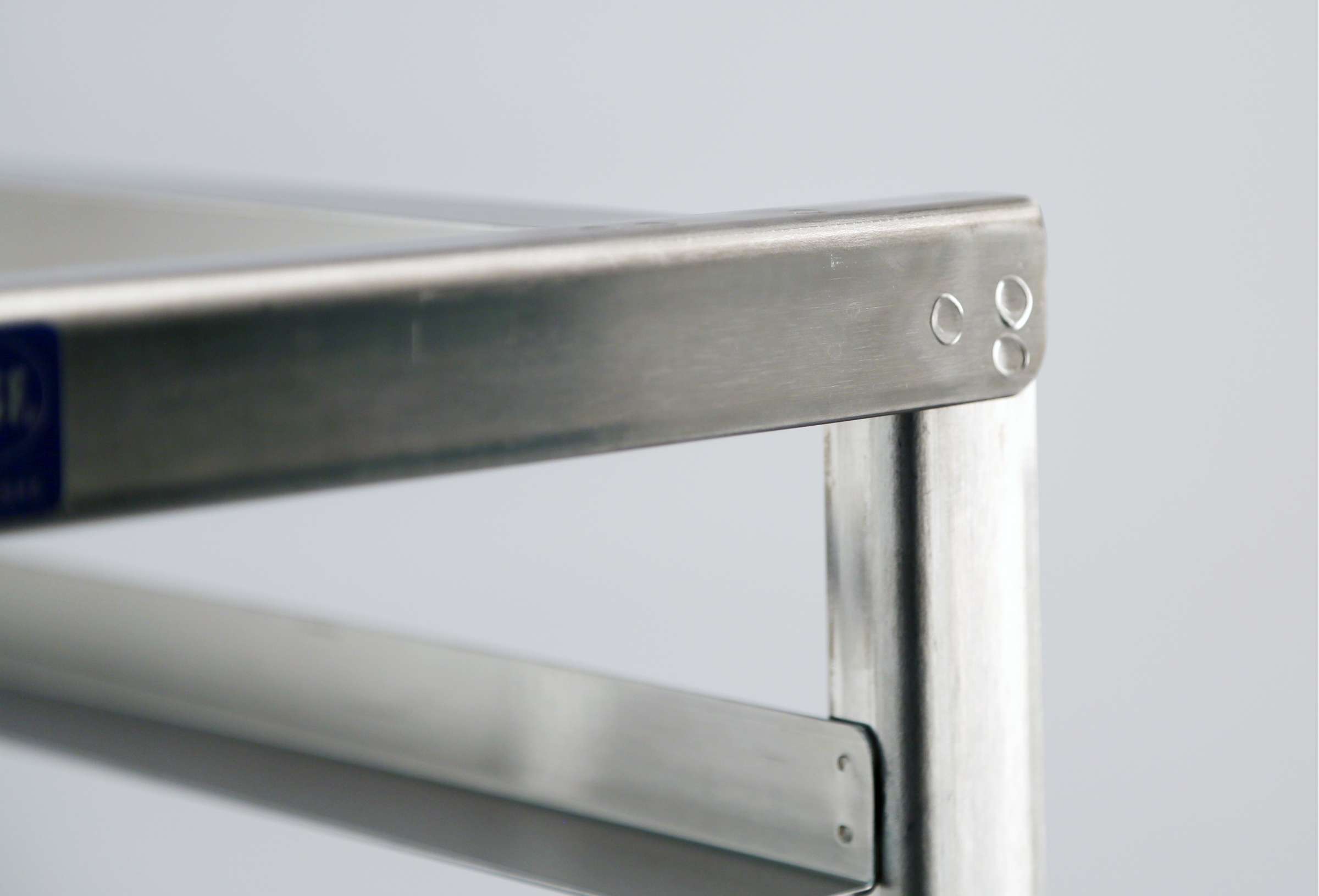

- Angle style ledges are welded to the uprights to withstand continual use, tie bars are also welded to the uprights for added integrity.
- Angle style ledges are 1-5/16" Wide with 3" Spacing for 20 Full Size/40 Half Size Sheet Pans.
- All-welded stainless steel construction is easy to clean and sanitize and provides longer life.
- 4" all swivel corner mount stem type casters for upright stability and increased maneuverability.
- Ships fully assembled, made in the USA.
- Choose an angle style ledge when your pans are slightly smaller than 18" (457).
- Narrow Opening
Specifications
Collapse| Brand | Lakeside |
|---|---|
| Caster Size (in) | 4 |
| Caster Type | All swivel, Corner Stem Mount |
| Country of Origin | US |
| Item Dimensions (L x W x H) | 27.25 in x 21 in x 67.5 in |
| Ledge Spacing (in) | 3 |
| Ledge Type | Angle |
| Material | Stainless Steel |
| Model | Economy |
| NSF | Yes |
| Pan Capacity | 20 |
| Proposition 65 Warning | This product can expose you to wood dust and chemicals including chromium, which are known to the State of California to cause cancer. For more information, go to: www.P65Warnings.ca.gov. |
| Shipping Class | 125 |
| Shipping Dimensions | 28.5 × 21.5 × 69.5 in |
| Shipping Method | LTL |
| Shipping Weight | 74 lbs |
Product Specification: Unit shall be of all-welded construction and shall accommodate 18” x 26” pans or 14” x 18” pans and trays. Corner upright legs, and top and bottom frame shall be of .104 x 3/4” x 1-1/4” angle stainless steel. Pan/tray ledges shall be of 16-gauge stainless steel and shall be welded to upright legs front and back. Top and bottom corner frame joints shall have 20-gauge reinforcing gussets welded in place for extra rigidity. Unit shall have a 16-gauge x 1/2” x 1/2” angle stainless steel horizontal brace welded to upright legs at open ends front and back. Casters shall be 4” diameter swivel stem type, corner mounted to corner legs for upright stability. Unit shall be NSF listed.
