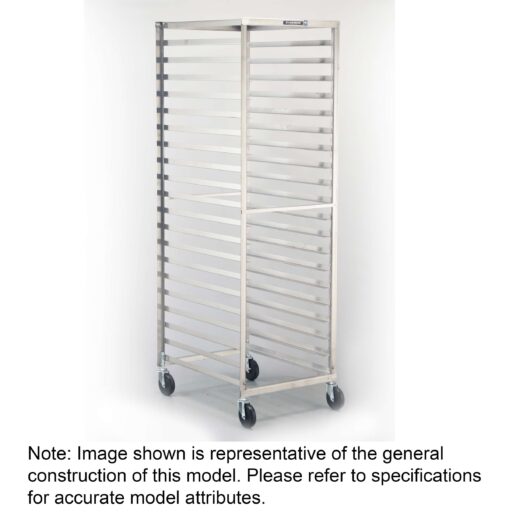

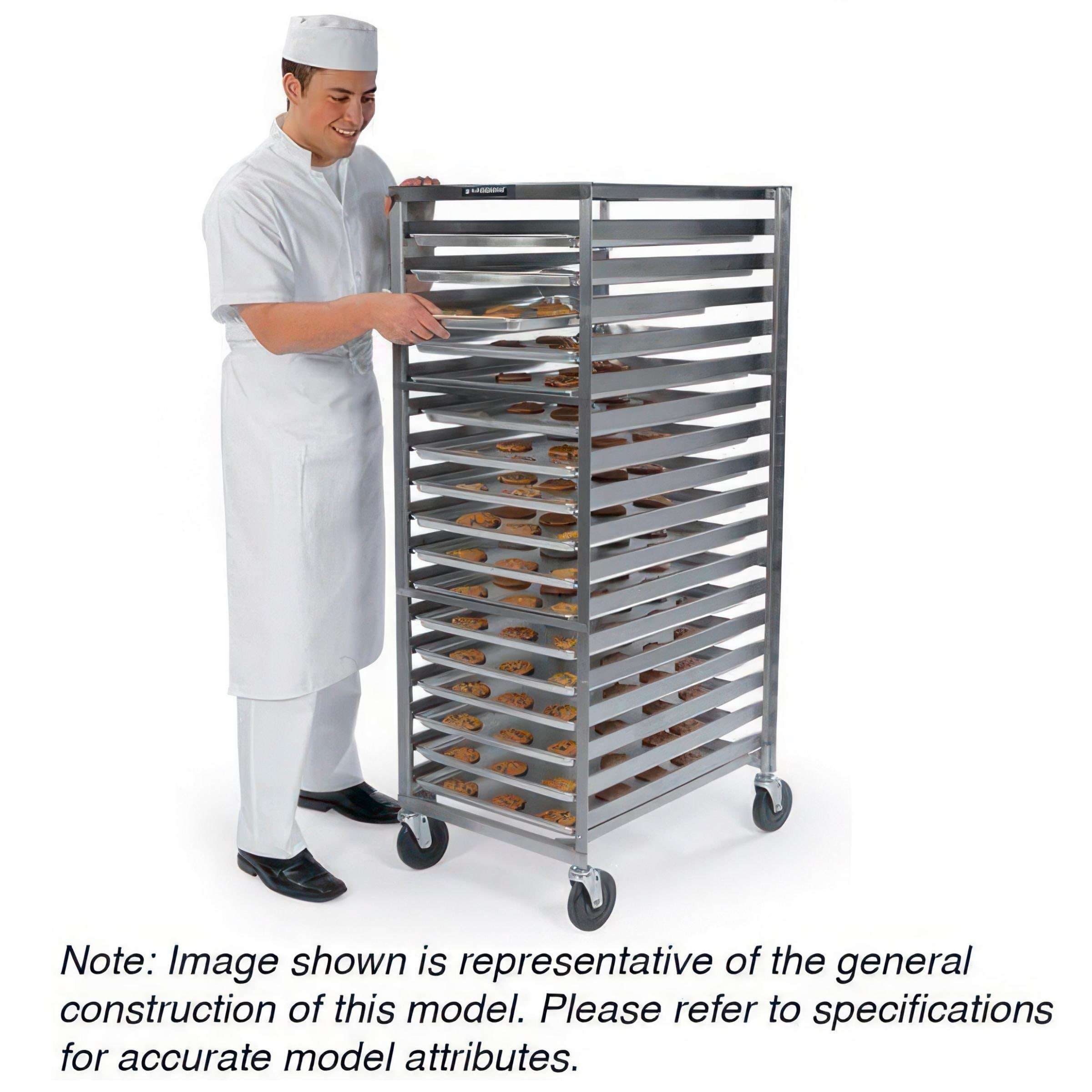

Standard Series Narrow Opening Sheet Pan Racks and Tray Racks Include 5" Corner Stem or 5" Recessed Plate Casters and the Choice of Channel Style Ledges or Angle Style Ledges
Durability and storage efficiency will have you relying on these racks for years! The Lakeside 127 Sheet Pan Rack has a 24 full-size pan capacity and channel style ledges with 1-7/16" spacing. The channel style ledges are welded to the uprights to withstand continual use, tie bars are also welded to the uprights for added integrity. This unit has 5" all swivel corner mount stem type casters for upright stability and increased maneuverability. All-welded stainless steel construction is easy to clean and sanitize and provides longer life. Ships fully assembled for immediate use right out of the carton, made in the USA. Channel style ledges allow for more tray storage- up to 41 full size pans.
Current availability as soon as 8 business days
- Channel style ledges are welded to the uprights to withstand continual use, tie bars are also welded to the uprights for added integrity.
- Channel Style Ledges are 1/2" Wide with 1-7/16" Spacing for 24 Full Size/48 Half Size Sheet Pans.
- All-welded stainless steel construction is easy to clean and sanitize and provides longer life.
- 5" all swivel corner mount stem type casters for upright stability and increased maneuverability.
- Ships fully assembled, made in the USA.
- Choose a channel style ledge for extra capacity.
- Narrow Opening
Specifications
Collapse| Brand | Lakeside |
|---|---|
| Caster Size (in) | 5 |
| Caster Type | All swivel, Corner Stem Mount |
| Country of Origin | US |
| Item Dimensions (L x W x H) | 29.25 in x 21 in x 43.5 in |
| Ledge Spacing (in) | 1.4375 |
| Ledge Type | Channel |
| Material | Stainless Steel |
| Model | Standard |
| NSF | Yes |
| Pan Capacity | 24 |
| Proposition 65 Warning | This product can expose you to wood dust and chemicals including chromium, which are known to the State of California to cause cancer. For more information, go to: www.P65Warnings.ca.gov. |
| Shipping Class | 125 |
| Shipping Dimensions | 28.38 × 21.25 × 62 in |
| Shipping Method | UPS/FedEx Oversized |
| Shipping Weight | 56 lbs |
Product Specification: Unit shall be of all-welded construction and shall accommodate 18” x 26” (457 x 660 mm) pans or 14” x 18” (356 x 457 mm) pans and trays. Corner upright legs and top and bottom frame shall be of .104 x 3/4” x 1-1/4” angle stainless steel. Pan/tray ledges shall be of 16-gauge stainless steel and shall be welded to upright legs front and back. Top and bottom corner frame joints shall have 16-gauge reinforcing gussets welded in place for extra rigidity. Unit shall have a 16-gauge 1/2” x 1/2” angle stainless steel horizontal brace welded to upright legs at open ends front and back. Casters shall be 5” (127 mm) diameter swivel stem type, mounted to corner legs for upright stability. Unit shall be NSF listed.
Manuals & Documents
CollapseOptions & Accessories
CollapseStandard products are available in a wide variety of common caster and bumper configurations or commercial grade vinyl and laminate finishes. These options along with accessories are listed below. Please contact us if you would like to further modify or customize a product to meet your needs.
Factory Installed Options
2 brake and 2 no brake casters
Custom
CollapseChoose from a wide selection of proven product designs that can also be modified or customized to meet specific applications. Our experienced customer service team is ready to help with a quote today!
Design Your Own
