The convenience of heating both plates and pellets in one unit, where separate plate and pellet units are not practical – to save time and energy.
The convenience of heating both plates and pellets in one unit, where separate plate and pellet units are not practical – to save time and energy. The Lakeside 7500 Duo-Therm Mobile Plate and Pellet Dispenser has (2) heated NSF self-leveling dispensers for (50) 7 to 10 1/4-in. plates/pellets. The convected forced air heating ensures even heat transfer to all pellets to ensure each will maintain safe food temperatures. This unit’s unique lid design holds in heat without gaskets, so plates and pellets maintain heat. The dispenser cabinet is fully insulated to conserve energy. This Duo-Therm™ model has two heated compartments, one for plates and one for pellets, which are independently controlled and have an automatic hi-temp shut-off. The self-leveling, field adjustable dispensers are removable for convenient cleaning and adjustment. Dispensers are self-lubricating for smooth operation. The unit's thermostat temperature ranges from 250F-290F. All 5” swivel casters, 2 with brake, allow easy maneuverability. The stainless steel construction increases durability and is easy to clean and sanitize.
Each dispenser accommodates a 27” stack of dishes or pellets with a diameter of 7 to 10 1⁄4 inches.
This model's push handles both metal and plastic pellet systems are for added flexibility/control. Nobody beats Lakeside’s lead times! Made in the USA.
Current availability as soon as 10 business days
- Convected forced air heating ensures even heat transfer to all plates and pellets to ensure each will maintain safe food temperatures.
- Unique lid design holds in heat without gaskets, so plates and pellets maintain heat.
- Dispenser cabinet is fully insulated to conserve energy.

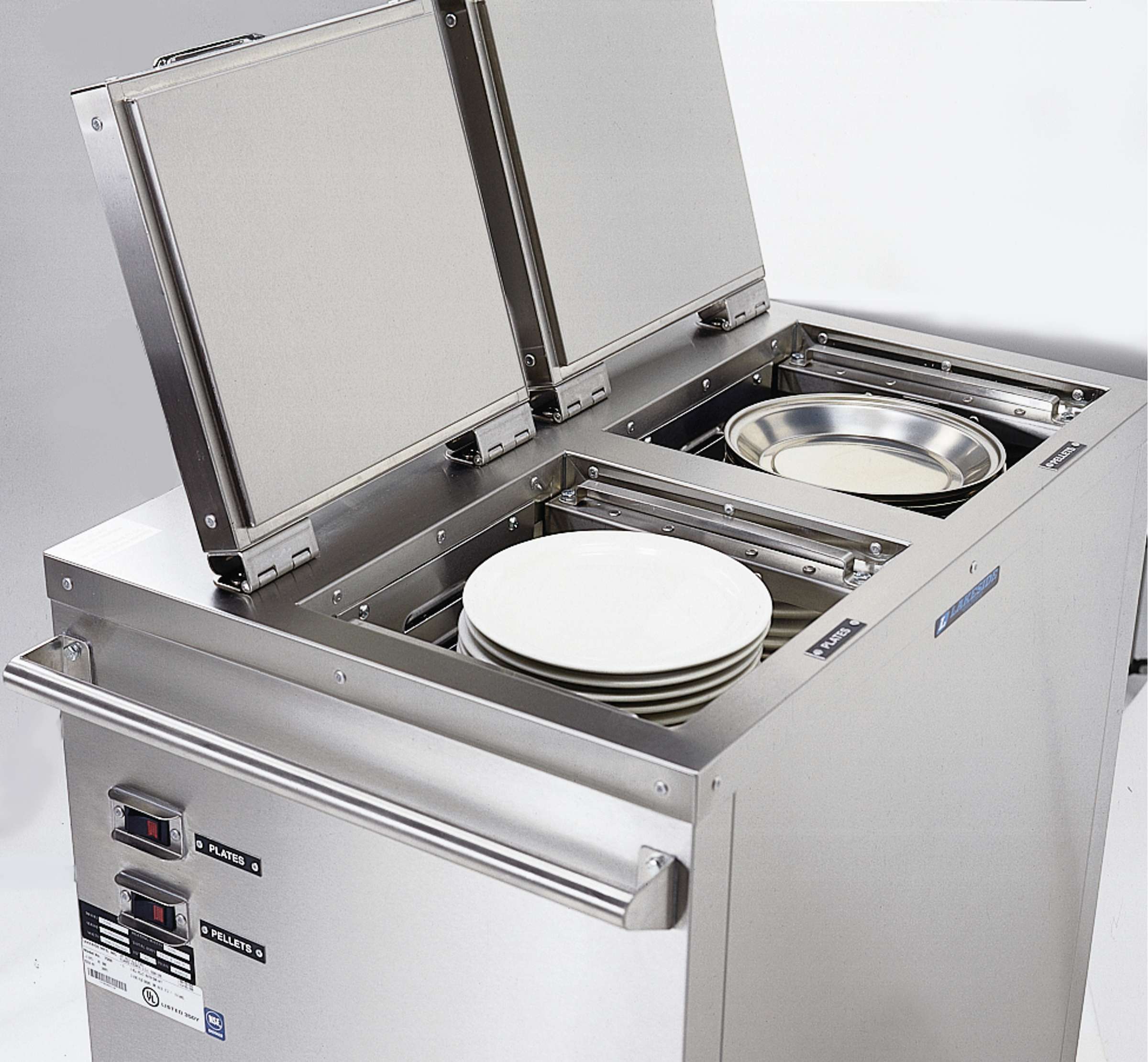

- Duo-Therm™ Model 7500 has two heated compartments, one for plates and one for pellets, which are independently controlled and have an automatic hi-temp shut-off.
- Self-leveling, field adjustable dispensers are removable for convenient cleaning and adjustment. Dispensers are self-lubricating for smooth operation.
- The unit's thermostat temperature ranges from 250F-290F.
- All 5” swivel casters, 2 with brake, allow easy maneuverability.
- Stainless steel construction increases durability, easy to clean and sanitize.
- Each dispenser accommodates a 27” stack of dishes or pellets with a diameter of 7 to 10 1⁄4”.
- Push handles both metal and plastic pellet systems for added flexibility/control.
Specifications
Collapse| Adjust-a-Fit | No |
|---|---|
| Brand | Lakeside |
| Caster Size (in) | 5 |
| Caster Type | 2 Ea. w/Brake, All swivel |
| Country of Origin | US |
| Electrical Amps | 17.2 |
| Electrical Hertz | 60Hz |
| Electrical Volts | 208VAC, 220VAC |
| Electrical Watts | 3200 |
| Heating | Convection Heated |
| Item Dimensions (L x W x H) | 36 in x 24 in x 42.75 in |
| Model | Convection |
| NSF | Yes |
| Number of Stacks | 2 |
| Plates / Pellets | Pellets, Plates |
| Power Source | Hard-Wired |
| Proposition 65 Warning | This product can expose you to wood dust and chemicals including chromium, which are known to the State of California to cause cancer. For more information, go to: www.P65Warnings.ca.gov. |
| Shipping Class | 125 |
| Shipping Dimensions | 38.5 × 38.5 × 50 in |
| Shipping Method | LTL |
| Shipping Weight | 285 lbs |
| UL Listed | Yes |
Product Specification: Cabinet: Exterior shall be constructed on 18-gauge 300 Series stainless steel. Inner wall of cabinet shall be constructed of .063 high-strength aluminum. All sides and top of cabinet shall be insulated with fiberglass for heat retention and energy efficiency. Cabinet lids shall feature hat channel design that does not require a gasket. Unit shall feature two separately controlled interior compartments, each with a self-leveling dispenser. Each compartment shall have a dedicated heating system featuring separate heater element, forced air fan, thermostatic control, and on/off switch. The heating system shall be thermostatically controlled, using forced air with a 3200-watt element to heat each cabinet interior compartment. The plate compartment shall have a thermostatically controlled temperature range of 135°-175°F. The pellet compartment shall have a thermostatically controlled temperature range of 250°-290°F. Unit shall be 208/220-240 VAC, 60 Hz and shall feature a 6’ long 20 amp power cord with NEMA 6-20P plug. Cabinet shall be mounted on four 5” extra-load swivel casters (two with brake) with non-marking cushion tread wheel. Unit shall be UL and NSF listed.

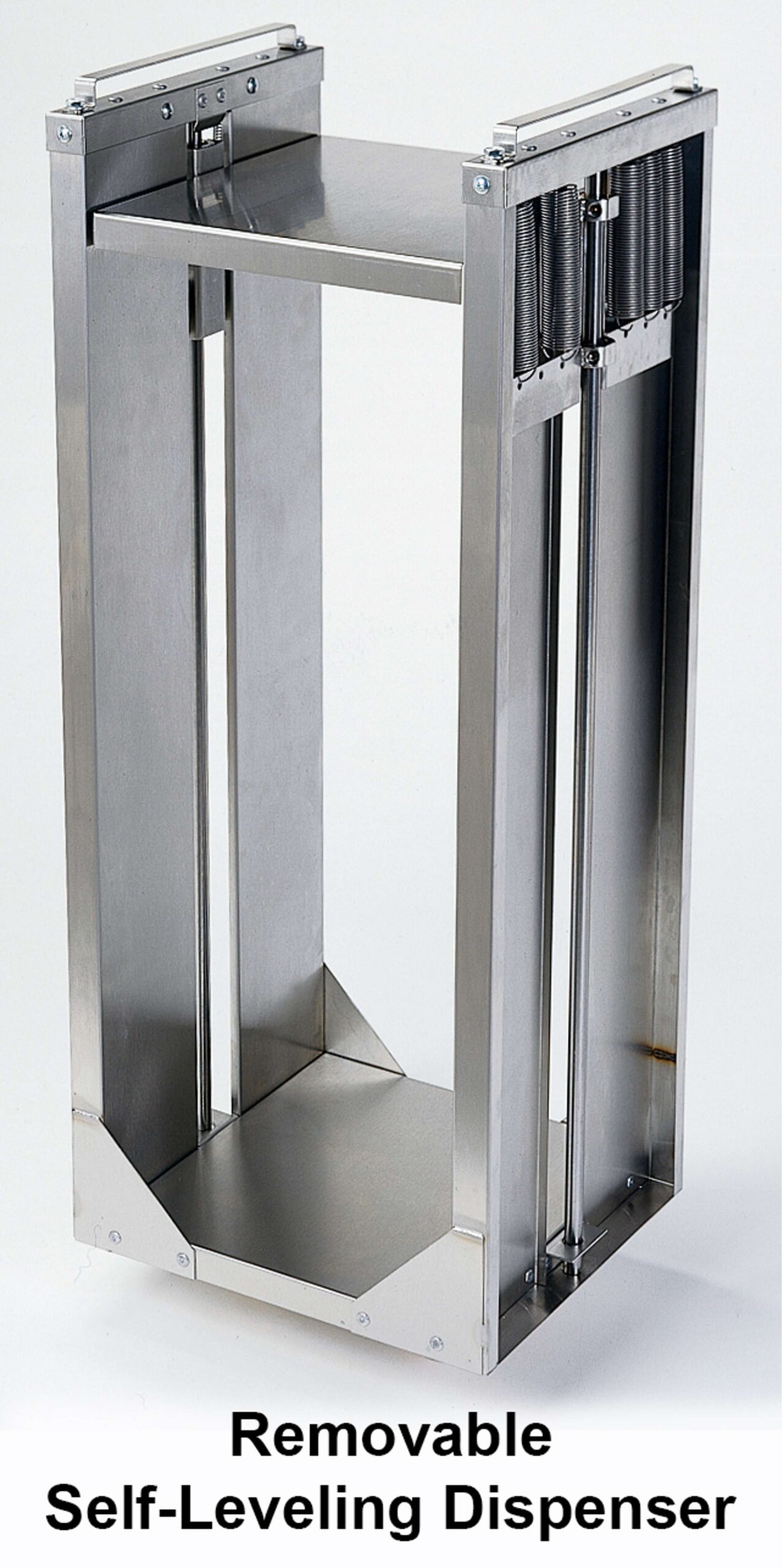

Dispensers: Self-leveling dispensers shall be constructed of stainless steel with self-lubricating bearings that ride over vertical guide rods to prevent carriage binding. Self-leveling tension shall be adjusted without tools by hooking or unhooking tension springs from the carriage. Carriage shall have a vertical movement of 24”, and shall accommodate a 27” high stack of pellet bases or dishes that are between 7” and 10-1/4” in diameter. Dispensers shall feature lift-out handles for easy removal from cabinet for cleaning and adjustment.
